Capacity
5t
Maximum lift
Boom
4.88m
Maximum boom extension
Width
1.40m
Overall width
Overview

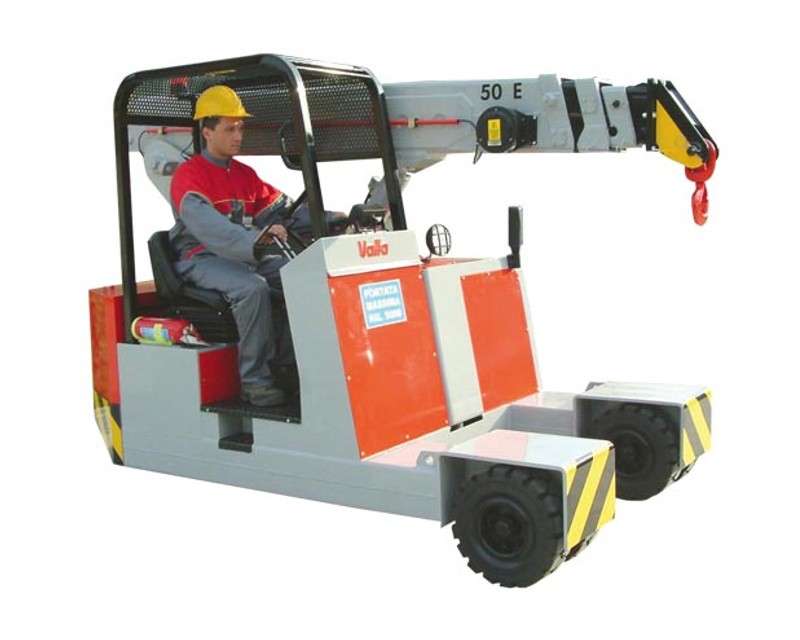

Valla 50E electric pick and carry crane
The Valla 50E is a 5 tonne electric pick and carry crane with fume-free operation. It is compact and versatile, which makes it ideal for factory floors and other commercial and industrial sites.
It is available on short and long term hire on sites across the UK.
Need an operator?
If you do not have an operator for the Valla 50E, we can supply one.
Hire or contract lift?
We can supply the Valla 50E on a hire only basis, or carry out the lifting operations for you on an insured contract lift basis.
Load charts

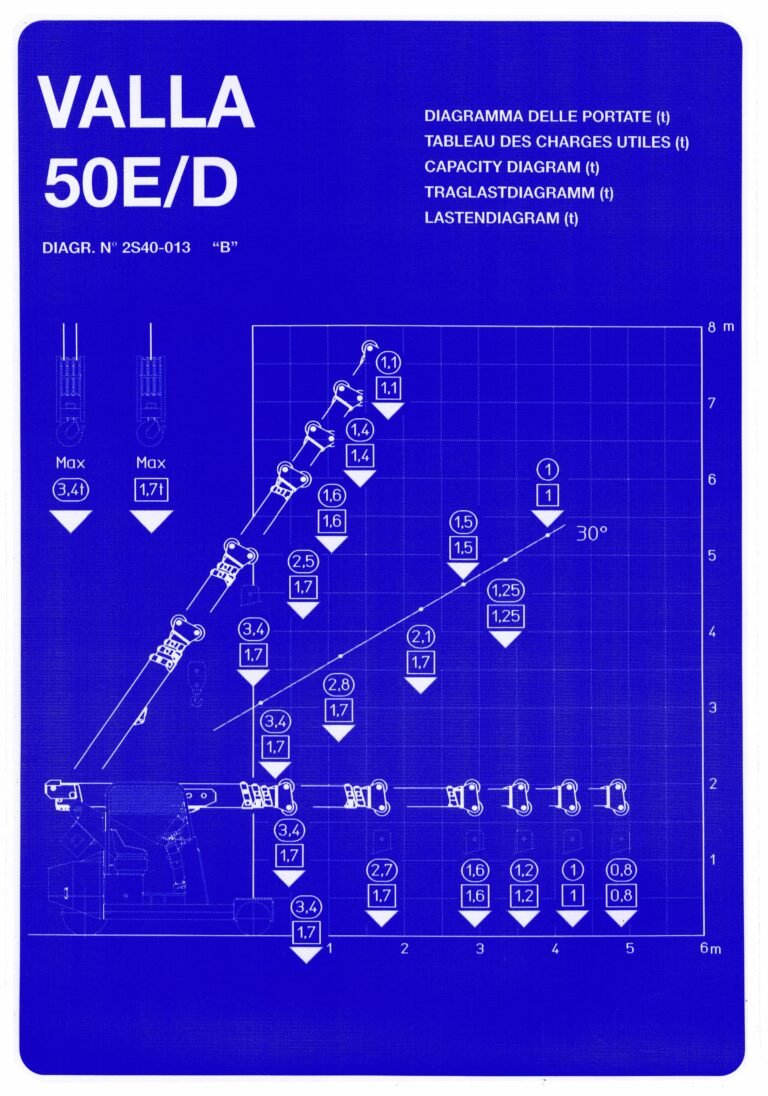

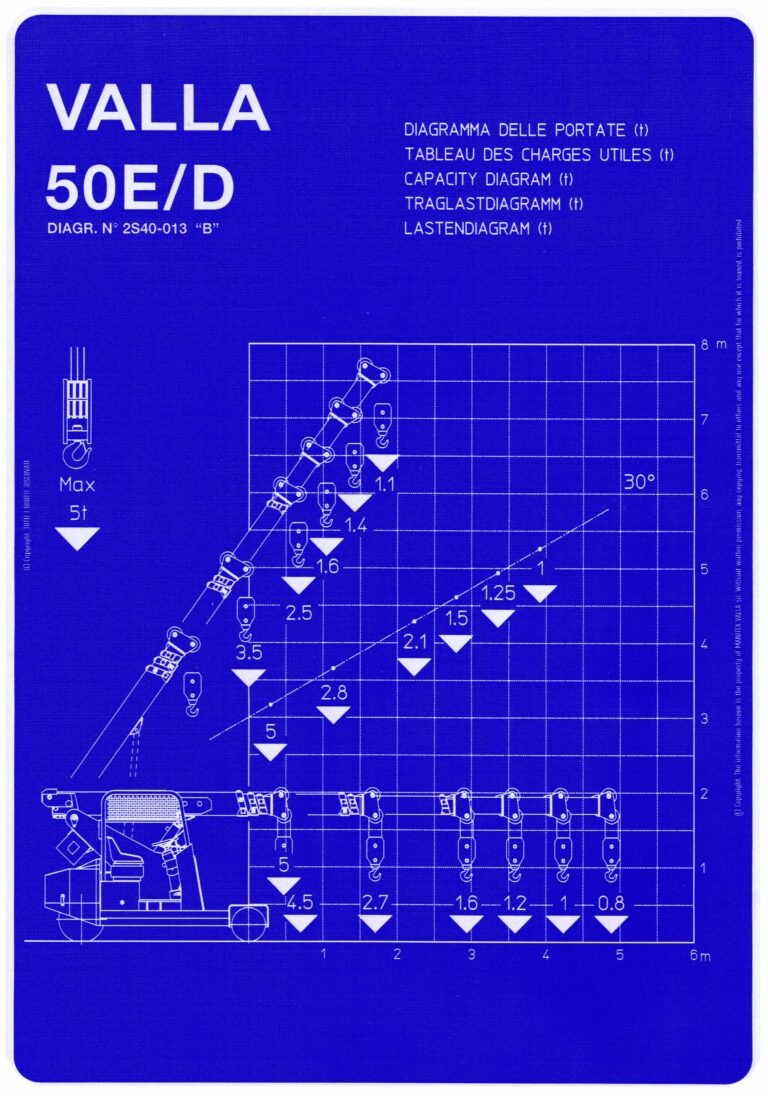

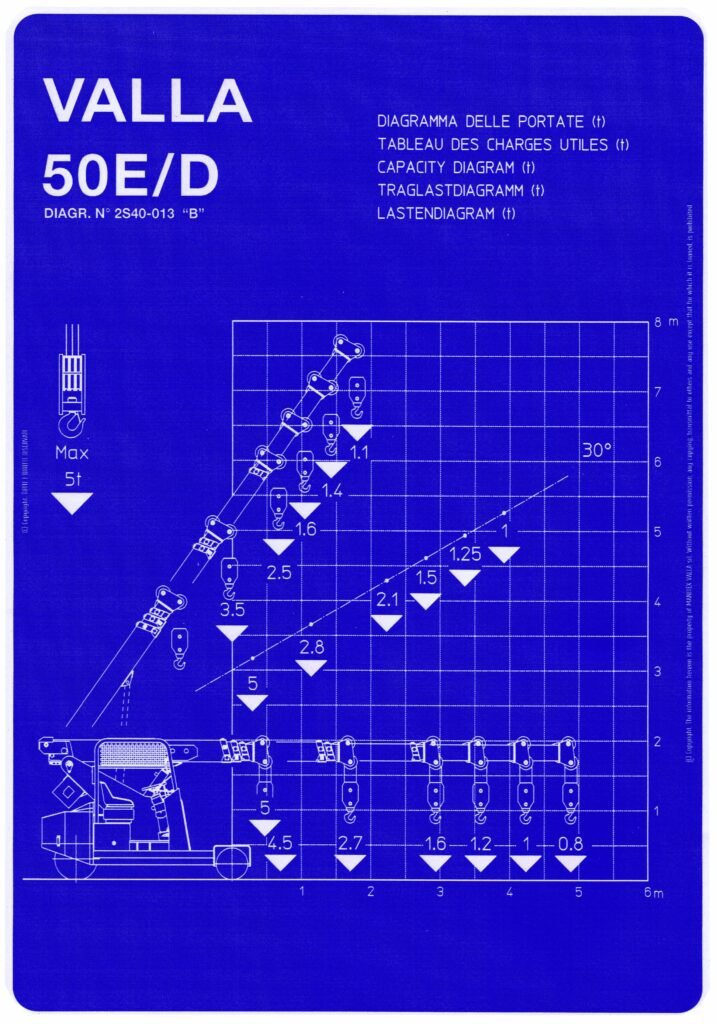

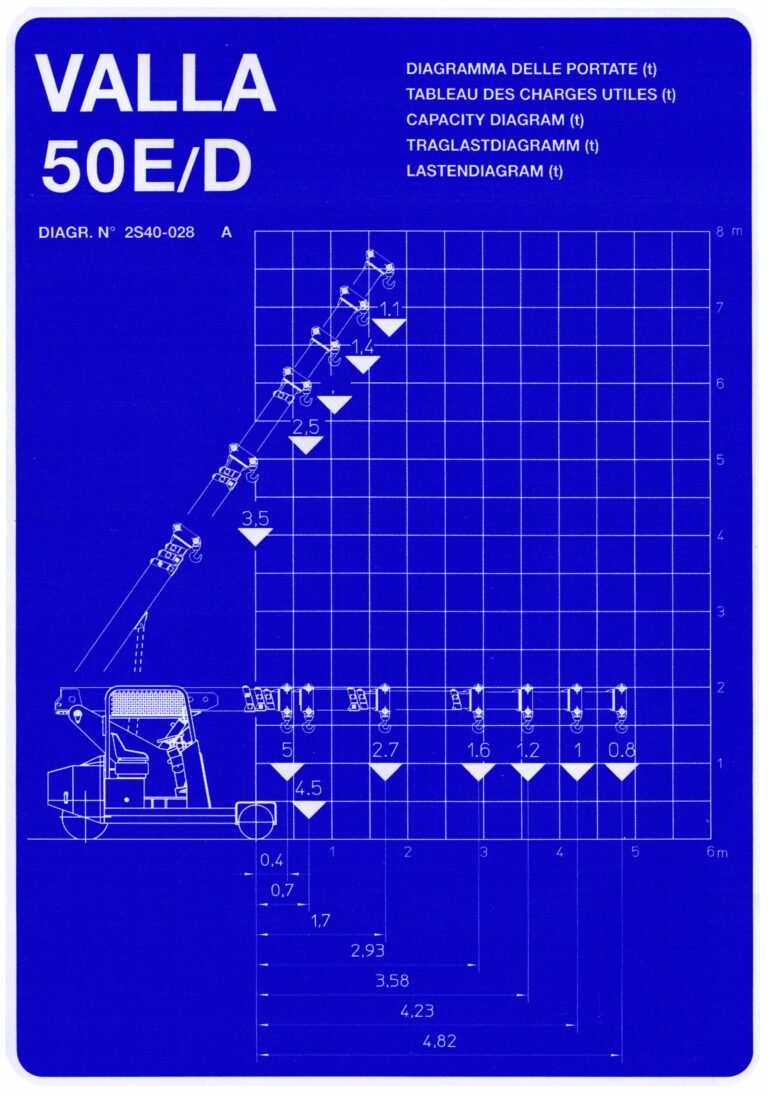

Valla 50E load charts
As standard, the Valla 50E comes without a winch, but one can be fitted if you need it. Tap a chart to see it full size.
Specification
Valla 50E specification
Figures from the manufacturer’s specification sheet. Can’t find what you need? Get in touch and we will answer your questions.
Maximum capacity
5t
Boom extension
4.88m
Width
1.40m
Length
3.03m
Height
2.07m
Weight
5.5t
-
Non-marking tyres
-
Electric (battery) power, fume-free
-
Seated operation
-
Main boom with 3 hydraulic sections
-
Visual and audible load indicator
-
Available with or without a winch
Hire or contract lift
Crane hire or contract lift?
If you do not have an appointed person to plan the lift and the right insurance in place, you need a contract lift. Not sure? Get in touch and we will help you work it out.
| What is included | Crane hire | Contract lift |
|---|---|---|
| Crane with operator | ||
| Method statement and risk assessment | ||
| Qualified appointed person to plan the lift | ||
| Qualified slinger signaller | ||
| Qualified lift supervisor | ||
| Insurance for damage to the crane | ||
| Insurance for damage to goods lifted | ||
| Legal responsibility for damage or injury |
