Electric pick and carry crane
Ormig 10tmE
The Ormig 10tmE is a 10 tonne electric pick and carry crane with a 6.33m boom extension, available on hire with or without an operator, or as part of a contract lift.

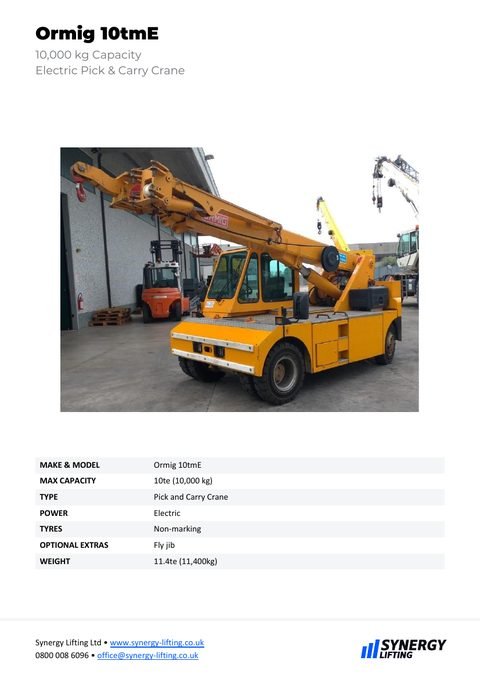

Spec sheet
Download the Ormig 10tmE spec sheet
Ormig 10tmE
Download the manufacturer’s specification sheet (PDF · 5 pages · 0.9MB).
Photos of our Ormig 10tmE and how to hire it are on the Ormig 10tmE crane hire page.
Key figures
Ormig 10tmE key figures
- Maximum capacity
- 10 tonnes
- Maximum boom extension
- 6.33m
- Fly jib
- 2.8 tonnesTo 8.5m
- Weight
- 11.4 tonnes
- Width
- 2.21m
- Power
- ElectricNon-marking tyres
Specification
Ormig 10tmE specification
| Item | Specification |
|---|---|
| Manufacturer | Ormig |
| Model | 10tmE |
| Type | Electric pick and carry crane |
| Maximum capacity | 10 tonnes |
| Maximum boom extension | 6.33m |
| Boom angle | -9 to +55 degrees |
| Fly jib | 2.8 tonnes maximum, boom extension to 8.5m, fly jib angle -6.5 to +45 degrees |
| Optional extras | Fly jib |
| Height | 2.46m, or 2.17m with the light removed |
| Length | 5.35m |
| Width | 2.21m |
| Turning radius | 4.4m |
| Weight | 11.4 tonnes |
| Power | Electric |
| Tyres | Non-marking |
| Chassis | Six wheel high quality steel structure with internal counterweights |
| Wheels | 4 superelastic wheels at the front, 2 superelastic wheels at the rear |
| Traction | Electric, 24kW, 80V |
| Hydraulic system | Single section 22cc electric pump, 280 bar |
| Brakes | Service brake and hydraulic parking brake on the front wheels |
| Steering | Rear steering by hydraulic motor |
| Boom control | Electro-hydraulic joystick inside the cabin |
| Drive control | Pedals and steering wheel inside the cabin |
Specifications are taken from our own specification sheet for this machine, based on the manufacturer data, and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Load charts
Ormig 10tmE load charts
The Ormig 10tmE can be used with or without its hydraulic fly jib extension, which fits to the side of the boom and is offset hydraulically to increase the maximum reach and lift height. Tap a chart to see it full size.
Compare
Ormig 10tmE compared with similar cranes
| This craneOrmig 10tmE | Valla 120E | Valla 75E | Valla 50E | |
|---|---|---|---|---|
| Maximum capacity | 10 tonnes | 12 tonnes | 7.5 tonnes | 5 tonnes |
| Maximum boom extension | 6.33m | 7.2m | 5.4m | 4.88m |
| Fly jib | 2.8 tonnes | Not stated | Not stated | Not stated |
| Width | 2.21m | 2.10m | 1.74m | 1.40m |
| Weight | 11.4 tonnes | 14 tonnes | 6.1 tonnes | 5.5 tonnes |
| Turning radius | Not stated | 4.05m | 3.62m | 2.75m |
| Power | Electric | Electric | Electric | Electric |
