Electric pick and carry crane
Valla 120E
The Valla 120E is a 12 tonne electric pick and carry crane with a 7.2m boom extension, available on hire with or without an operator, or as part of a contract lift.
Spec sheet

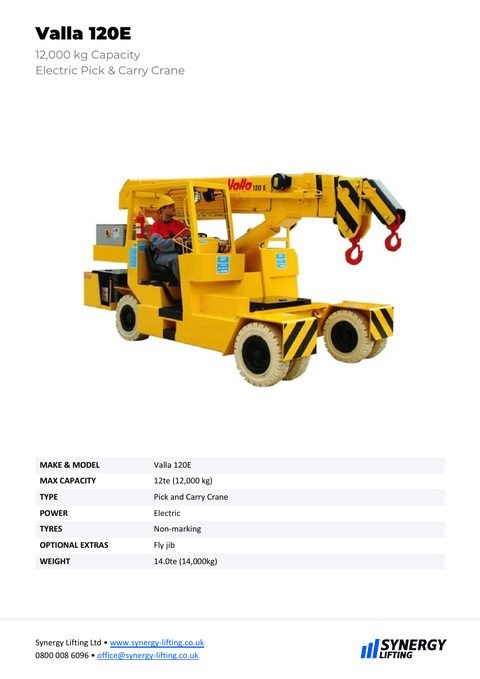

Download the Valla 120E spec sheet
Valla 120E
Download the manufacturer’s specification sheet (PDF · 4 pages · 0.3MB).
Photos of our Valla 120E and how to hire it are on the Valla 120E crane hire page.
Key figures
Valla 120E key figures
- Maximum capacity
- 12 tonnes
- Maximum boom extension
- 7.2m
- Weight
- 14 tonnes
- Width
- 2.10m
- Turning radius
- 4.05m
- Power
- ElectricNon-marking tyres
Specification
Valla 120E specification
| Item | Specification |
|---|---|
| Manufacturer | Valla |
| Model | 120E |
| Type | Electric pick and carry crane |
| Maximum capacity | 12 tonnes |
| Maximum boom extension | 7.2m |
| Boom angle | 0 to 54 degrees |
| Optional extras | Fly jib |
| Height | 2.32m |
| Length | 4.30m |
| Width | 2.10m |
| Turning radius | 4.05m |
| Weight | 14 tonnes |
| Power | Electric |
| Tyres | Non-marking |
| Chassis | Six wheel high quality steel structure with internal counterweights |
| Wheels | 4 superelastic wheels at the front, 2 superelastic wheels at the rear |
| Traction | Rear traction, DC electric motor 12kW |
| Hydraulic system | Powered by a DC electric motor, 16kW, maximum pressure 220 bar |
| Brakes | 2 brake drums on the front axle and 2 brake drums on the rear axle |
| Steering | Rear steering by hydraulic motor on the fifth wheel |
| Boom control | Electro-hydraulic joystick inside the cabin |
| Drive control | Pedals and steering wheel inside the cabin |
Specifications are taken from our own specification sheet for this machine, based on the manufacturer data, and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.

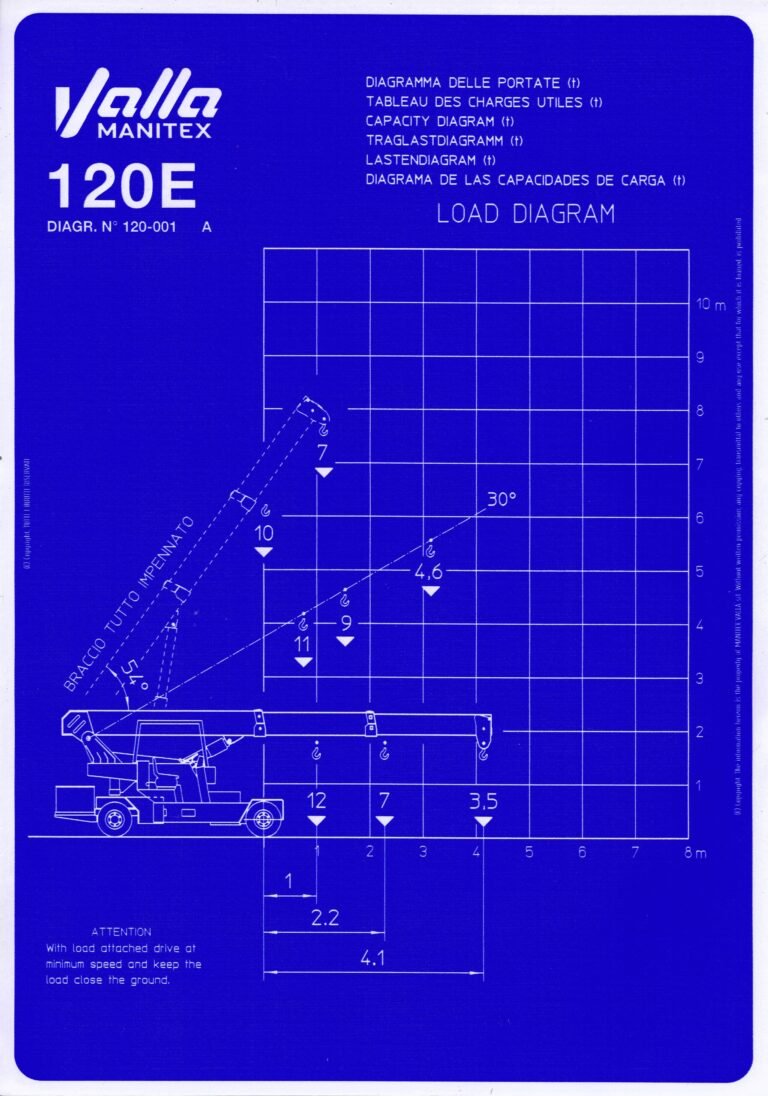

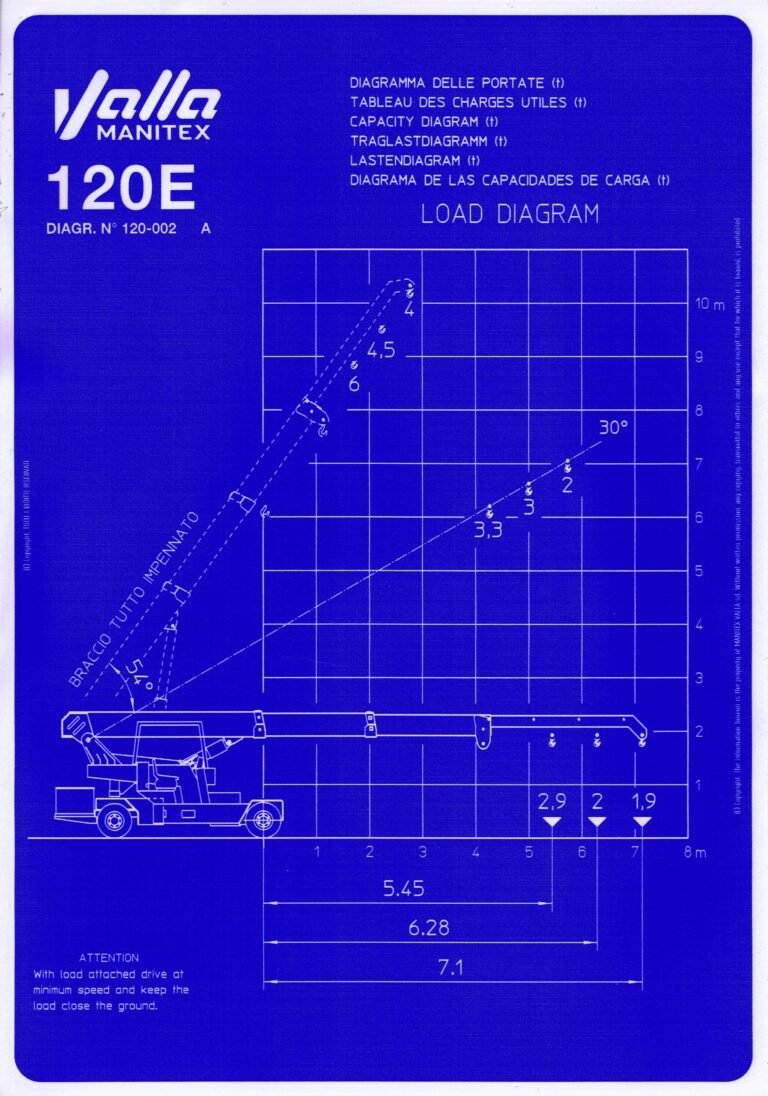

Load charts
Valla 120E load charts
The Valla 120E can be used with or without its fly jib extension, which fits to the side of the boom and is extended by hand to increase the maximum reach and lift height. Tap a chart to see it full size.
Compare
Valla 120E compared with similar cranes
| This craneValla 120E | Ormig 10tmE | Valla 75E | Valla 50E | |
|---|---|---|---|---|
| Maximum capacity | 12 tonnes | 10 tonnes | 7.5 tonnes | 5 tonnes |
| Maximum boom extension | 7.2m | 6.33m | 5.4m | 4.88m |
| Fly jib | Not stated | 2.8 tonnes | Not stated | Not stated |
| Width | 2.10m | 2.21m | 1.74m | 1.40m |
| Weight | 14 tonnes | 11.4 tonnes | 6.1 tonnes | 5.5 tonnes |
| Turning radius | 4.05m | Not stated | 3.62m | 2.75m |
| Power | Electric | Electric | Electric | Electric |
