Capacity
12t
Maximum lift
Boom
7.2m
Maximum boom extension
Width
2.10m
Overall width
Overview

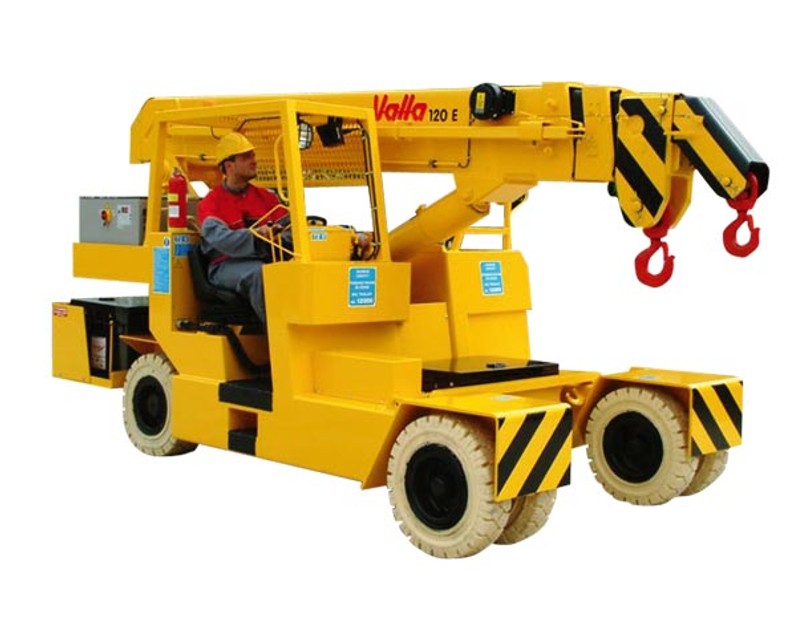

Valla 120E electric pick and carry crane
The Valla 120E is a 12 tonne electric pick and carry crane with fume-free operation. It is compact and versatile, which makes it ideal for factory floors and other commercial and industrial sites.
It is available on short and long term hire on sites across the UK.
Need an operator?
If you do not have an operator for the Valla 120E, we can supply one.
Hire or contract lift?
We can supply the Valla 120E on a hire only basis, or carry out the lifting operations for you on an insured contract lift basis.

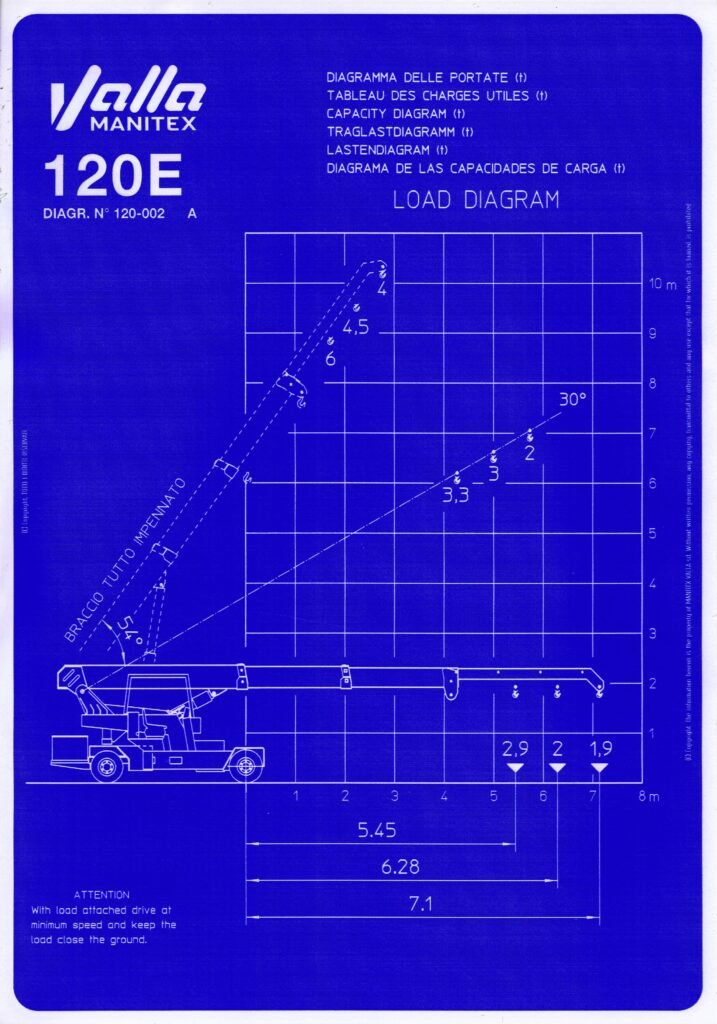

Load charts
Valla 120E load charts
The Valla 120E can be used with or without its fly jib extension, which fits to the side of the boom and is extended by hand to increase the maximum reach and lift height. Tap a chart to see it full size.
Specification
Valla 120E specification
Figures from the manufacturer’s specification sheet. Can’t find what you need? Get in touch and we will answer your questions.
Maximum capacity
12t
Boom extension
7.2m
Width
2.10m
Length
4.30m
Height
2.32m
Weight
14t
-
Non-marking tyres
-
Electric (battery) power, fume-free
-
Seated operation
-
Main boom with 3 hydraulic sections
-
Visual and audible load indicator
-
Available with or without the jib extension
Hire or contract lift
Crane hire or contract lift?
If you do not have an appointed person to plan the lift and the right insurance in place, you need a contract lift. Not sure? Get in touch and we will help you work it out.
| What is included | Crane hire | Contract lift |
|---|---|---|
| Crane with operator | ||
| Method statement and risk assessment | ||
| Qualified appointed person to plan the lift | ||
| Qualified slinger signaller | ||
| Qualified lift supervisor | ||
| Insurance for damage to the crane | ||
| Insurance for damage to goods lifted | ||
| Legal responsibility for damage or injury |
