Electric pick and carry crane
Valla 75E
The Valla 75E is a 7.5 tonne electric pick and carry crane with a 5.4m boom extension, available on hire with or without an operator, or as part of a contract lift.
Spec sheet

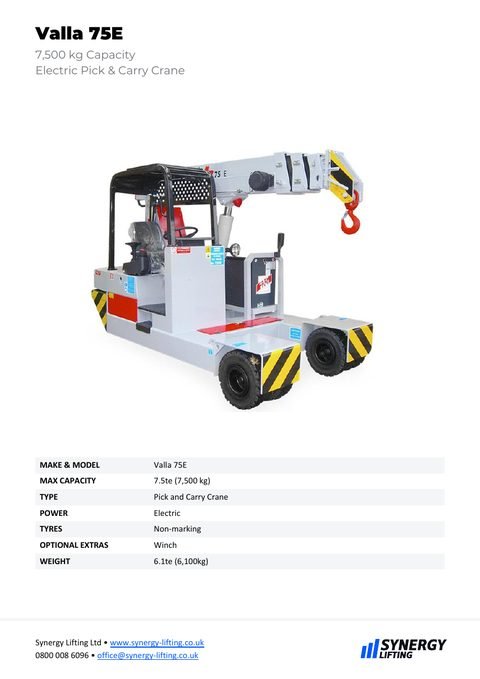

Download the Valla 75E spec sheet
Valla 75E
Download the manufacturer’s specification sheet (PDF · 4 pages · 0.3MB).
Photos of our Valla 75E and how to hire it are on the Valla 75E crane hire page.
Key figures
Valla 75E key figures
- Maximum capacity
- 7.5 tonnes
- Maximum boom extension
- 5.4m
- Weight
- 6.1 tonnes
- Width
- 1.74m
- Turning radius
- 3.62m
- Power
- ElectricNon-marking tyres
Specification
Valla 75E specification
| Item | Specification |
|---|---|
| Manufacturer | Valla |
| Model | 75E |
| Type | Electric pick and carry crane |
| Maximum capacity | 7.5 tonnes |
| Maximum boom extension | 5.4m |
| Boom angle | -4 to +52 degrees |
| Optional extras | Winch |
| Height | 2.29m |
| Length | 3.34m |
| Width | 1.74m |
| Turning radius | 3.62m |
| Weight | 6.1 tonnes |
| Power | Electric |
| Tyres | Non-marking |
| Chassis | Six wheel high quality steel structure with internal counterweights |
| Wheels | 4 superelastic wheels at the front, 2 superelastic wheels at the rear |
| Traction | Rear traction, DC electric motor 8kW |
| Hydraulic system | Powered by a DC electric motor, 5kW, maximum pressure 190 bar |
| Brakes | 2 brake discs on the front axle and 2 brake shoes on the rear axle |
| Steering | Rear steering, hydraulic cylinder between the chassis and the traction group |
| Boom control | Electro-hydraulic joystick inside the cabin |
| Drive control | Pedals and steering wheel inside the cabin |
Specifications are taken from our own specification sheet for this machine, based on the manufacturer data, and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.

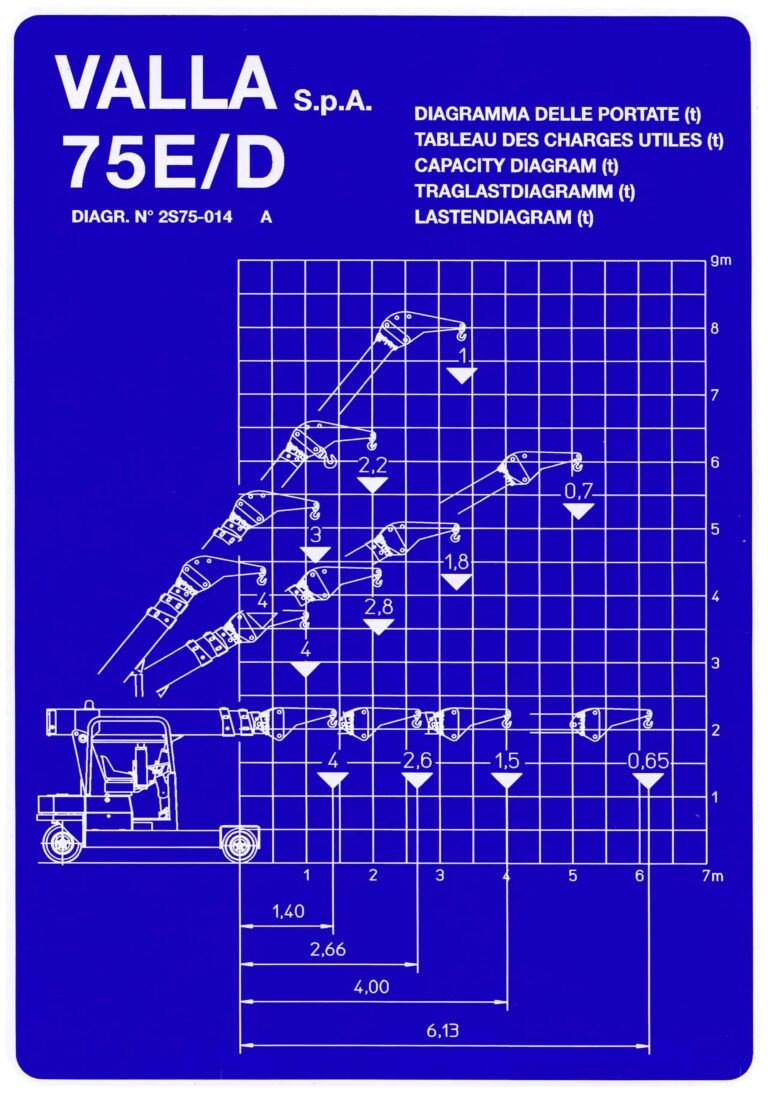

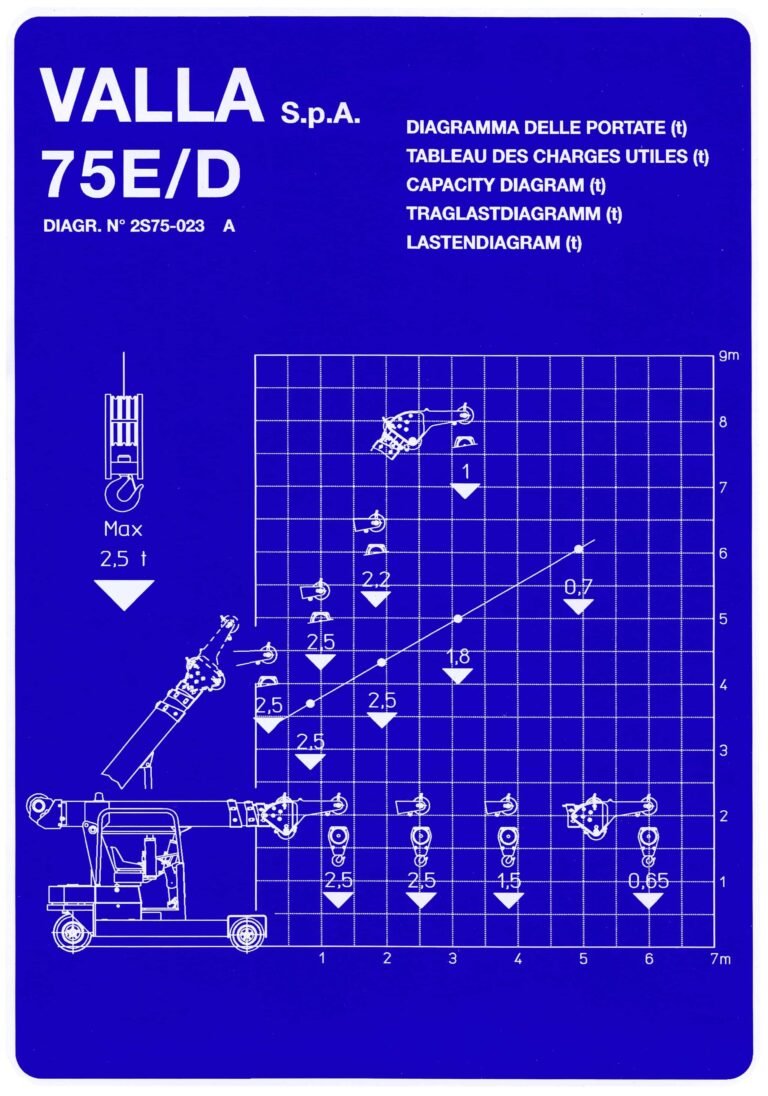

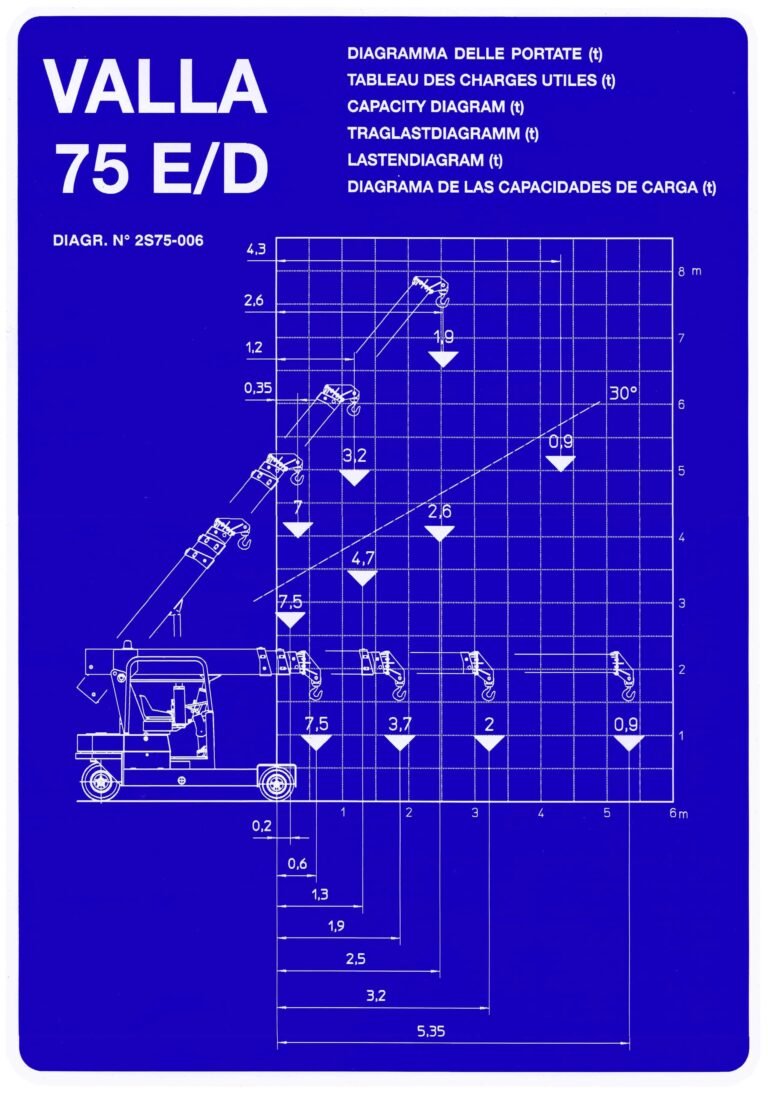

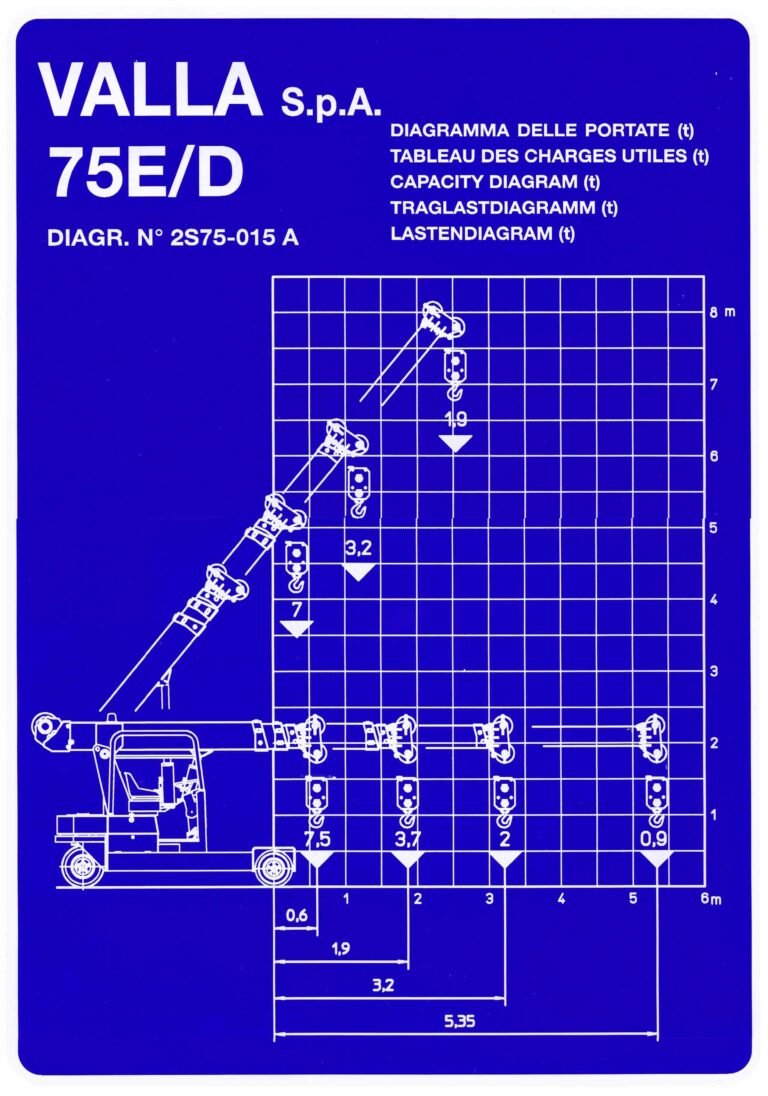

Load charts
Valla 75E load charts
As standard, the Valla 75E comes without a winch or fly jib. Either or both can be fitted if you need them. Tap a chart to see it full size.
Compare
Valla 75E compared with similar cranes
| This craneValla 75E | Valla 50E | Ormig 10tmE | Valla 120E | |
|---|---|---|---|---|
| Maximum capacity | 7.5 tonnes | 5 tonnes | 10 tonnes | 12 tonnes |
| Maximum boom extension | 5.4m | 4.88m | 6.33m | 7.2m |
| Fly jib | Not stated | Not stated | 2.8 tonnes | Not stated |
| Width | 1.74m | 1.40m | 2.21m | 2.10m |
| Weight | 6.1 tonnes | 5.5 tonnes | 11.4 tonnes | 14 tonnes |
| Turning radius | 3.62m | 2.75m | Not stated | 4.05m |
| Power | Electric | Electric | Electric | Electric |
