Electric pick and carry crane
Valla 50E
The Valla 50E is a 5 tonne electric pick and carry crane with a 4.88m boom extension, available on hire with or without an operator, or as part of a contract lift.
Spec sheet

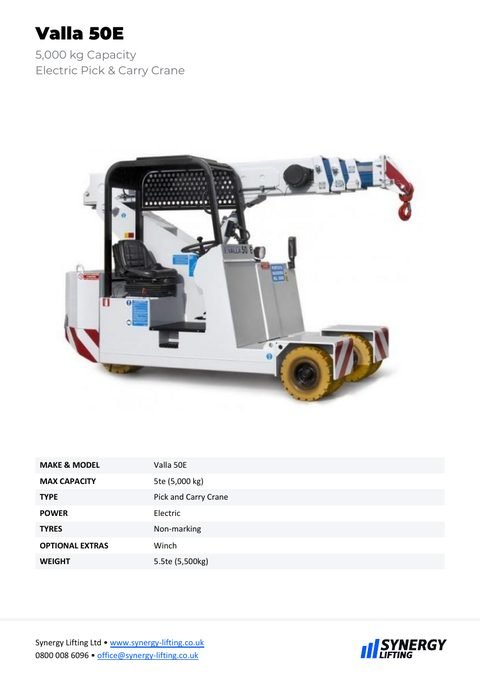

Download the Valla 50E spec sheet
Valla 50E
Download the manufacturer’s specification sheet (PDF · 4 pages · 0.3MB).
Photos of our Valla 50E and how to hire it are on the Valla 50E crane hire page.
Key figures
Valla 50E key figures
- Maximum capacity
- 5 tonnes
- Maximum boom extension
- 4.88m
- Weight
- 5.5 tonnes
- Width
- 1.40m
- Turning radius
- 2.75m
- Power
- ElectricNon-marking tyres
Specification
Valla 50E specification
| Item | Specification |
|---|---|
| Manufacturer | Valla |
| Model | 50E |
| Type | Electric pick and carry crane |
| Maximum capacity | 5 tonnes |
| Maximum boom extension | 4.88m |
| Boom angle | 0 to 55 degrees |
| Optional extras | Winch |
| Height | 2.07m |
| Length | 3.03m |
| Width | 1.40m |
| Turning radius | 2.75m |
| Weight | 5.5 tonnes |
| Power | Electric |
| Tyres | Non-marking |
| Chassis | Five wheel high quality steel structure with internal counterweights |
| Wheels | 4 superelastic wheels at the front, 1 superelastic wheel at the rear |
| Traction | Rear traction, DC electric motor 7kW |
| Hydraulic system | Powered by a DC electric motor, 5kW, maximum pressure 210 bar |
| Brakes | 1 brake shoe on the rear wheel |
| Steering | Rear steering with 180 degree rotation |
| Boom control | Proportional distributor with levers inside the cabin |
| Drive control | Pedals and steering wheel inside the cabin |
Specifications are taken from our own specification sheet for this machine, based on the manufacturer data, and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Load charts
Valla 50E load charts
As standard, the Valla 50E comes without a winch, but one can be fitted if you need it. Tap a chart to see it full size.
Compare
Valla 50E compared with similar cranes
| This craneValla 50E | Valla 75E | Ormig 10tmE | Valla 120E | |
|---|---|---|---|---|
| Maximum capacity | 5 tonnes | 7.5 tonnes | 10 tonnes | 12 tonnes |
| Maximum boom extension | 4.88m | 5.4m | 6.33m | 7.2m |
| Fly jib | Not stated | Not stated | 2.8 tonnes | Not stated |
| Width | 1.40m | 1.74m | 2.21m | 2.10m |
| Weight | 5.5 tonnes | 6.1 tonnes | 11.4 tonnes | 14 tonnes |
| Turning radius | 2.75m | 3.62m | Not stated | 4.05m |
| Power | Electric | Electric | Electric | Electric |
