All-terrain crane
Terex Demag AC 50-1
The Terex Demag AC 50-1 is a 50 tonne, three axle all-terrain crane with a 40m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 50 tonnes
- Main boom
- 10.1m to 40m
- Swingaway jib
- 9.2m or 17.6mOptional
- Counterweight
- 7.5 to 9.5 tonnes
- Carrier width
- 2.55m
- Axle lines
- 3
Download the Terex Demag AC 50-1 spec sheet

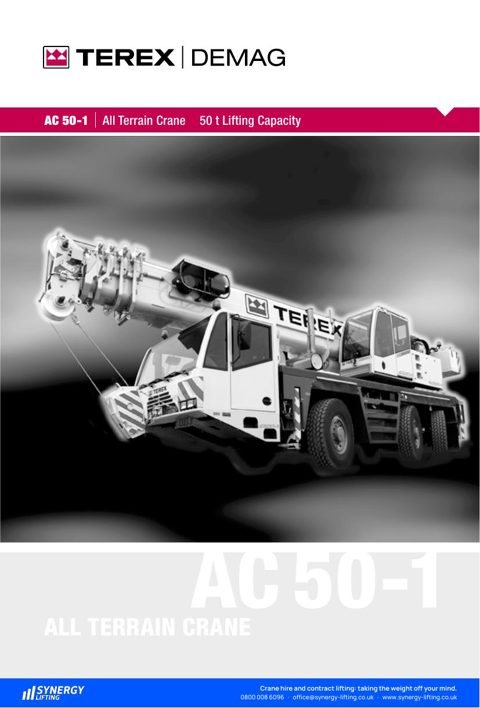

Terex Demag AC 50-1 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 18 pages, 1.4MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Terex Demag |
| Model | AC 50-1 |
| Type | All-terrain crane |
| Maximum capacity | 50 tonnes |
| Main boom | 10.1m to 40m, boom base and 4 telescopic sections, ovaloid profile |
| Boom angle | -1.5 to +81.5 degrees |
| Swingaway jib | Optional side-folding 1 or 2 part jib, 9.2m or 17.6m, offset 0, 20 and 40 degrees |
| Counterweight | 7.5 tonnes fixed on the superstructure; up to 9.5 tonnes with the optional additional 2 tonnes |
| Weight and axle loads | 12,000kg per axle, 36,000kg in total, with main boom, 9.2m extension, 7.5t counterweight, 14.00 R 25 tyres and single line hook |
| Outriggers | 4 hydraulically telescoping beams with hydraulic jacks, base 6.85m x 6.40m |
| Axle lines | 3, axle 1 steered, axles 1 and 3 driven (6 x 4 x 2; 6 x 6 x 6 optional) |
| Tyres and width | 14.00 R 25 single wheels standard, 2.55m overall width; 16.00 R 25 optional (increased weight and width) |
| Suspension | Hydropneumatic, all axles hydraulically blockable |
| Engine | DaimlerChrysler OM 926 LA 6-cylinder diesel, 240kW (326HP) at 2,200rpm; superstructure powered by the carrier engine |
| Transmission | Automated powershift with torque converter, 6 forward and 2 reverse |
| Control and safety | Hydraulic pilot control, electronic load indicator, hoist limit switches, ABS |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Terex Demag AC 50-1 compared with similar cranes
| This craneTerex Demag AC 50-1 | Grove GMK3050-3 | Liebherr LTM 1050-3.1 | Tadano Faun ATF 50G-3 | |
|---|---|---|---|---|
| Maximum capacity | 50 tonnes | 50 tonnes | 50 tonnes | 50 tonnes |
| Main boom | 10.1m to 40m | 10.2m to 40m | 11.4m to 38m | 10m to 40m |
| Swingaway jib | 9.2m or 17.6m | 8m | 9.2m or 16m | Not stated |
| Jib | Not stated | Not stated | Not stated | 9m or 16m |
| Maximum tip height | Not stated | 43m | Not stated | Not stated |
| Counterweight | 7.5 to 9.5 tonnes | 7.5 tonnes | 7 to 9 tonnes | 7 to 10 tonnes |
| Carrier width | 2.55m | Not stated | Not stated | 2.55m |
| Axle lines | 3 | 3 | 3 | 3 |
| More detail | Download spec sheet | View Grove GMK3050-3 | View Liebherr LTM 1050-3.1 | View Tadano Faun ATF 50G-3 |
