All-terrain crane
Tadano Faun ATF 50G-3
The Tadano Faun ATF 50G-3 is a 50 tonne, three axle all-terrain crane with a 40m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 50 tonnes
- Main boom
- 10m to 40m
- Jib
- 9m or 16mBoom extension, optional
- Counterweight
- 7 to 10 tonnes7 tonnes standard
- Carrier width
- 2.55m
- Axle lines
- 3
Download the Tadano Faun ATF 50G-3 spec sheet

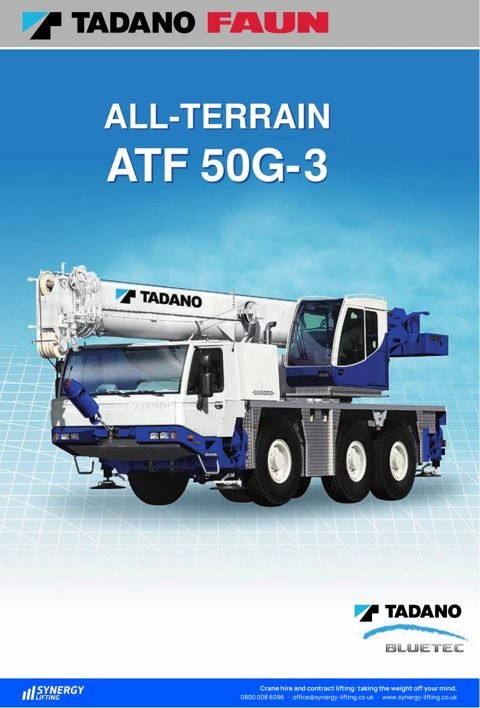

Tadano Faun ATF 50G-3 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 26 pages, 4.5MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Tadano Faun |
| Model | ATF 50G-3 |
| Type | All-terrain crane |
| Maximum capacity | 50 tonnes |
| Main boom | 10m to 40m, five sections (base and 4 telescoping), extendable under partial load |
| Jib | Optional boom extension 9m or 16m; optional 1.6m heavy duty jib |
| Counterweight | 7 tonnes standard, divisible, hydraulic assembly controlled from the superstructure cab; optional additional 3 tonnes; optional versions of 4.9 tonnes and 10 tonnes |
| Weight and axle loads | 12 tonnes per axle line, 36 tonnes in total, with 7.0t counterweight, 9m/16m boom extension, 32t hook block, 6t swivel hook and 445/95 R25 tyres |
| Outriggers | 4 point telescopic hydraulic, controls on both sides of the carrier and in the superstructure cab; base 6.3m (4.3m mid extension) x 7.2m |
| Axle lines | 3, all steered and driven (6×6) |
| Tyres and width | 6 x 385/95 R25 (14.00 R25) standard, width 2.55m; 445/95 R25 (16.00 R25) optional |
| Suspension | Hydropneumatic with levelling adjustment |
| Engine | Mercedes-Benz OM 926 LA 6 cylinder diesel (Euromot III B), 240kW (326HP) at 2,200rpm; crane pumps driven by the carrier engine |
| Transmission | ZF-AS-Tronic 12 AS 2302 with automatic gear shifting, 12 forward and 2 reverse, Power/Economy mode |
| Control and safety | 2 hydraulic joystick levers; load moment device, working area display, hoist limit switch, lower limit switch, drum turn indicator, safety valves against pipe and hose rupture |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Tadano Faun ATF 50G-3 compared with similar cranes
| This craneTadano Faun ATF 50G-3 | Grove GMK3050-3 | Liebherr LTM 1050-3.1 | Terex Demag AC 50-1 | |
|---|---|---|---|---|
| Maximum capacity | 50 tonnes | 50 tonnes | 50 tonnes | 50 tonnes |
| Main boom | 10m to 40m | 10.2m to 40m | 11.4m to 38m | 10.1m to 40m |
| Swingaway jib | Not stated | 8m | 9.2m or 16m | 9.2m or 17.6m |
| Jib | 9m or 16m | Not stated | Not stated | Not stated |
| Maximum tip height | Not stated | 43m | Not stated | Not stated |
| Counterweight | 7 to 10 tonnes | 7.5 tonnes | 7 to 9 tonnes | 7.5 to 9.5 tonnes |
| Carrier width | 2.55m | Not stated | Not stated | 2.55m |
| Axle lines | 3 | 3 | 3 | 3 |
| More detail | Download spec sheet | View Grove GMK3050-3 | View Liebherr LTM 1050-3.1 | View Terex Demag AC 50-1 |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
