Truck-mounted crane
Tadano Faun HK 60
The Tadano Faun HK 60 is a 60 tonne, four axle truck-mounted crane with a 40.2m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

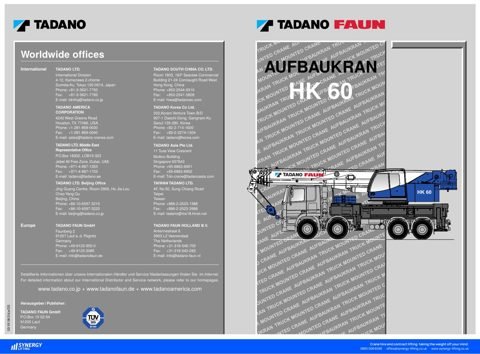

Download the Tadano Faun HK 60 spec sheet
Tadano Faun HK 60
Download the manufacturer’s specification sheet (PDF · 13 pages · 7.6MB).
Key figures
Tadano Faun HK 60 key figures
- Maximum capacity
- 60 tonnesOver the rear with additional lifting equipment; 50 tonnes through 360 degrees
- Main boom
- 10.4m to 40.2m
- Jib
- 9m or 16mBoom extension, optional
- Counterweight
- 8.4 tonnes
- Axle lines
- 4
Specification
Tadano Faun HK 60 specification
| Item | Specification |
|---|---|
| Manufacturer | Tadano Faun |
| Model | HK 60 |
| Type | Truck-mounted crane |
| Maximum capacity | 60 tonnes over the rear with additional lifting equipment; 50 tonnes through 360 degrees |
| Main boom | 10.4m to 40.2m, five sections (base and 4 telescoping), extendable under partial load |
| Jib | Optional boom extension 9m or 16m, offsets 5, 20 and 40 degrees |
| Counterweight | 8.4 tonnes standard, divisible, hydraulic assembly controlled from the superstructure cab; versions of 7.3 tonnes and 3.1 tonnes |
| Weight and axle loads | Depending on chassis and options: up to 9, 9, 12 and 12 tonnes on axles 1 to 4, up to 42 tonnes in total |
| Outriggers | 4 point hydraulically extendable, front outriggers slewable, controls on both sides of the carrier; base 6.28m x 6.32m and 4.3m x 6.17m |
| Axle lines | 4, MAN or Mercedes-Benz 8×4 chassis; other chassis on request |
| Crane drive | Mercedes-Benz OM 904 LA 4 cylinder diesel superstructure engine (Euromot III A / EPA III), 90kW (122HP) at 2,200rpm |
| Control and safety | 2 hydraulic joystick levers for simultaneous and independent operation of 4 crane motions; load moment device, hoist limit switch, lower limit switch, drum turn indicator, safety valves against pipe and hose rupture |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Tadano Faun HK 60 compared with similar cranes
| This craneTadano Faun HK 60 | Liebherr LTF 1060-4.1 | Tadano Faun HK 40 | Liebherr LTF 1035-3.1 | |
|---|---|---|---|---|
| Maximum capacity | 60 tonnes | 60 tonnes | 40 tonnes | 35 tonnes |
| Main boom | 10.4m to 40.2m | 10.2m to 40m | 10.45m to 35.2m | 9.2m to 30m |
| Jib | 9m or 16m | 9.5m or 16m | 9m | 8.6m or 15m |
| Counterweight | 8.4 tonnes | 10.2 tonnes | 4.5 to 8.5 tonnes | 2 to 5 tonnes |
| Axle lines | 4 | 4 | 3 or 4 | 3 |
