Truck-mounted crane
Liebherr LTF 1035-3.1
The Liebherr LTF 1035-3.1 is a 35 tonne, three axle truck-mounted crane with a 30m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

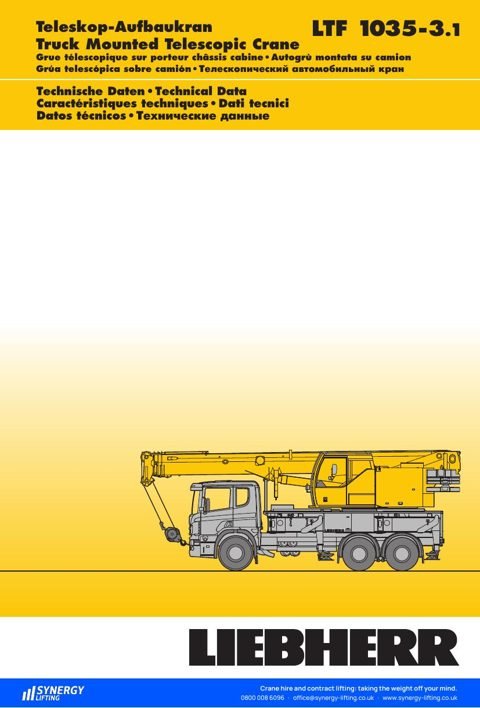

Download the Liebherr LTF 1035-3.1 spec sheet
Liebherr LTF 1035-3.1
Download the manufacturer’s specification sheet (PDF · 16 pages · 1.6MB).
Key figures
Liebherr LTF 1035-3.1 key figures
- Maximum capacity
- 35 tonnes
- Main boom
- 9.2m to 30m
- Jib
- 8.6m or 15mFolding jib, optional
- Counterweight
- 2 to 5 tonnes
- Axle lines
- 3
Specification
Liebherr LTF 1035-3.1 specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTF 1035-3.1 |
| Type | Truck-mounted crane |
| Maximum capacity | 35 tonnes |
| Main boom | 9.2m to 30m, pivot section and 3 telescopic sections, telescopic under load |
| Jib | Optional single folding jib 8.6m, or double folding jib 8.6m to 15m, installed at 0, 20 or 40 degrees |
| Counterweight | 2 tonnes basic, permanently mounted to the superstructure; optional additional 3 tonnes for 5 tonnes in total, with hydraulic ballasting device |
| Weight and axle loads | 9 tonnes on axle 1 and 12 tonnes on axles 2 and 3, 32 or 33 tonnes in total, with 5t counterweight and double folding jib |
| Outriggers | Hydraulically slewing and telescoping star-pattern outriggers with fixed pads, remote control, automatic levelling, electronic inclination display |
| Axle lines | 3, SCANIA CB 6×4 MNZ truck chassis, supplied by the buyer |
| Crane drive | Liebherr D934L A6 4-cylinder diesel in the superstructure, 129kW (175hp) at 1,800rpm, maximum torque 815Nm at 1,100 to 1,500rpm |
| Control and safety | LICCON2 safe load indicator, hoist limit switch, safety valves against pipe and hose rupture |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Liebherr LTF 1035-3.1 compared with similar cranes
| This craneLiebherr LTF 1035-3.1 | Tadano Faun HK 40 | Liebherr LTF 1060-4.1 | Tadano Faun HK 60 | |
|---|---|---|---|---|
| Maximum capacity | 35 tonnes | 40 tonnes | 60 tonnes | 60 tonnes |
| Main boom | 9.2m to 30m | 10.45m to 35.2m | 10.2m to 40m | 10.4m to 40.2m |
| Jib | 8.6m or 15m | 9m | 9.5m or 16m | 9m or 16m |
| Counterweight | 2 to 5 tonnes | 4.5 to 8.5 tonnes | 10.2 tonnes | 8.4 tonnes |
| Axle lines | 3 | 3 or 4 | 4 | 4 |
