Truck-mounted crane
Tadano Faun HK 40
The Tadano Faun HK 40 is a 40 tonne truck-mounted crane with a 35.2m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

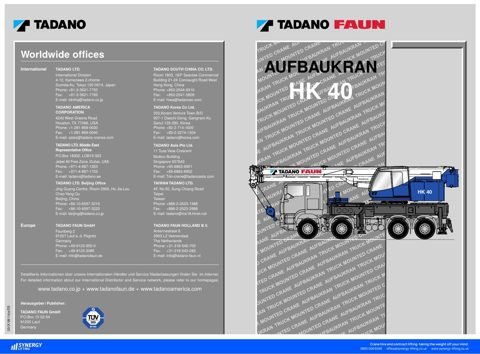

Download the Tadano Faun HK 40 spec sheet
Tadano Faun HK 40
Download the manufacturer’s specification sheet (PDF · 22 pages · 5.8MB).
Key figures
Tadano Faun HK 40 key figures
- Maximum capacity
- 40 tonnes
- Main boom
- 10.45m to 35.2m
- Jib
- 9mBoom extension, optional
- Counterweight
- 4.5 to 8.5 tonnes4.5 tonnes standard
- Axle lines
- 3 or 4Depending on chassis
Specification
Tadano Faun HK 40 specification
| Item | Specification |
|---|---|
| Manufacturer | Tadano Faun |
| Model | HK 40 |
| Type | Truck-mounted crane |
| Maximum capacity | 40 tonnes |
| Main boom | 10.45m to 35.2m, four sections (base and 3 telescoping), single telescopic cylinder and ropes, extendable under partial load |
| Jib | Optional 9m boom extension, offsets 0, 20 and 40 degrees |
| Counterweight | 4.5 tonnes standard, divisible, hydraulic assembly controlled from the superstructure cab; up to 8.5 tonnes with the optional additional 4 tonnes |
| Weight and axle loads | Depending on chassis and options: 32 tonnes in total with 4.5t counterweight, 9m boom extension, 10t hook block and 4t swivel hook; 26 tonnes in total with 9m boom extension |
| Outriggers | 4 point hydraulically extendable, front outriggers slewable, controls on both sides of the carrier and in the superstructure cab; base 6.31m x 6.49m and 4.90m x 6.20m |
| Axle lines | 3 or 4 axle Mercedes-Benz, MAN, DAF, Iveco or Scania chassis (6×4, 6×6 or 8×4); other chassis on request |
| Crane drive | Mercedes-Benz OM 904 LA 4 cylinder diesel superstructure engine, 88kW (118HP) at 2,000rpm |
| Control and safety | 2 hydraulic joystick levers for simultaneous and independent operation of 4 crane motions; load moment device, hoist limit switch, lower limit switch, drum turn indicator, safety valves against pipe and hose rupture |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Tadano Faun HK 40 compared with similar cranes
| This craneTadano Faun HK 40 | Liebherr LTF 1035-3.1 | Liebherr LTF 1060-4.1 | Tadano Faun HK 60 | |
|---|---|---|---|---|
| Maximum capacity | 40 tonnes | 35 tonnes | 60 tonnes | 60 tonnes |
| Main boom | 10.45m to 35.2m | 9.2m to 30m | 10.2m to 40m | 10.4m to 40.2m |
| Jib | 9m | 8.6m or 15m | 9.5m or 16m | 9m or 16m |
| Counterweight | 4.5 to 8.5 tonnes | 2 to 5 tonnes | 10.2 tonnes | 8.4 tonnes |
| Axle lines | 3 or 4 | 3 | 4 | 4 |
