Truck-mounted crane
Liebherr LTF 1060-4.1
The Liebherr LTF 1060-4.1 is a 60 tonne, four axle truck-mounted crane with a 40m main boom, supplied with an operator for crane hire or as part of a contract lift.

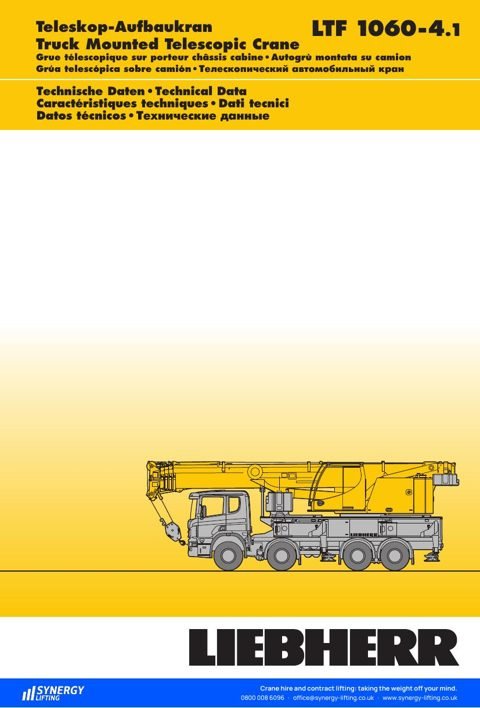

Spec sheet
Download the Liebherr LTF 1060-4.1 spec sheet
Liebherr LTF 1060-4.1
Download the manufacturer’s specification sheet (PDF · 18 pages · 1.7MB).
Key figures
Liebherr LTF 1060-4.1 key figures
- Maximum capacity
- 60 tonnes
- Main boom
- 10.2m to 40m
- Jib
- 9.5m or 16mFolding jib, optional
- Counterweight
- 10.2 tonnes
- Axle lines
- 4
Specification
Liebherr LTF 1060-4.1 specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTF 1060-4.1 |
| Type | Truck-mounted crane |
| Maximum capacity | 60 tonnes |
| Main boom | 10.2m to 40m, base section and 4 telescopic sections, TELEMATIK telescoping system |
| Jib | Optional single folding jib 9.5m, or double folding jib 9.5m to 16m, installed at 0, 20 or 40 degrees |
| Counterweight | 10.2 tonnes |
| Weight and axle loads | 9 tonnes on axles 1 and 2, 12 tonnes on axles 3 and 4, 42 tonnes in total, with 10.2t counterweight or 9.2t counterweight with swingaway jib |
| Outriggers | 4-point hydraulic outriggers, remote control, automatic levelling, electronic inclination display |
| Axle lines | 4, SCANIA CB 8×4 MHZ, Mercedes-Benz ACTROS 4141K 8×4 or MAN TGS 41.400 8x4BB truck chassis, supplied by the buyer |
| Crane drive | Liebherr 4-cylinder diesel in the superstructure, 129kW (175hp), maximum torque 815Nm |
| Control and safety | LICCON2 safe load indicator, hoist limit switch, safety valves against pipe and hose rupture, test system for servicing |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Liebherr LTF 1060-4.1 compared with similar cranes
| This craneLiebherr LTF 1060-4.1 | Tadano Faun HK 60 | Tadano Faun HK 40 | Liebherr LTF 1035-3.1 | |
|---|---|---|---|---|
| Maximum capacity | 60 tonnes | 60 tonnes | 40 tonnes | 35 tonnes |
| Main boom | 10.2m to 40m | 10.4m to 40.2m | 10.45m to 35.2m | 9.2m to 30m |
| Jib | 9.5m or 16m | 9m or 16m | 9m | 8.6m or 15m |
| Counterweight | 10.2 tonnes | 8.4 tonnes | 4.5 to 8.5 tonnes | 2 to 5 tonnes |
| Axle lines | 4 | 4 | 3 or 4 | 3 |
