All-terrain crane
Terex AC 60-3
The Terex AC 60-3 is a 60 tonne, three axle all-terrain crane with a 40m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 60 tonnes
- Main boom
- 10.3m to 40m
- Swingaway jib
- 8m or 15mSide folding
- Maximum tip height
- 58m
- Counterweight
- Up to 11.6 tonnes5.15, 7.5, 9.1 or 11.6 tonnes
- Axle lines
- 3
Download the Terex AC 60-3 spec sheet

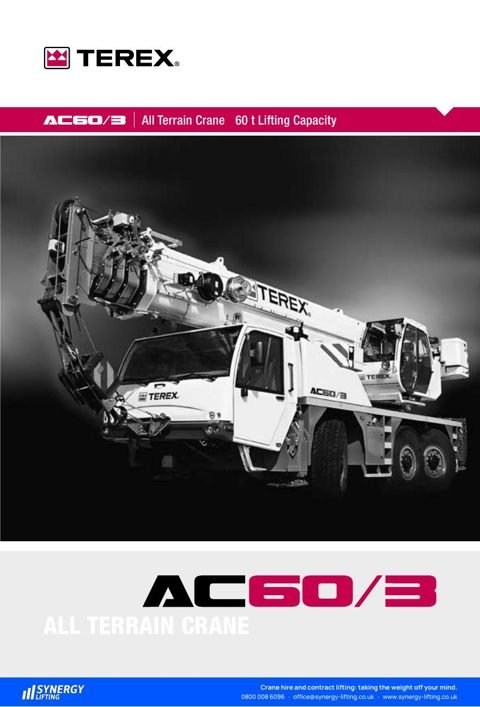

Terex AC 60-3 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 26 pages, 2.1MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Terex |
| Model | AC 60-3 |
| Type | All-terrain crane |
| Maximum capacity | 60 tonnes |
| Main boom | 10.3m to 40m, 5 section, telescoping with partial load |
| Boom angle | -4 to +80 degrees |
| Maximum tip height | 58m |
| Swingaway jib | Side folding 1 or 2-part jib, 8m or 15m, offset at 0, 20 and 40 degrees; hydraulic offset 0 to 40 degrees from the operator cab, under load, optional |
| Counterweight | 5.15, 7.5, 9.1 or 11.6 tonnes |
| Weight and axle loads | 12 tonnes per axle, 36 tonnes in total, with 15m extension, 5.15t counterweight, 16.00 x 25 tyres and 15t hook |
| Outriggers | 4 fully hydraulic telescopic outrigger beams and jacks, electronic levelling indicators |
| Axle lines | 3, all driven and steered (6x6x6), speed-dependent steering of axle 3, independent steering of axles 2 and 3 |
| Tyres and width | 16.00 R 25 standard; 14.00 R 25 and 20.5 R 25 optional |
| Suspension | Hydropneumatic, hydraulically lockable from both cabs, automatic or manual levelling |
| Engine | DaimlerChrysler OM 501 LA water-cooled diesel, 260kW (353HP) at 1,800rpm, Euromot 3a |
| Transmission | ZF AS Tronic automated gearbox, 12 speeds |
| Control and safety | Electronic safe load indicator, hoist limit switch, pressure relief and safety holding valves |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Terex AC 60-3 compared with similar cranes
| This craneTerex AC 60-3 | Grove GMK3060 | Grove GMK3060L-1 | Liebherr LTM 1060-3.1 | |
|---|---|---|---|---|
| Maximum capacity | 60 tonnes | 60 tonnes | 60 tonnes | 60 tonnes |
| Main boom | 10.3m to 40m | 9.7m to 43m | 9.6m to 48m | 10.3m to 48m |
| Swingaway jib | 8m or 15m | 8.7m to 15m | 8.7m to 15m | 9.5m or 16m |
| Maximum tip height | 58m | 60.7m | 65m | Not stated |
| Counterweight | Up to 11.6 tonnes | 13.6 tonnes | 13.5 tonnes | 5.5 to 12.8 tonnes |
| Carrier width | Not stated | 2.75m | 2.55m | Not stated |
| Axle lines | 3 | 3 | 3 | 3 |
| More detail | Download spec sheet | View Grove GMK3060 | View Grove GMK3060L-1 | View Liebherr LTM 1060-3.1 |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
