All-terrain crane
Grove GMK3060L-1
The Grove GMK3060L-1 is a 60 tonne, three axle all-terrain crane with a 48m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 60 tonnes
- Main boom
- 9.6m to 48m
- Swingaway jib
- 8.7m to 15m
- Maximum tip height
- 65m
- Counterweight
- 13.5 tonnes
- Carrier width
- 2.55m
- Axle lines
- 3
Download the Grove GMK3060L-1 spec sheet

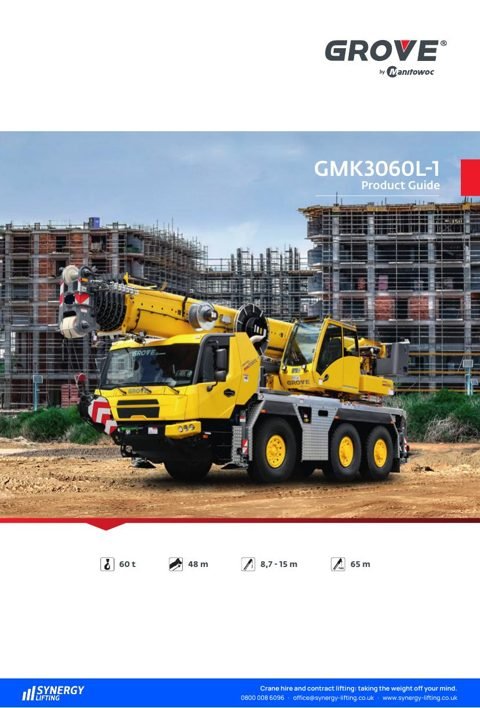

Grove GMK3060L-1 specification sheet
Load charts, dimensions and axle loads. PDF, 32 pages, 3.8MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Grove (Manitowoc) |
| Model | GMK3060L-1 |
| Type | All-terrain crane |
| Maximum capacity | 60 tonnes |
| Main boom | 9.6m to 48m, seven section TWIN-LOCK |
| Boom angle | -2.7 to +82 degrees |
| Maximum tip height | 51m on the main boom, 65m with the jib |
| Swingaway jib | Bi-fold 8.7m or 15m, hydraulic offset and luffing 0 to 40 degrees, or manual offset at 0, 20 and 40 degrees |
| Counterweight | 13.5 tonnes in sections, hydraulic removal from the cab |
| Outriggers | 4 hydraulically telescoping beams, automatic levelling |
| Axle lines | 3, all steered, lines 2 and 3 driven (6x4x6; 6x6x6 available) |
| Tyres and width | 385/95 R25 at 2.55m wide; 445/95 R25 at 2.75m; 525/80 R25 at 2.85m |
| Suspension | MEGATRAK independent hydropneumatic, all wheels |
| Engine | Cummins QSL9-C 350 diesel, 254kW at 2,100rpm, Euromot Stage 5 |
| Transmission | ZF Traxon automatic, 12 forward and 2 reverse |
| Control and safety | Crane Control System, load moment indicator, independent anti-two-block with lever lock-out |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Grove GMK3060L-1 compared with similar cranes
| This craneGrove GMK3060L-1 | Grove GMK3060 | Liebherr LTM 1060-3.1 | Terex AC 60-3 | |
|---|---|---|---|---|
| Maximum capacity | 60 tonnes | 60 tonnes | 60 tonnes | 60 tonnes |
| Main boom | 9.6m to 48m | 9.7m to 43m | 10.3m to 48m | 10.3m to 40m |
| Swingaway jib | 8.7m to 15m | 8.7m to 15m | 9.5m or 16m | 8m or 15m |
| Maximum tip height | 65m | 60.7m | Not stated | 58m |
| Counterweight | 13.5 tonnes | 13.6 tonnes | 5.5 to 12.8 tonnes | Up to 11.6 tonnes |
| Carrier width | 2.55m | 2.75m | Not stated | Not stated |
| Axle lines | 3 | 3 | 3 | 3 |
| More detail | Download spec sheet | View Grove GMK3060 | View Liebherr LTM 1060-3.1 | View Terex AC 60-3 |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
