All-terrain crane
Grove GMK3060
The Grove GMK3060 is a 60 tonne, three axle all-terrain crane with a 43m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

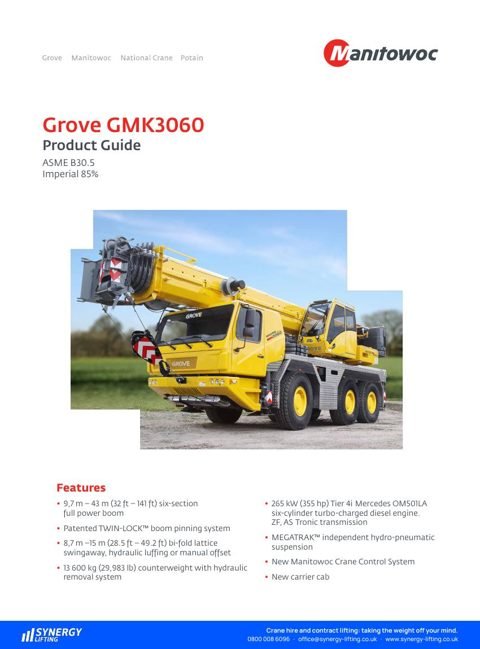

Download the Grove GMK3060 spec sheet
Grove GMK3060
Download the manufacturer’s specification sheet (PDF · 28 pages · 1.8MB).
Key figures
Grove GMK3060 key figures
- Maximum capacity
- 60 tonnes
- Main boom
- 9.7m to 43m
- Swingaway jib
- 8.7m to 15m
- Maximum tip height
- 60.7mWith the swingaway; 45.8m on the main boom
- Counterweight
- 13.6 tonnes
- Carrier width
- 2.75m
- Axle lines
- 3
Specification
Grove GMK3060 specification
| Item | Specification |
|---|---|
| Manufacturer | Grove (Manitowoc) |
| Model | GMK3060 |
| Type | All-terrain crane |
| Maximum capacity | 60 tonnes |
| Main boom | 9.7m to 43m, six section full power, TWIN-LOCK pinning |
| Boom angle | -2.7 to +82.8 degrees |
| Maximum tip height | 45.8m on the main boom; 60.7m with the swingaway |
| Swingaway jib | Bi-fold lattice 8.7m to 15m, hydraulically offsettable and luffing under load 0 to 40 degrees; manual offset version at 0, 20 or 40 degrees optional |
| Counterweight | 13.6 tonnes: 6.6 tonnes bolted to the turntable plus 2 x 2t and 3 x 1t sections, hydraulic installation and removal from the superstructure cab |
| Weight and axle loads | 35.47 tonnes in total (11.52t axle 1, 23.96t axles 2 and 3) with 6.6t counterweight, hydraulic swingaway, 445/95 R25 tyres, 6x4x6 and auxiliary hoist, driver and tanks filled |
| Outriggers | 4 hydraulic single stage beams, 500mm square pads; spread 6.2m full, 4.4m partial, 2.3m retracted |
| Axle lines | 3, all steered, lines 2 and 3 driven (6x4x6; 6x6x6 optional) |
| Tyres and width | 445/95 R25 (16.00 R25) standard at 2.75m wide; optional 385/95 R25 (14.00 R25) at 2.55m wide; optional 525/80 R25 at 2.85m wide |
| Suspension | MEGATRAK independent hydropneumatic, all wheels, with hydraulic lockout |
| Engine | Mercedes-Benz OM 501 LA six cylinder diesel, 265kW (355bhp) at 1,800rpm, Tier 4i |
| Transmission | ZF AS Tronic, 12 forward and 2 reverse |
| Control and safety | Crane Control System, load moment indicator and anti-two-block with control lever lockout |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Grove GMK3060 compared with similar cranes
| This craneGrove GMK3060 | Grove GMK3060L-1 | Liebherr LTM 1060-3.1 | Terex AC 60-3 | |
|---|---|---|---|---|
| Maximum capacity | 60 tonnes | 60 tonnes | 60 tonnes | 60 tonnes |
| Main boom | 9.7m to 43m | 9.6m to 48m | 10.3m to 48m | 10.3m to 40m |
| Swingaway jib | 8.7m to 15m | 8.7m to 15m | 9.5m or 16m | 8m or 15m |
| Maximum tip height | 60.7m | 65m | Not stated | 58m |
| Counterweight | 13.6 tonnes | 13.5 tonnes | 5.5 to 12.8 tonnes | Up to 11.6 tonnes |
| Carrier width | 2.75m | 2.55m | Not stated | Not stated |
| Axle lines | 3 | 3 | 3 | 3 |
