All-terrain crane
Liebherr LTM 1060-3.1
The Liebherr LTM 1060-3.1 is a 60 tonne, three axle all-terrain crane with a 48m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

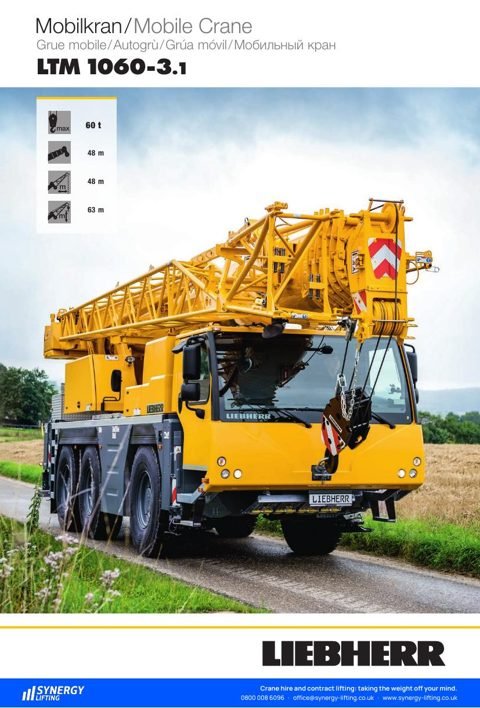

Download the Liebherr LTM 1060-3.1 spec sheet
Liebherr LTM 1060-3.1
Download the manufacturer’s specification sheet (PDF · 32 pages · 2.3MB).
Key figures
Liebherr LTM 1060-3.1 key figures
- Maximum capacity
- 60 tonnes
- Main boom
- 10.3m to 48m
- Swingaway jib
- 9.5m or 16m
- Counterweight
- 5.5 to 12.8 tonnes
- Axle lines
- 3
Specification
Liebherr LTM 1060-3.1 specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1060-3.1 |
| Type | All-terrain crane |
| Maximum capacity | 60 tonnes |
| Main boom | 10.3m to 48m, base section and 5 telescopic sections, TELEMATIK telescoping system |
| Swingaway jib | Single folding jib 9.5m or double swingaway jib 9.5m to 16m, adjustable 0, 20 and 40 degrees; 2.5m erection jib |
| Counterweight | 5.5 tonnes; optional additional 7.3 tonnes for 12.8 tonnes in total |
| Weight and axle loads | 12 tonnes per axle, 36 tonnes in total, with 5.5t counterweight |
| Outriggers | 4-point hydraulic outriggers, remote control, automatic levelling, electronic inclination display |
| Axle lines | 3, all steered, axles 2 and 3 driven with lockable differentials (6×6 optional, axle 1 additionally driven) |
| Tyres and width | 385/95 R25 (14.00 R25) standard; 445/95 R25 (16.00 R25) or 525/80 R25 (20.5 R25) optional |
| Suspension | Hydropneumatic on all axles, hydraulically lockable |
| Engine | Liebherr 6-cylinder diesel, 270kW (367hp), maximum torque 1,965Nm; also drives the crane |
| Transmission | ZF 12-speed gearbox with automatic control, two-stage transfer case with lockable transfer differential |
| Control and safety | LICCON2 safe load indicator, hoist limit switch, safety valves against pipe and hose rupture, test system for servicing |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Liebherr LTM 1060-3.1 compared with similar cranes
| This craneLiebherr LTM 1060-3.1 | Grove GMK3060 | Grove GMK3060L-1 | Terex AC 60-3 | |
|---|---|---|---|---|
| Maximum capacity | 60 tonnes | 60 tonnes | 60 tonnes | 60 tonnes |
| Main boom | 10.3m to 48m | 9.7m to 43m | 9.6m to 48m | 10.3m to 40m |
| Swingaway jib | 9.5m or 16m | 8.7m to 15m | 8.7m to 15m | 8m or 15m |
| Maximum tip height | Not stated | 60.7m | 65m | 58m |
| Counterweight | 5.5 to 12.8 tonnes | 13.6 tonnes | 13.5 tonnes | Up to 11.6 tonnes |
| Carrier width | Not stated | 2.75m | 2.55m | Not stated |
| Axle lines | 3 | 3 | 3 | 3 |
