All-terrain crane
Tadano ATF 40G-2
The Tadano ATF 40G-2 is a 40 tonne, two axle all-terrain crane with a 35.2m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 40 tonnes
- Main boom
- 10.45m to 35.2m
- Swingaway jib
- 9mOptional
- Counterweight
- 1.4 to 6.5 tonnes
- Axle lines
- 2
Download the Tadano ATF 40G-2 spec sheet

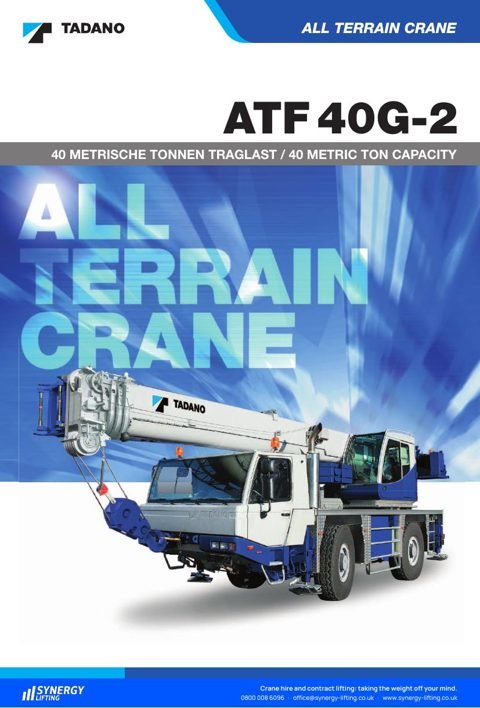

Tadano ATF 40G-2 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 20 pages, 8.9MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Tadano |
| Model | ATF 40G-2 |
| Type | All-terrain crane |
| Maximum capacity | 40 tonnes, over the rear with additional lifting equipment |
| Main boom | 10.45m to 35.2m, base and 3 telescoping sections |
| Swingaway jib | Optional 9m boom extension, offsets 0, 20 and 40 degrees |
| Counterweight | 1.4 tonnes standard; up to 6.5 tonnes with the optional additional 5.1 tonnes; optional 3.5 tonne counterweight variation |
| Weight and axle loads | 12 tonnes per axle, 24 tonnes in total, with 1.4t counterweight, 9m boom extension, 10t hookblock, 4 x 4 drive and 445/95 R 25 tyres |
| Outriggers | 4 point telescopic hydraulic, base 6.0m (4.3m mid extension) x 6.45m |
| Axle lines | 2, both steered and driven (4 x 4) |
| Tyres and width | 385/95 R 25 (14.00 R 25) standard; 445/95 R 25 (16.00 R 25) optional |
| Suspension | Hydropneumatic with levelling adjustment |
| Engine | Mercedes-Benz OM 906 LA 6-cylinder diesel, 205kW (279HP) at 2,200rpm; crane pumps driven by the carrier engine |
| Transmission | ZF 6 WG 210 powershift with torque converter, 6 forward and 1 reverse |
| Control and safety | 2 hydraulic joysticks, load moment device, working area display, hoist and lower limit switches, ABS |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Tadano ATF 40G-2 compared with similar cranes
| This craneTadano ATF 40G-2 | Liebherr LTM 1040-2.1 | Terex AC 40-2 (L) | Terex AC 35 L | |
|---|---|---|---|---|
| Maximum capacity | 40 tonnes | 40 tonnes | 40 tonnes | 35 tonnes |
| Main boom | 10.45m to 35.2m | 10.5m to 35m | 30.4m or 37.4m | 9.4m to 37.4m |
| Swingaway jib | 9m | Not stated | 8m or 15m | 8m side folding |
| Jib | Not stated | 9.5m | Not stated | Not stated |
| Maximum tip height | Not stated | Not stated | Not stated | 47m |
| Counterweight | 1.4 to 6.5 tonnes | 1.5 to 6.5 tonnes | Up to 5.5 tonnes | 5.5 tonnes |
| Axle lines | 2 | 2 | 2 | 2 |
| More detail | Download spec sheet | View Liebherr LTM 1040-2.1 | View Terex AC 40-2 (L) | View Terex AC 35 L |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
