All-terrain crane
Liebherr LTM 1040-2.1
The Liebherr LTM 1040-2.1 is a 40 tonne, two axle all-terrain crane with a 35m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 40 tonnes
- Main boom
- 10.5m to 35m
- Jib
- 9.5mSingle folding jib
- Counterweight
- 1.5 to 6.5 tonnes
- Axle lines
- 2

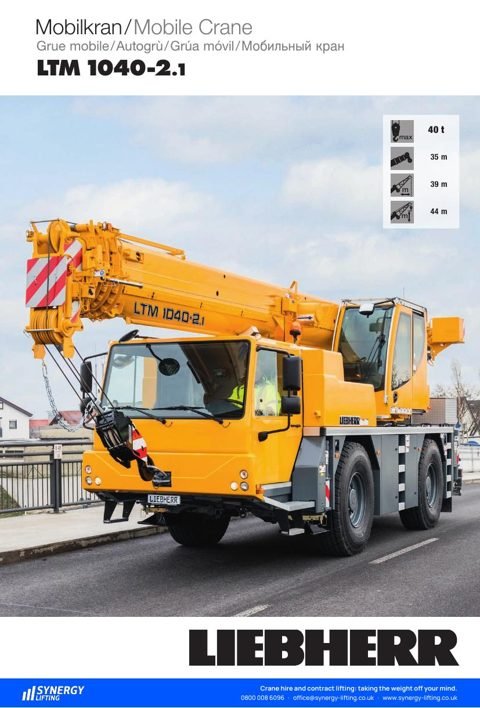

Download the Liebherr LTM 1040-2.1 spec sheet
Liebherr LTM 1040-2.1 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 24 pages, 3.3MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1040-2.1 |
| Type | All-terrain crane |
| Maximum capacity | 40 tonnes |
| Main boom | 10.5m to 35m, pivot section and 3 telescopic sections, telescopic under load |
| Jib | Single folding jib 9.5m, installed at 0, 20, 40 or 60 degrees |
| Counterweight | 1.5 tonnes basic, permanently mounted to the superstructure; optional additional 5 tonnes for 6.5 tonnes in total, with hydraulic ballasting device |
| Weight and axle loads | 12 tonnes per axle, 24 tonnes in total, with 1.5t counterweight |
| Outriggers | 4-point hydraulic outriggers, remote control, automatic levelling, electronic inclination display |
| Axle lines | 2, both steered planetary axles with differential locks |
| Tyres and width | 14.00 R25 (385/95 R25) standard; 16.00 R25 (445/95 R25) optional |
| Suspension | Hydropneumatic, hydraulically lockable |
| Engine | Mercedes-Benz 6-cylinder diesel, 210kW (286hp), maximum torque 1,150Nm |
| Transmission | ZF powershift with torque converter, lock-up and transfer case, 6 forward and 2 reverse |
| Control and safety | LICCON2 safe load indicator, hoist limit switch, safety valves against pipe and hose rupture |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Liebherr LTM 1040-2.1 compared with similar cranes
| This craneLiebherr LTM 1040-2.1 | Tadano ATF 40G-2 | Terex AC 40-2 (L) | Terex AC 35 L | |
|---|---|---|---|---|
| Maximum capacity | 40 tonnes | 40 tonnes | 40 tonnes | 35 tonnes |
| Main boom | 10.5m to 35m | 10.45m to 35.2m | 30.4m or 37.4m | 9.4m to 37.4m |
| Swingaway jib | Not stated | 9m | 8m or 15m | 8m side folding |
| Jib | 9.5m | Not stated | Not stated | Not stated |
| Maximum tip height | Not stated | Not stated | Not stated | 47m |
| Counterweight | 1.5 to 6.5 tonnes | 1.4 to 6.5 tonnes | Up to 5.5 tonnes | 5.5 tonnes |
| Axle lines | 2 | 2 | 2 | 2 |
| More detail | Download spec sheet | View Tadano ATF 40G-2 | View Terex AC 40-2 (L) | View Terex AC 35 L |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
