All-terrain crane
Terex AC 35 L
The Terex AC 35 L is a 35 tonne, two axle all-terrain crane with a 37.4m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 35 tonnes
- Main boom
- 9.4m to 37.4m
- Swingaway jib
- 8m side folding
- Maximum tip height
- 47m
- Counterweight
- 5.5 tonnes
- Axle lines
- 2

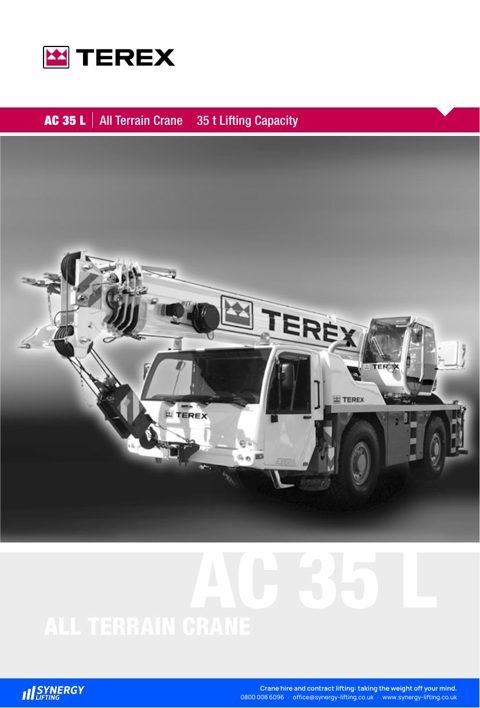

Download the Terex AC 35 L spec sheet
Terex AC 35 L specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 24 pages, 1.6MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Terex |
| Model | AC 35 L |
| Type | All-terrain crane |
| Maximum capacity | 35 tonnes |
| Main boom | 9.4m to 37.4m, base and 4 telescopic sections, fully hydraulic |
| Boom angle | -4 to +80 degrees |
| Maximum tip height | 47m |
| Swingaway jib | Side folding one-part 8m jib, offset at 0, 20 and 40 degrees; hydraulic offset 0 to 40 degrees from the operator cab, under load, optional |
| Counterweight | 5.5 tonnes |
| Weight and axle loads | 12 tonnes per axle, 24 tonnes in total, with 8m extension, 2.5t counterweight, 16.00 x 25 tyres and 5t hook block; 12.8 tonnes per axle, 25.6 tonnes in total with 3.8t counterweight and 25t hook block |
| Outriggers | 4 fully hydraulic telescopic outrigger beams and jacks, electronic levelling indicators |
| Axle lines | 2, both driven and steered (4x4x4), crab steering on job site |
| Tyres and width | 16.00 R 25 standard; 14.00 R 25 and 20.5 R 25 optional |
| Suspension | Hydropneumatic, both axles hydraulically lockable, automatic or manual levelling |
| Engine | DaimlerChrysler OM 906 LA 6 cylinder water-cooled diesel, 205kW (279HP) at 2,200rpm, Euromot 3a, Tier 3 and CARB |
| Transmission | Automated powershift with torque converter, 6 forward and 2 reverse |
| Control and safety | Electronic safe load indicator, hoist limit switch, pressure relief and safety holding valves |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Terex AC 35 L compared with similar cranes
| This craneTerex AC 35 L | Liebherr LTM 1040-2.1 | Tadano ATF 40G-2 | Terex AC 40-2 (L) | |
|---|---|---|---|---|
| Maximum capacity | 35 tonnes | 40 tonnes | 40 tonnes | 40 tonnes |
| Main boom | 9.4m to 37.4m | 10.5m to 35m | 10.45m to 35.2m | 30.4m or 37.4m |
| Swingaway jib | 8m side folding | Not stated | 9m | 8m or 15m |
| Jib | Not stated | 9.5m | Not stated | Not stated |
| Maximum tip height | 47m | Not stated | Not stated | Not stated |
| Counterweight | 5.5 tonnes | 1.5 to 6.5 tonnes | 1.4 to 6.5 tonnes | Up to 5.5 tonnes |
| Axle lines | 2 | 2 | 2 | 2 |
| More detail | Download spec sheet | View Liebherr LTM 1040-2.1 | View Tadano ATF 40G-2 | View Terex AC 40-2 (L) |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
