All-terrain crane
Terex AC 40-2 (L)
The Terex AC 40-2 (L) is a 40 tonne, two axle all-terrain crane with a 37.4m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 40 tonnes
- Main boom
- 30.4m or 37.4mAC 40/2, 4 sections, or AC 40/2 L, 5 sections
- Swingaway jib
- 8m or 15m8m or 15m on the 4 section boom, 8m on the 5 section boom, optional
- Counterweight
- Up to 5.5 tonnes2, 3 or 3.6 tonnes; up to 5.5 tonnes optional
- Axle lines
- 2

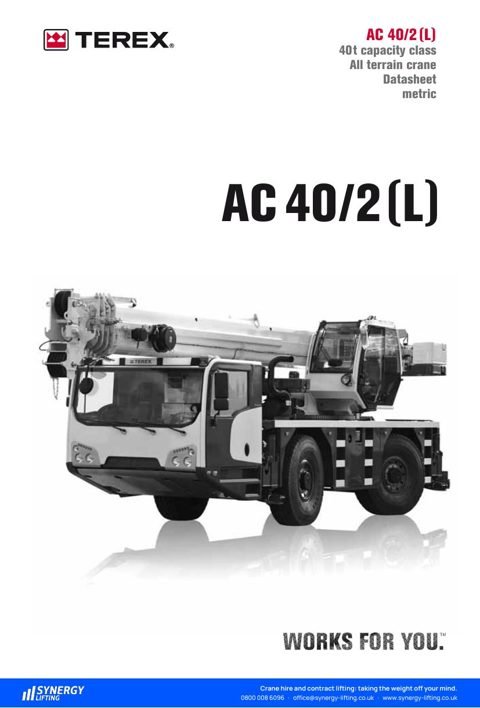

Download the Terex AC 40-2 (L) spec sheet
Terex AC 40-2 (L) specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 34 pages, 2.0MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Terex |
| Model | AC 40-2 (L) |
| Type | All-terrain crane |
| Maximum capacity | 40 tonnes |
| Main boom | AC 40/2: 30.4m, base and 3 telescoping sections; AC 40/2 L: 37.4m, base and 4 telescopic sections |
| Swingaway jib | Optional side folding jib: 2-part 8m or 15m for the 4 section boom, 1-part 8m for the 5 section boom, offset at 0, 20 and 40 degrees |
| Counterweight | 2, 3 or 3.6 tonnes depending on local road regulations; optional additional counterweight up to 5.5 tonnes with hydraulic locking |
| Outriggers | 4 fully hydraulic telescopic outrigger beams and jacks, electronic levelling indicators; outrigger basis monitoring (EU delivery only) |
| Axle lines | 2, both driven and steered (4x4x4), crab steering on job site |
| Tyres and width | 14.00 R 25 standard; 16.00 R 25 and 20.5 R 25 optional |
| Suspension | Hydropneumatic, both axles hydraulically lockable, automatic or manual levelling |
| Engine | MTU OM 906 LA 6 cylinder, 205kW (279HP) at 2,200rpm, Euromot 3a, Tier 3 and CARB; or MTU OM 936 LA, 210kW (286HP) at 2,200rpm, Euromot 4, Tier 4F and CARB, depending on local regulations |
| Transmission | Automated powershift with torque converter, 6 forward and 2 reverse |
| Control and safety | Electronic load moment indicator, hoist limit switch, pressure relief and safety holding valves |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Terex AC 40-2 (L) compared with similar cranes
| This craneTerex AC 40-2 (L) | Liebherr LTM 1040-2.1 | Tadano ATF 40G-2 | Terex AC 35 L | |
|---|---|---|---|---|
| Maximum capacity | 40 tonnes | 40 tonnes | 40 tonnes | 35 tonnes |
| Main boom | 30.4m or 37.4m | 10.5m to 35m | 10.45m to 35.2m | 9.4m to 37.4m |
| Swingaway jib | 8m or 15m | Not stated | 9m | 8m side folding |
| Jib | Not stated | 9.5m | Not stated | Not stated |
| Maximum tip height | Not stated | Not stated | Not stated | 47m |
| Counterweight | Up to 5.5 tonnes | 1.5 to 6.5 tonnes | 1.4 to 6.5 tonnes | 5.5 tonnes |
| Axle lines | 2 | 2 | 2 | 2 |
| More detail | Download spec sheet | View Liebherr LTM 1040-2.1 | View Tadano ATF 40G-2 | View Terex AC 35 L |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
