All-terrain crane
Tadano ATF 220G-5
The Tadano ATF 220G-5 is a 220 tonne, five axle all-terrain crane with a 68m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 220 tonnes
- Main boom
- 13.2m to 68m
- Swingaway jib
- 13.2m to 37.2mOptional
- Counterweight
- 71 tonnes
- Axle lines
- 5
Download the Tadano ATF 220G-5 spec sheet

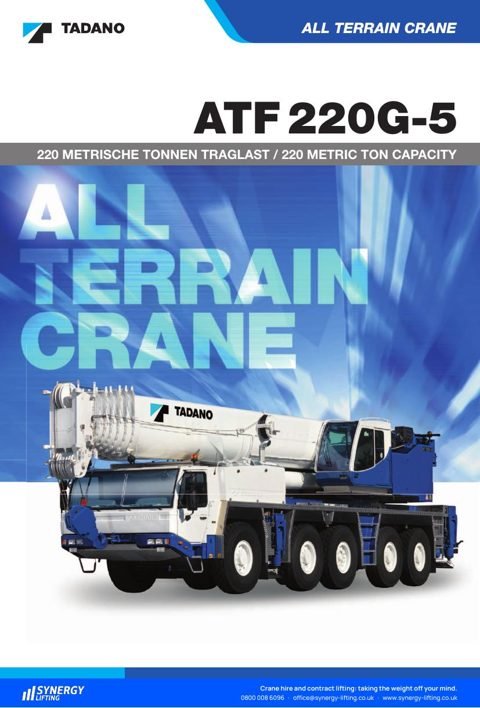

Tadano ATF 220G-5 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 36 pages, 7.5MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Tadano |
| Model | ATF 220G-5 |
| Type | All-terrain crane |
| Maximum capacity | 220 tonnes, over the rear |
| Main boom | 13.2m to 68m, base and 6 telescoping sections, single telescopic cylinder |
| Swingaway jib | Optional boom extensions 13.2m to 37.2m, offsets 0, 20 and 40 degrees or hydraulic 0 to 40 degrees; optional HTLJ extension 8.5m to 21m, hydraulic offset 0 to 60 degrees; optional 5.4m heavy duty jib |
| Counterweight | 71 tonnes total, divisible, hydraulically assembled from the cab; variations of 12, 23.5, 35 and 47 tonnes |
| Weight and axle loads | 12 tonnes per axle, 60 tonnes in total |
| Outriggers | 4 point double telescopic hydraulic, base 8.3m (5.6m mid extension) x 9.01m |
| Axle lines | 5, all steered, axles 1, 2, 4 and 5 driven (10 x 8; 10 x 6 optional) |
| Tyres and width | 385/95 R 25 (14.00 R 25) standard; 445/95 R 25 (16.00 R 25) and 525/80 R 25 (20.5 R 25) optional |
| Suspension | Hydropneumatic with levelling adjustment |
| Engine | Mercedes-Benz OM 502 LA 8-cylinder diesel, 405kW (551HP) at 1,800rpm |
| Crane drive | Mercedes-Benz OM 924 LA 4-cylinder diesel, 143kW (194HP) at 1,800rpm |
| Transmission | ZF AS-Tronic 16 AS 2602 automated, 16 forward and 2 reverse |
| Control and safety | 2 electric joysticks, Lift Adjuster, load moment device, anemometer, working area limiter, hoist and lower limit switches; ABS optional |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Tadano ATF 220G-5 compared with similar cranes
| This craneTadano ATF 220G-5 | Liebherr LTM 1220-5.2 | Liebherr LTM 1230-5.1 | Liebherr LTM 1200-5.1 | |
|---|---|---|---|---|
| Maximum capacity | 220 tonnes | 220 tonnes | 230 tonnes | 200 tonnes |
| Main boom | 13.2m to 68m | 13.3m to 60m | 12.7m to 75m | 13.2m to 72m |
| Swingaway jib | 13.2m to 37.2m | 12.2m to 36m | Not stated | 12.2m to 36m |
| Jib | Not stated | Not stated | Up to 43m | Not stated |
| Counterweight | 71 tonnes | 74 tonnes | 52 to 72 tonnes | 72 tonnes |
| Axle lines | 5 | 5 | 5 | 5 |
| More detail | Download spec sheet | View Liebherr LTM 1220-5.2 | View Liebherr LTM 1230-5.1 | View Liebherr LTM 1200-5.1 |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
