All-terrain crane
Liebherr LTM 1220-5.2
The Liebherr LTM 1220-5.2 is a 220 tonne, five axle all-terrain crane with a 60m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

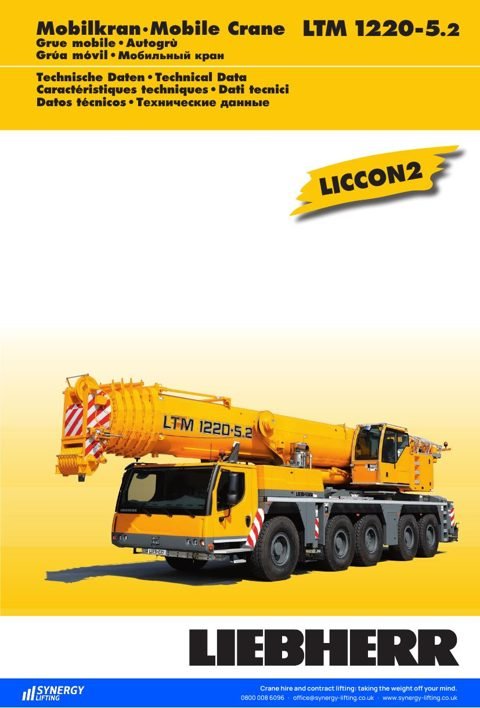

Download the Liebherr LTM 1220-5.2 spec sheet
Liebherr LTM 1220-5.2
Download the manufacturer’s specification sheet (PDF · 72 pages · 1.7MB).
Key figures
Liebherr LTM 1220-5.2 key figures
- Maximum capacity
- 220 tonnes
- Main boom
- 13.3m to 60m
- Swingaway jib
- 12.2m to 36mOptional
- Counterweight
- 74 tonnes
- Axle lines
- 5
Specification
Liebherr LTM 1220-5.2 specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1220-5.2 |
| Type | All-terrain crane |
| Maximum capacity | 220 tonnes at 3m radius |
| Main boom | 13.3m to 60m, base section and 5 telescopic sections, Telematik telescoping system |
| Swingaway jib | Optional K/NZK swing-away jib 12.2m to 36m, mountable at 0, 22.5 or 45 degrees; optional hydraulic ram for 0 to 45 degrees; optional 7m lattice telescopic boom extension |
| Counterweight | 74 tonnes |
| Weight and axle loads | 12 tonnes per axle, 60 tonnes in total |
| Outriggers | 4-point, hydraulically telescoping horizontally and vertically, remote control, automatic levelling, electronic inclination display |
| Axle lines | 5, all steered; 10 x 8 drive optional (additional drive of axle 1) |
| Tyres and width | 10 tyres, 385/95 R25 standard; 445/95 R25 or 525/80 R25 optional |
| Suspension | Hydropneumatic with automatic levelling, all axles, hydraulically lockable |
| Engine | Liebherr 6-cylinder diesel, 370kW (503hp), 2,355Nm |
| Crane drive | Liebherr 4-cylinder diesel, 180kW (245hp), 920Nm; diesel-hydraulic with 5 axial piston variable displacement pumps and 1 double gear pump |
| Transmission | ZF 12-speed AS-TRONIC automated, ZF intarder, two-stage transfer case |
| Control and safety | LICCON computer control, LICCON2 safe load indicator, test system, hoist limit switch, safety valves against pipe and hose ruptures |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Liebherr LTM 1220-5.2 compared with similar cranes
| This craneLiebherr LTM 1220-5.2 | Tadano ATF 220G-5 | Liebherr LTM 1230-5.1 | Liebherr LTM 1200-5.1 | |
|---|---|---|---|---|
| Maximum capacity | 220 tonnes | 220 tonnes | 230 tonnes | 200 tonnes |
| Main boom | 13.3m to 60m | 13.2m to 68m | 12.7m to 75m | 13.2m to 72m |
| Swingaway jib | 12.2m to 36m | 13.2m to 37.2m | Not stated | 12.2m to 36m |
| Jib | Not stated | Not stated | Up to 43m | Not stated |
| Counterweight | 74 tonnes | 71 tonnes | 52 to 72 tonnes | 72 tonnes |
| Axle lines | 5 | 5 | 5 | 5 |
