All-terrain crane

Liebherr LTM 1230-5.1

The Liebherr LTM 1230-5.1 is a 230 tonne, five axle all-terrain crane with a 75m main boom, supplied with an operator for crane hire or as part of a contract lift.

Maximum capacity: 230 tonnes
Main boom: 12.7m to 75m
Jib: Up to 43mFixed lattice jib 8m to 43m; swing-away jib 11.5m to 20m
Counterweight: 52 to 72 tonnes
Axle lines: 5

Download the Liebherr LTM 1230-5.1 spec sheet

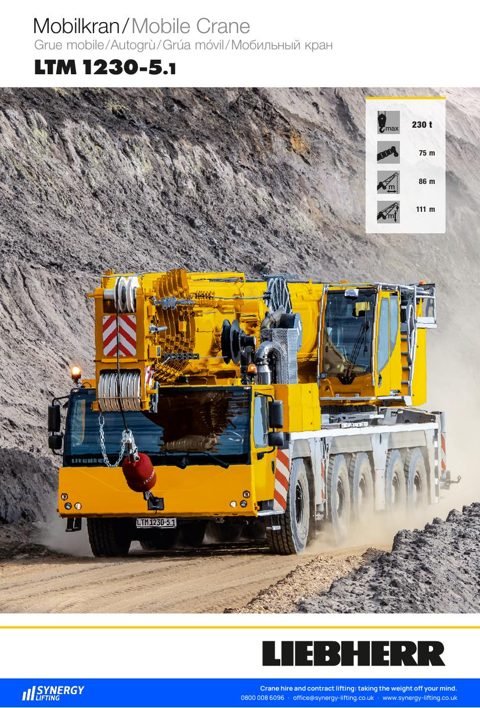

Liebherr LTM 1230-5.1 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 66 pages, 7.1MB.

Download the spec sheet

Specification

Item	Specification
Manufacturer	Liebherr
Model	LTM 1230-5.1
Type	All-terrain crane
Maximum capacity	230 tonnes at 3m radius
Main boom	12.7m to 75m, base section and 7 telescopic sections, TELEMATIK telescoping system
Jib	Double swing-away jib (K) 11.5m to 20m, offset 0, 20 or 40 degrees; hydraulically adjustable swing-away jib (NZK) 11.5m to 20m, 0 to 40 degrees; fixed lattice jib (NZF) 8m to 43m, hydraulic adjustment 0 to 45 degrees; powerful jib (S) 4m to 39m at 0 degrees; telescopic boom extension 3 x 7m
Counterweight	52 tonnes basic; up to 72 tonnes with the optional additional 20 tonnes; VarioBallast radius 4.83m or 5.73m
Weight and axle loads	Up to 12 tonnes per axle, up to 60 tonnes in total, for on-road driving
Outriggers	4-point, hydraulically telescoping horizontally and vertically, automatic levelling, electronic inclination indicator
Axle lines	5, all steered; 10 x 8 drive optional (additional drive of axle 3)
Tyres and width	10 tyres, 385/95 R25 standard; 445/95 R25 or 525/80 R25 optional
Suspension	Niveaumatik hydropneumatic, all axles, hydraulically lockable
Engine	Liebherr 6-cylinder diesel, 400kW (544hp), 2,516Nm; single engine, crane hydraulics driven mechanically from the carrier
Transmission	ZF 12-speed automated, ZF intarder, two-stage transfer case
Control and safety	Electric Load Sensing control, LICCON2 safe load indicator, test system, hoist limit switch, safety valves against pipe and hose ruptures
Ownership	Supplied. Our owned cranes are the electric pick and carry machines

Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
