All-terrain crane
Terex Demag AC 80-2
The Terex Demag AC 80-2 is an 80 tonne, four axle all-terrain crane with a 50m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 80 tonnes
- Main boom
- 10.9m to 50m
- Swingaway jib
- 9.2m or 17.6mOptional
- Counterweight
- 8 to 18 tonnes
- Axle lines
- 4

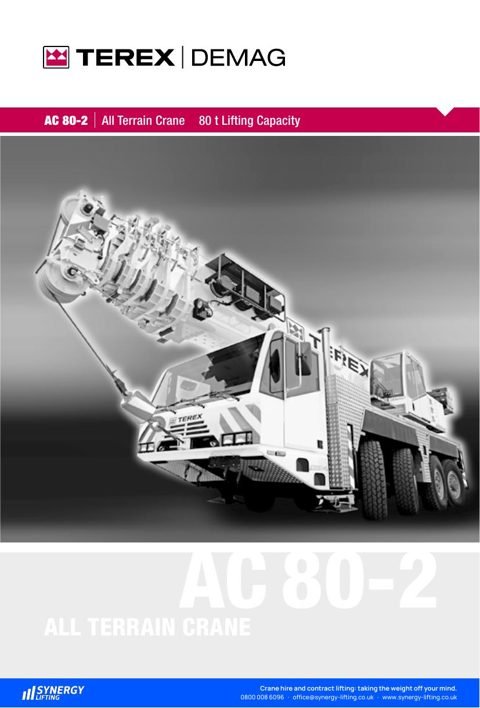

Download the Terex Demag AC 80-2 spec sheet
Terex Demag AC 80-2 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 22 pages, 1.9MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Terex Demag |
| Model | AC 80-2 |
| Type | All-terrain crane |
| Maximum capacity | 80 tonnes |
| Main boom | 10.9m to 50m, boom base and 5 telescopic sections, ovaloid profile |
| Boom angle | -1.8 to +81.5 degrees |
| Swingaway jib | Optional 1 or 2 part folding jib, 9.2m or 17.6m, offset 0, 20 and 40 degrees; optional 1.2m heavy-lift runner |
| Counterweight | 8 tonnes in sections of 5.1t, 1.7t and 1.2t; up to 18 tonnes with the optional additional 10 tonnes, installed hydraulically by the crane |
| Weight and axle loads | 12,000kg per axle, 48,000kg in total, with main boom, 3-sheave hookblock, 8t counterweight and 14.00 R 25 tyres |
| Outriggers | 4 hydraulically telescoping beams with hydraulic jacks, base 7.70m x 7.00m |
| Axle lines | 4, axles 1, 2 and 4 steered and driven (8 x 6 x 6; 8 x 8 x 8 optional) |
| Tyres and width | 14.00 R 25 single wheels standard; 16.00 R 25, 17.5 R 25 or 20.5 R 25 optional |
| Suspension | Hydropneumatic, all axles hydraulically blockable |
| Engine | DaimlerChrysler OM 501 LA 6-cylinder diesel, 315kW (428HP) at 1,800rpm; superstructure driven off the carrier engine |
| Transmission | Allison 6 speed automatic, transfer case with off-road range |
| Control and safety | Hydraulic pilot control, electronic safe load indicator, working range limitation, hoist limit switches, ABS |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Terex Demag AC 80-2 compared with similar cranes
| This craneTerex Demag AC 80-2 | Grove GMK4080-1 | Grove GMK4080-3 | Grove GMK4080L | |
|---|---|---|---|---|
| Maximum capacity | 80 tonnes | 80 tonnes | 80 tonnes | 80 tonnes |
| Main boom | 10.9m to 50m | 11m to 51m | 11m to 51m | 11.3m to 60m |
| Swingaway jib | 9.2m or 17.6m | 8.7m or 15m | 8.7m or 15m | 8.7m or 15m |
| Maximum tip height | Not stated | 54m | 54m | 63m |
| Counterweight | 8 to 18 tonnes | 9.3 to 19.3 tonnes | 14.8 tonnes | 19.1 tonnes |
| Carrier width | Not stated | Not stated | 2.55m | Not stated |
| Axle lines | 4 | 4 | 4 | 4 |
| More detail | Download spec sheet | View Grove GMK4080-1 | View Grove GMK4080-3 | View Grove GMK4080L |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
