All-terrain crane
Grove GMK4080L
The Grove GMK4080L is an 80 tonne, four axle all-terrain crane with a 60m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 80 tonnes
- Main boom
- 11.3m to 60m
- Swingaway jib
- 8.7m or 15mOptional
- Maximum tip height
- 63mOn the main boom
- Counterweight
- 19.1 tonnes
- Axle lines
- 4
Download the Grove GMK4080L spec sheet

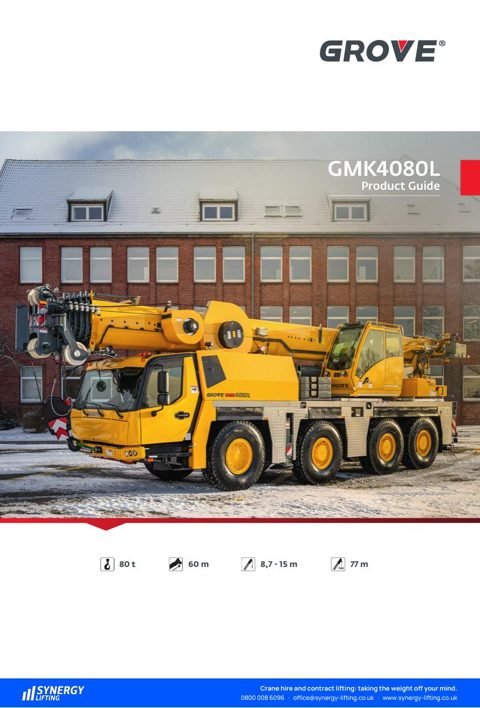

Grove GMK4080L specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 32 pages, 4.8MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Grove (Manitowoc) |
| Model | GMK4080L |
| Type | All-terrain crane |
| Maximum capacity | 80 tonnes |
| Main boom | 11.3m to 60m, seven section TWIN-LOCK |
| Boom angle | -1.5 to +83 degrees |
| Maximum tip height | 63m on the main boom |
| Swingaway jib | Optional bi-fold 8.7m or 15m, hydraulic offset and luffing under load 0 to 40 degrees, or manual offset at 0, 20 and 40 degrees; 1.8m heavy duty jib (26t maximum capacity, 6 parts of line) |
| Counterweight | 19.1 tonnes in sections, hydraulic removal from the crane cab |
| Weight and axle loads | 10, 12 or 16.5 tonnes per axle line depending on counterweight carried: 40 tonnes in total with 5.2t counterweight (8×4, 385/95 tyres, 1 sheave hookblock); 48 tonnes with 13.3t counterweight (8×4, 385/95 tyres, 1 sheave hookblock); under 66 tonnes with 19.1t counterweight (8×6, 445/95 tyres, 5 sheave hookblock, 15m swingaway) |
| Outriggers | 4 hydraulically telescoping beams, automatic levelling |
| Axle lines | 4, all steered, lines 3 and 4 driven (8x4x8; 8x6x8 optional) |
| Tyres and width | 385/95 R25 (14.00 R25) standard; 445/95 R25 (16.00 R25) at 2.59m wide; 525/80 R25 (20.5 R25) at 2.85m wide |
| Suspension | MEGATRAK independent hydropneumatic, all wheels, with hydraulic lockout |
| Engine | Mercedes-Benz OM470LA six cylinder diesel, 300kW at 1,600rpm, single engine for carrier and crane, EUROMOT 5 / Tier 4 Final (Tier 3 optional) |
| Transmission | Mercedes G 230, 12 forward and 2 reverse |
| Control and safety | Crane Control System (CCS), load moment indicator, independent anti-two-block with control lever lock-out |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Grove GMK4080L compared with similar cranes
| This craneGrove GMK4080L | Grove GMK4080-1 | Grove GMK4080-3 | Terex Demag AC 80-2 | |
|---|---|---|---|---|
| Maximum capacity | 80 tonnes | 80 tonnes | 80 tonnes | 80 tonnes |
| Main boom | 11.3m to 60m | 11m to 51m | 11m to 51m | 10.9m to 50m |
| Swingaway jib | 8.7m or 15m | 8.7m or 15m | 8.7m or 15m | 9.2m or 17.6m |
| Maximum tip height | 63m | 54m | 54m | Not stated |
| Counterweight | 19.1 tonnes | 9.3 to 19.3 tonnes | 14.8 tonnes | 8 to 18 tonnes |
| Carrier width | Not stated | Not stated | 2.55m | Not stated |
| Axle lines | 4 | 4 | 4 | 4 |
| More detail | Download spec sheet | View Grove GMK4080-1 | View Grove GMK4080-3 | View Terex Demag AC 80-2 |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
