All-terrain crane
Grove GMK4080-1
The Grove GMK4080-1 is an 80 tonne, four axle all-terrain crane with a 51m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

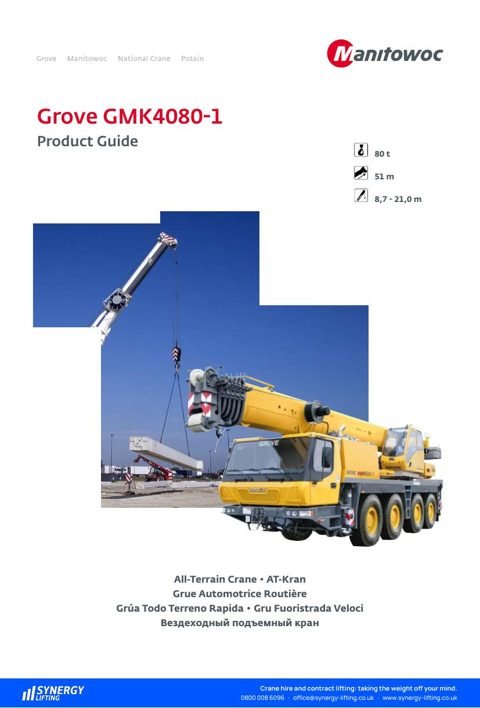

Download the Grove GMK4080-1 spec sheet
Grove GMK4080-1
Download the manufacturer’s specification sheet (PDF · 28 pages · 1.6MB).
Key figures
Grove GMK4080-1 key figures
- Maximum capacity
- 80 tonnes
- Main boom
- 11m to 51m
- Swingaway jib
- 8.7m or 15m21m lattice extension optional
- Maximum tip height
- 54mOn the main boom
- Counterweight
- 9.3 to 19.3 tonnes
- Axle lines
- 4
Specification
Grove GMK4080-1 specification
| Item | Specification |
|---|---|
| Manufacturer | Grove (Manitowoc) |
| Model | GMK4080-1 |
| Type | All-terrain crane |
| Maximum capacity | 80 tonnes |
| Main boom | 11m to 51m, six section TWIN-LOCK |
| Boom angle | -3 to +82 degrees |
| Maximum tip height | 54m on the main boom |
| Swingaway jib | Optional bi-fold 8.7m or 15m, hydraulic offset and luffing under load 0 to 40 degrees, or manual offset at 0, 20 and 40 degrees; optional 21m lattice extension (6m fixed non-offsettable section plus the 8.7m or 15m swingaway) |
| Counterweight | 9.3 tonnes in sections, hydraulic removal system; up to 19.3 tonnes with the optional additional 10 tonnes |
| Weight and axle loads | 12 tonnes per axle line, 48 tonnes in total, with 9.3t counterweight, 16.00 R25 tyres, 8.7m or 15m bi-fold swingaway and 40t hookblock |
| Outriggers | 4 double hydraulically telescoping beams, automatic levelling |
| Axle lines | 4, all steered, lines 1, 3 and 4 driven (8x6x8; 8x8x8 optional) |
| Tyres and width | 385/95 R25 (14.00 R25) standard; 445/95 R25 (16.00 R25) at 2.75m wide; 525/80 R25 (20.5 R25) optional |
| Suspension | MEGATRAK independent hydropneumatic, all wheels, with hydraulic lockout |
| Engine | Mercedes-Benz OM501LA six cylinder diesel, 290kW (389HP) at 1,800rpm |
| Transmission | ZF-AS TRONIC automatic, 12 forward and 2 reverse |
| Control and safety | ECOS electronic control, load moment indicator, independent anti-two-block with control lever lock-out |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Grove GMK4080-1 compared with similar cranes
| This craneGrove GMK4080-1 | Grove GMK4080-3 | Grove GMK4080L | Terex Demag AC 80-2 | |
|---|---|---|---|---|
| Maximum capacity | 80 tonnes | 80 tonnes | 80 tonnes | 80 tonnes |
| Main boom | 11m to 51m | 11m to 51m | 11.3m to 60m | 10.9m to 50m |
| Swingaway jib | 8.7m or 15m | 8.7m or 15m | 8.7m or 15m | 9.2m or 17.6m |
| Maximum tip height | 54m | 54m | 63m | Not stated |
| Counterweight | 9.3 to 19.3 tonnes | 14.8 tonnes | 19.1 tonnes | 8 to 18 tonnes |
| Carrier width | Not stated | 2.55m | Not stated | Not stated |
| Axle lines | 4 | 4 | 4 | 4 |
