City crane
Terex Demag AC 70 City
The Terex Demag AC 70 City is a 70 tonne, four axle city crane with a 52m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet
Download the Terex Demag AC 70 City spec sheet

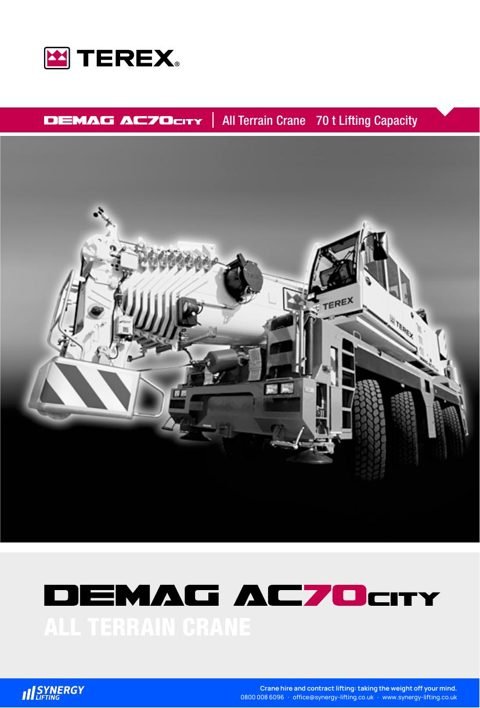

Terex Demag AC 70 City
Download the manufacturer’s specification sheet (PDF · 28 pages · 3.5MB).
Key figures
Terex Demag AC 70 City key figures
- Maximum capacity
- 70 tonnes
- Main boom
- 8m to 52m
- Swingaway jib
- 7.6m or 14mOptional
- Maximum tip height
- 67m
- Counterweight
- 6.3 to 12.1 tonnes
- Axle lines
- 4
Specification
Terex Demag AC 70 City specification
| Item | Specification |
|---|---|
| Manufacturer | Terex Demag |
| Model | AC 70 City |
| Type | City crane |
| Maximum capacity | 70 tonnes |
| Main boom | 8m to 52m, boom base and 8 telescopic sections, ovaloid profile, top section offsettable to 25 degrees |
| Boom angle | -10 to +78 degrees |
| Maximum tip height | 67m |
| Swingaway jib | Optional side-folding 1 or 2 part jib, 7.6m or 14m, offset 0, 20, 35 and 50 degrees; optional 5.9m extension insert for 71.4m system length; optional 1.5m heavy-lift runner, 25 tonnes maximum |
| Counterweight | 6.3 tonnes; up to 12.1 tonnes with the optional additional 5.8 tonnes in 2 sections with hydraulic rigging device |
| Weight and axle loads | 12,000kg per axle, 48,000kg in total, with main boom, 14m extension, 6.3t counterweight, 14.00 R 25 tyres and hookblock |
| Outriggers | 4 hydraulically telescoping beams with hydraulic jacks, base 7.45m x 6.55m |
| Axle lines | 4, all steered, axles 1 and 4 driven (8 x 4 x 8; 8 x 8 x 8 optional), independent rear axle steering |
| Tyres and width | 14.00 R 25 standard; 17.5 R 25 optional |
| Suspension | Hydropneumatic, hydraulically blockable |
| Engine | DaimlerChrysler OM 460 LA 6-cylinder diesel, 295kW (400HP) at 1,800rpm; superstructure powered by the carrier engine |
| Transmission | DaimlerChrysler G 210-16 electronically automated, 16 forward and 2 reverse |
| Control and safety | Demag IC-1 crane control with colour touchscreen, electronic load indicator, hoist limit switches, ABS |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Terex Demag AC 70 City compared with similar cranes
| This craneTerex Demag AC 70 City | Terex AC 55 City | Liebherr LTC 1050-3.1 | Liebherr LTC 1045-3.1 | |
|---|---|---|---|---|
| Maximum capacity | 70 tonnes | 55 tonnes | 50 tonnes | 45 tonnes |
| Main boom | 8m to 52m | 7.73m to 40m | 8.2m to 36m | 8.2m to 36m |
| Swingaway jib | 7.6m or 14m | 7.3m or 13.8m | 7.5m or 13m | 7.5m to 13m |
| Maximum tip height | 67m | Not stated | Not stated | Not stated |
| Counterweight | 6.3 to 12.1 tonnes | 3.6 to 8.8 tonnes | 6.5 tonnes | 6.5 tonnes |
| Axle lines | 4 | 3 | 3 | 3 |
