City crane
Liebherr LTC 1050-3.1
The Liebherr LTC 1050-3.1 is a 50 tonne, three axle city crane with a 36m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 50 tonnesOver the front, with an additional pulley block
- Main boom
- 8.2m to 36m
- Swingaway jib
- 7.5m or 13mOptional
- Counterweight
- 6.5 tonnesFixed
- Axle lines
- 3
Download the Liebherr LTC 1050-3.1 spec sheet

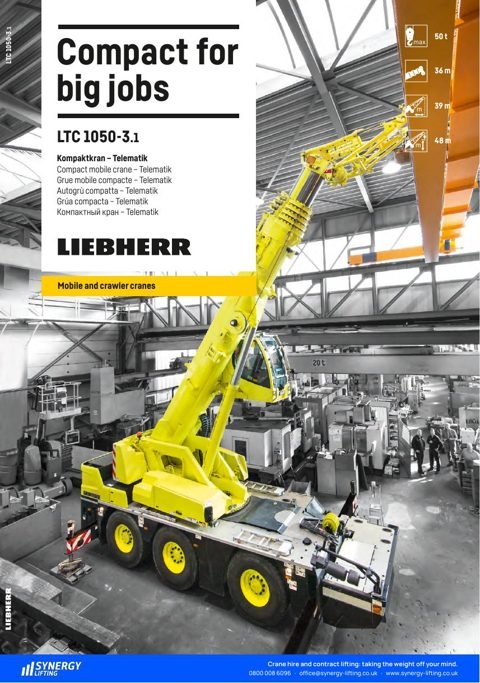

Liebherr LTC 1050-3.1 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 118 pages, 9.1MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTC 1050-3.1 |
| Type | City crane |
| Maximum capacity | 50 tonnes at 3m over the front; capacities above 45 tonnes only with an additional pulley block |
| Main boom | 8.2m to 36m, base section and 5 telescopic sections, Telematik telescoping system |
| Swingaway jib | Optional single folding jib 7.5m or double swingaway jib 7.5m to 13m, mechanical adjustment 0, 20, 40 and 60 degrees; optional 1.5m assembly jib built into the swingaway jib, for loads up to 25 tonnes |
| Counterweight | 6.5 tonnes basic counterweight, permanently mounted; optional special ballast of 4.8t basic plus 1.7t additional for 11 tonne axle loads |
| Weight and axle loads | Up to 12 tonnes per axle with 6.5t counterweight; up to 11 tonnes per axle with the optional 4.8t counterweight |
| Outriggers | 4-point hydraulic outriggers, remote control, automatic levelling, electronic inclination display; VarioBase optional |
| Axle lines | 3, all steered, axles 1 and 3 driven (6×6 optional) |
| Tyres and width | 385/95 R25 (14.00 R25) standard; 445/95 R25 (16.00 R25) optional; 525/80 R25 (20.5 R25) also listed in the crane data |
| Suspension | Hydropneumatic on all axles, hydraulically lockable |
| Engine | Cummins 6-cylinder diesel, 243kW (326hp), maximum torque 1,375Nm; also drives the crane |
| Transmission | ZF powershift gearbox with torque converter, lock-up clutch and integrated transfer box with longitudinal differential |
| Control and safety | LICCON2 safe load indicator, hoist limit switch, safety valves against pipe and hose rupture |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Liebherr LTC 1050-3.1 compared with similar cranes
| This craneLiebherr LTC 1050-3.1 | Liebherr LTC 1045-3.1 | Terex AC 55 City | Terex AC 40 City | |
|---|---|---|---|---|
| Maximum capacity | 50 tonnes | 45 tonnes | 55 tonnes | 40 tonnes |
| Main boom | 8.2m to 36m | 8.2m to 36m | 7.73m to 40m | 7.8m to 31.2m |
| Swingaway jib | 7.5m or 13m | 7.5m to 13m | 7.3m or 13.8m | 7.1m or 7.1m/13m |
| Counterweight | 6.5 tonnes | 6.5 tonnes | 3.6 to 8.8 tonnes | 5.45 tonnes |
| Axle lines | 3 | 3 | 3 | 3 |
| More detail | Download spec sheet | View Liebherr LTC 1045-3.1 | View Terex AC 55 City | View Terex AC 40 City |
Our guide explains how city cranes work and when to use one: What Is a City Crane?
See every crane we supply in the crane library.
