City crane
Liebherr LTC 1045-3.1
The Liebherr LTC 1045-3.1 is a 45 tonne, three axle city crane with a 36m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

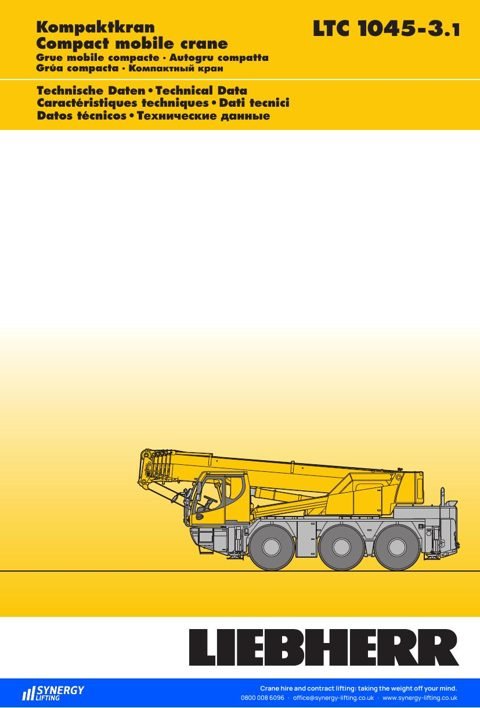

Download the Liebherr LTC 1045-3.1 spec sheet
Liebherr LTC 1045-3.1
Download the manufacturer’s specification sheet (PDF · 30 pages · 1.5MB).
Key figures
Liebherr LTC 1045-3.1 key figures
- Maximum capacity
- 45 tonnes
- Main boom
- 8.2m to 36m
- Swingaway jib
- 7.5m to 13mOptional
- Counterweight
- 6.5 tonnesFixed
- Axle lines
- 3
Specification
Liebherr LTC 1045-3.1 specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTC 1045-3.1 |
| Type | City crane |
| Maximum capacity | 45 tonnes |
| Main boom | 8.2m to 36m, base section and 5 telescopic sections, TELEMATIK telescoping system |
| Swingaway jib | Optional single or double swingaway jib 7.5m to 13m, mountable at 0, 20, 40 and 60 degrees; optional 1.5m erection jib built into the swingaway jib, for loads up to 25 tonnes |
| Counterweight | 6.5 tonnes basic counterweight, permanently mounted |
| Weight and axle loads | 12 tonnes per axle, 36 tonnes in total, with 6.5t counterweight and folding jib |
| Outriggers | 4-point hydraulic outriggers, remote control, automatic levelling, electronic inclination display |
| Axle lines | 3, all steered, axles 1 and 3 driven (6×6 optional) |
| Tyres and width | 385/95 R25 (14.00 R25) standard; 445/95 R25 (16.00 R25) optional |
| Suspension | Hydropneumatic on all axles, hydraulically lockable |
| Engine | Mercedes-Benz 6-cylinder diesel, 240kW (326hp), maximum torque 1,300Nm; also drives the crane |
| Transmission | ZF powershift gearbox with torque converter, lock-up clutch and integrated transfer box with longitudinal differential |
| Control and safety | LICCON2 safe load indicator, hoist limit switch, safety valves against pipe and hose rupture |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Liebherr LTC 1045-3.1 compared with similar cranes
| This craneLiebherr LTC 1045-3.1 | Terex AC 40 City | Liebherr LTC 1050-3.1 | Terex AC 55 City | |
|---|---|---|---|---|
| Maximum capacity | 45 tonnes | 40 tonnes | 50 tonnes | 55 tonnes |
| Main boom | 8.2m to 36m | 7.8m to 31.2m | 8.2m to 36m | 7.73m to 40m |
| Swingaway jib | 7.5m to 13m | 7.1m or 7.1m/13m | 7.5m or 13m | 7.3m or 13.8m |
| Counterweight | 6.5 tonnes | 5.45 tonnes | 6.5 tonnes | 3.6 to 8.8 tonnes |
| Axle lines | 3 | 3 | 3 | 3 |
