City crane
Terex Demag AC 30 City
The Terex Demag AC 30 City is a 30 tonne, two axle city crane with a 25m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 30 tonnes
- Main boom
- 7.5m to 25m
- Swingaway jib
- 7.1m or 13mOptional
- Maximum tip height
- 40mWith the optional boom extension
- Counterweight
- 2.3 tonnes
- Axle lines
- 2

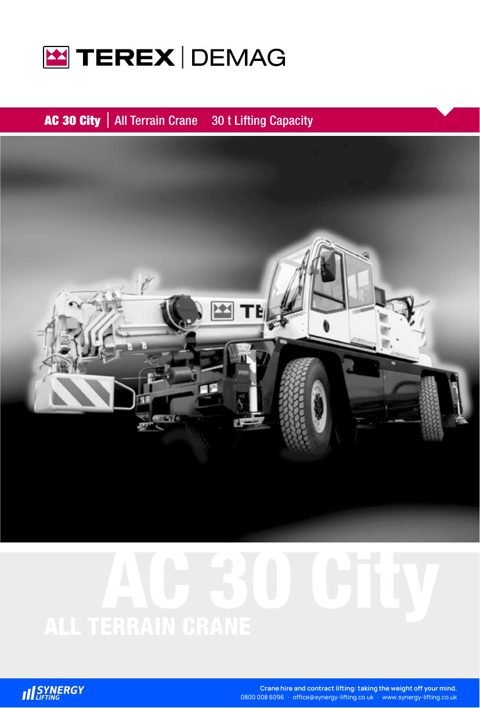

Download the Terex Demag AC 30 City spec sheet
Terex Demag AC 30 City specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 28 pages, 1.2MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Terex Demag |
| Model | AC 30 City |
| Type | City crane |
| Maximum capacity | 30 tonnes, with the heavy-lift attachment |
| Main boom | 7.5m to 25m, boom base and 3 telescopic sections |
| Boom angle | -10 to +78 degrees |
| Maximum tip height | 40m with the optional boom extension |
| Swingaway jib | Optional 1 or 2 part box type extension, 7.1m or 13m, offsettable at 0 and 30 degrees, folds to the right side of the boom base; optional 1.2m heavy-lift runner for workshop operation |
| Counterweight | 2.3 tonnes |
| Weight and axle loads | 22 tonnes in travel order: axle 1 10,000kg, axle 2 12,000kg |
| Outriggers | 4 hydraulic outriggers, maximum base 5.95m x 5.90m |
| Axle lines | 2, both steered, 4 x 4 x 4 drive, independent rear axle steering |
| Tyres and width | 445/65 R 22.5 standard; optional 14.00 R 25 at 2.42m overall crane width |
| Suspension | Hydropneumatic on all axles, hydraulically blockable |
| Engine | Cummins QSB 5.9 6-cylinder diesel, 172kW (234HP) at 2,300rpm; superstructure powered by the carrier engine |
| Transmission | Allison automatic with torque converter, 6 forward and 1 reverse |
| Control and safety | Two servo levers with hydro-electric pilot control, electronic safe load indicator and load moment limiter |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Terex Demag AC 30 City compared with similar cranes
| This craneTerex Demag AC 30 City | Terex AC 40 City | Liebherr LTC 1045-3.1 | Liebherr LTC 1050-3.1 | |
|---|---|---|---|---|
| Maximum capacity | 30 tonnes | 40 tonnes | 45 tonnes | 50 tonnes |
| Main boom | 7.5m to 25m | 7.8m to 31.2m | 8.2m to 36m | 8.2m to 36m |
| Swingaway jib | 7.1m or 13m | 7.1m or 7.1m/13m | 7.5m to 13m | 7.5m or 13m |
| Maximum tip height | 40m | Not stated | Not stated | Not stated |
| Counterweight | 2.3 tonnes | 5.45 tonnes | 6.5 tonnes | 6.5 tonnes |
| Axle lines | 2 | 3 | 3 | 3 |
| More detail | Download spec sheet | View Terex AC 40 City | View Liebherr LTC 1045-3.1 | View Liebherr LTC 1050-3.1 |
Our guide explains how city cranes work and when to use one: What Is a City Crane?
See every crane we supply in the crane library.
