City crane
Terex AC 40 City
The Terex AC 40 City is a 40 tonne, three axle city crane with a 31.2m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

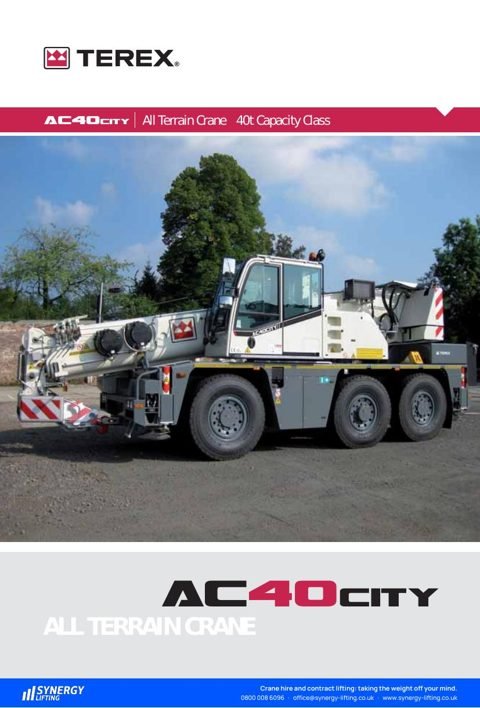

Download the Terex AC 40 City spec sheet
Terex AC 40 City
Download the manufacturer’s specification sheet (PDF · 24 pages · 1.6MB).
Key figures
Terex AC 40 City key figures
- Maximum capacity
- 40 tonnesWith the optional S1 heavy lift attachment; 33.4 tonnes standard
- Main boom
- 7.8m to 31.2m
- Swingaway jib
- 7.1m or 7.1m/13mOptional
- Counterweight
- 5.45 tonnes
- Axle lines
- 3
Specification
Terex AC 40 City specification
| Item | Specification |
|---|---|
| Manufacturer | Terex |
| Model | AC 40 City |
| Type | City crane |
| Maximum capacity | 40 tonnes with the optional S1 heavy lift attachment (5 boom head sheaves); 33.4 tonnes with the standard 4 sheave boom head |
| Main boom | 7.8m to 31.2m, fully hydraulic telescoping system |
| Swingaway jib | Optional folding swingaway jib 7.1m (HAV7) or double folding 7.1m/13m (HAV13), manual offset 30 degrees; optional 1.2m runner, 3 sheaves, 15 tonnes |
| Counterweight | 5.45 tonnes, 1 piece (SK1); optional 5.45 tonnes in 3 pieces (GG3) with optional self-rigging of 2.35 tonnes |
| Outriggers | H 4-point design, fully hydraulic vertical and horizontal movement, manual levelling from crane cab or either side of the carrier, 3 outrigger bases |
| Axle lines | 3, all steered, axles 1 and 3 driven (6x4x6); 6x6x6 optional; active rear axle steering on axles 2 and 3 |
| Tyres and width | 445/65 R 22.5 (18.00 R 22.5) standard; 385/95 R 25 (14.00 R 25) and 445/80 R 25 (17.50 R 25) optional |
| Suspension | Hydropneumatic with axle load compensation, hydraulically lockable, manual or automatic levelling |
| Engine | Daimler AG diesel, 205kW (279HP), 1,100Nm, Euromot 3a, Tier 3 and CARB |
| Transmission | Allison automated gearbox with torque converter, 6 forward and 1 reverse, 2-stage transfer case with off-road gear |
| Control and safety | Electronic load moment indicator with working range limiter, electrohydraulic pilot controls with 2 joysticks, crane data logger; wireless remote control optional |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Terex AC 40 City compared with similar cranes
| This craneTerex AC 40 City | Liebherr LTC 1045-3.1 | Terex Demag AC 30 City | Liebherr LTC 1050-3.1 | |
|---|---|---|---|---|
| Maximum capacity | 40 tonnes | 45 tonnes | 30 tonnes | 50 tonnes |
| Main boom | 7.8m to 31.2m | 8.2m to 36m | 7.5m to 25m | 8.2m to 36m |
| Swingaway jib | 7.1m or 7.1m/13m | 7.5m to 13m | 7.1m or 13m | 7.5m or 13m |
| Maximum tip height | Not stated | Not stated | 40m | Not stated |
| Counterweight | 5.45 tonnes | 6.5 tonnes | 2.3 tonnes | 6.5 tonnes |
| Axle lines | 3 | 3 | 2 | 3 |
