All-terrain crane
Terex Demag AC 140
The Terex Demag AC 140 is a 140 tonne, five axle all-terrain crane with a 60m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 140 tonnes
- Main boom
- 12.5m to 60m
- Swingaway jib
- 9.1m or 17mExtendable to 25m and 33m, optional
- Counterweight
- 39 tonnes
- Axle lines
- 5
Download the Terex Demag AC 140 spec sheet

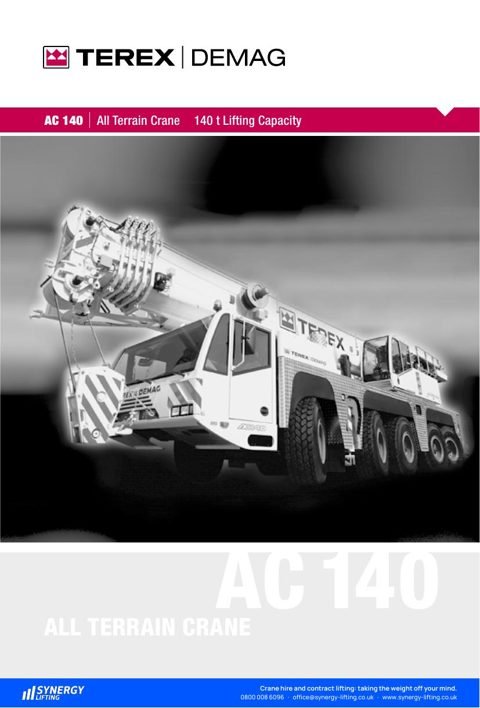

Terex Demag AC 140 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 24 pages, 3.5MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Terex Demag |
| Model | AC 140 |
| Type | All-terrain crane |
| Maximum capacity | 140 tonnes with heavy-lift attachment; 77.5 tonnes without |
| Main boom | 12.5m to 60m, boom base and 5 telescopic sections, ovaloid profile |
| Boom angle | -1.5 to +82 degrees |
| Swingaway jib | Optional 1 or 2 part foldaway jib, 9.1m or 17m, extendable to 25m and 33m, offset 0, 20 and 40 degrees; optional 1.5m runner |
| Counterweight | 39 tonnes, divisible, hydraulically stowable on the carrier |
| Weight and axle loads | 12,000kg per axle, 60,000kg in total, with 1-sheave hookblock and 8t counterweight |
| Outriggers | 4 telescopic outriggers, fully hydraulic horizontal and vertical extension |
| Axle lines | 5, axles 1, 2, 4 and 5 steered, axles 2 to 5 driven (10 x 8 x 8), speed-dependent rear axle steering |
| Tyres and width | 14.00 R 25 standard; 16.00 R 25, 17.5 R 25 and 20.5 R 25 optional |
| Suspension | Hydropneumatic on all axles, hydraulically lockable |
| Engine | DaimlerChrysler OM 502 LA 8-cylinder diesel, 390kW (530HP) at 1,800rpm |
| Crane drive | DaimlerChrysler OM 904 LA 4-cylinder diesel, 129kW (175HP) at 2,200rpm |
| Transmission | ZF AS-Tronic automated, 16 forward and 2 reverse, integrated retarder |
| Control and safety | Demag IC-1 crane control with touchscreen, electronic safe load indicator and load moment limiter, outrigger loading indicator, working range limitation (virtual walls), ABS |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Terex Demag AC 140 compared with similar cranes
| This craneTerex Demag AC 140 | Terex AC 140 Compact | Liebherr LTM 1130-5.1 | Grove GMK5150-1 | |
|---|---|---|---|---|
| Maximum capacity | 140 tonnes | 140 tonnes | 130 tonnes | 150 tonnes |
| Main boom | 12.5m to 60m | 12.5m to 60m | 12.7m to 60m | 12.8m to 50.8m |
| Swingaway jib | 9.1m or 17m | 9m or 17m | 10.8m to 19m | 11.2m or 17.8m |
| Maximum tip height | Not stated | Not stated | Not stated | 53.8m |
| Counterweight | 39 tonnes | 32.5 to 43 tonnes | 29.3 to 42 tonnes | 44.5 tonnes |
| Axle lines | 5 | 5 | 5 | 5 |
| More detail | Download spec sheet | View Terex AC 140 Compact | View Liebherr LTM 1130-5.1 | View Grove GMK5150-1 |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
