All-terrain crane
Liebherr LTM 1130-5.1
The Liebherr LTM 1130-5.1 is a 130 tonne, five axle all-terrain crane with a 60m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

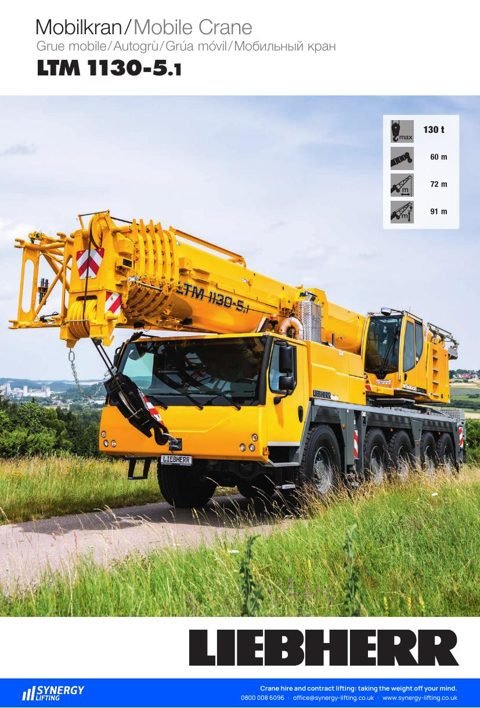

Download the Liebherr LTM 1130-5.1 spec sheet
Liebherr LTM 1130-5.1
Download the manufacturer’s specification sheet (PDF · 54 pages · 2.9MB).
Key figures
Liebherr LTM 1130-5.1 key figures
- Maximum capacity
- 130 tonnes
- Main boom
- 12.7m to 60m
- Swingaway jib
- 10.8m to 19m
- Counterweight
- 29.3 to 42 tonnes
- Axle lines
- 5
Specification
Liebherr LTM 1130-5.1 specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1130-5.1 |
| Type | All-terrain crane |
| Maximum capacity | 130 tonnes |
| Main boom | 12.7m to 60m, base section and 5 telescopic sections, TELEMATIK rapid-cycle telescoping |
| Swingaway jib | Double swing-away jib 10.8m to 19m, adjustable to 0, 20 or 40 degrees, or hydraulically adjustable 0 to 40 degrees; 2 x 7m telescopic boom extension; 2.9m erection jib |
| Counterweight | 29.3 tonnes; up to 42 tonnes with the optional additional 12.7 tonnes |
| Weight and axle loads | 12 tonnes per axle line, 60 tonnes in total, with 9t counterweight |
| Outriggers | 4-point, hydraulically telescoping horizontally and vertically, remote control, automatic levelling, electronic inclination display |
| Axle lines | 5, all steered; 10×8 drive optional (first axle additionally driven) |
| Tyres and width | 10 tyres, 385/95 R25 standard; 445/95 R25 and 525/80 R25 optional |
| Suspension | Niveaumatik hydropneumatic on all axles, hydraulically lockable |
| Engine | Liebherr 6-cylinder diesel, water cooled, 400kW (544hp), 2,516Nm maximum torque |
| Crane drive | Liebherr 4-cylinder diesel in the superstructure, 129kW (175hp), diesel-hydraulic |
| Transmission | ZF 12-speed automated gearbox with ZF intarder, two-stage transfer case |
| Control and safety | Electric load sensing control, LICCON2 safe load indicator, test system, hoist limit switch, pipe and hose rupture safety valves; optional lift cab, eye level 8.10m |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Liebherr LTM 1130-5.1 compared with similar cranes
| This craneLiebherr LTM 1130-5.1 | Grove GMK5120L | Liebherr LTM 1120-4.1 | Terex Demag AC 120-1 | |
|---|---|---|---|---|
| Maximum capacity | 130 tonnes | 120 tonnes | 120 tonnes | 120 tonnes |
| Main boom | 12.7m to 60m | 12.2m to 66m | 12.3m to 66m | 12.5m to 60m |
| Swingaway jib | 10.8m to 19m | 9.4m or 16m | 10.8m to 19m | 9.1m or 17m |
| Maximum tip height | Not stated | 69m | Not stated | Not stated |
| Counterweight | 29.3 to 42 tonnes | 35.5 tonnes | 20 to 31 tonnes | 40.4 tonnes |
| Carrier width | Not stated | Not stated | Not stated | 2.75m |
| Axle lines | 5 | 5 | 4 | 5 |
