All-terrain crane
Terex AC 140 Compact
The Terex AC 140 Compact is a 140 tonne, five axle all-terrain crane with a 60m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

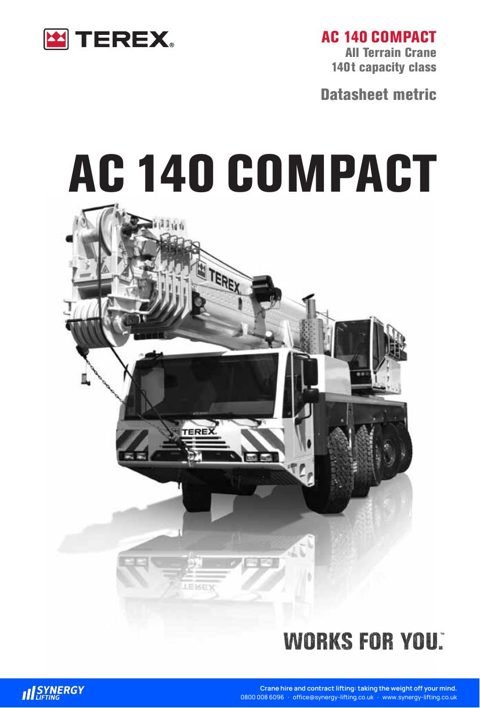

Download the Terex AC 140 Compact spec sheet
Terex AC 140 Compact
Download the manufacturer’s specification sheet (PDF · 42 pages · 2.0MB).
Key figures
Terex AC 140 Compact key figures
- Maximum capacity
- 140 tonnesCapacity class
- Main boom
- 12.5m to 60m
- Swingaway jib
- 9m or 17mOptional
- Counterweight
- 32.5 to 43 tonnes
- Axle lines
- 5
Specification
Terex AC 140 Compact specification
| Item | Specification |
|---|---|
| Manufacturer | Terex |
| Model | AC 140 Compact |
| Type | All-terrain crane |
| Maximum capacity | 140 tonnes (capacity class); boom head rated 77.7 tonnes with the standard 5 sheaves, 92.3 tonnes with optional S1V and 120 tonnes with optional S2V heavy lift attachment |
| Main boom | 12.5m to 60m, single cylinder automatic telescoping system |
| Swingaway jib | Optional double folding swingaway jib 9m or 17m (HAV17), manual offset 20 or 40 degrees; optional 8m or 16m variable telescopic boom extension (VA16) for use with the jib; optional 1.5m fixed assembly jib, 32 tonnes |
| Counterweight | 32.5 tonnes in 8 pieces with automatic rigging system; up to 43 tonnes with the optional additional 10.6 tonnes; 22.8 tonnes can be carried on board |
| Outriggers | H 4-point design, fully hydraulic vertical and horizontal movement, manual or automatic levelling, 4 outrigger bases, outrigger load indicator in the crane cab |
| Axle lines | 5, axles 2, 4 and 5 driven, axles 1, 2, 4 and 5 steered, axle 3 liftable (10x6x8); 10x8x8 optional; active rear axle steering on axles 4 and 5 |
| Tyres and width | 385/95R25 (14.00R25) standard; 445/95R25 (16.00R25) optional |
| Suspension | Hydropneumatic with axle load compensation, hydraulically lockable, manual or automatic levelling |
| Engine | MTU (Mercedes) diesel, 350kW (476HP), 2,300Nm, Euromot 3a, Tier 3 and CARB |
| Crane drive | MTU (Mercedes) diesel, 129kW (175HP), 675Nm, Euromot 3a, Tier 3 and CARB |
| Transmission | ZF AS-Tronic automated gearbox with integrated hydraulic retarder, 16 forward and 2 reverse, 2-stage transfer case with off-road gear |
| Control and safety | IC-1 control with integrated load moment indicator to EN13000, colour display, working range limiter, crane data logger, anemometer |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Terex AC 140 Compact compared with similar cranes
| This craneTerex AC 140 Compact | Terex Demag AC 140 | Liebherr LTM 1130-5.1 | Grove GMK5150-1 | |
|---|---|---|---|---|
| Maximum capacity | 140 tonnes | 140 tonnes | 130 tonnes | 150 tonnes |
| Main boom | 12.5m to 60m | 12.5m to 60m | 12.7m to 60m | 12.8m to 50.8m |
| Swingaway jib | 9m or 17m | 9.1m or 17m | 10.8m to 19m | 11.2m or 17.8m |
| Maximum tip height | Not stated | Not stated | Not stated | 53.8m |
| Counterweight | 32.5 to 43 tonnes | 39 tonnes | 29.3 to 42 tonnes | 44.5 tonnes |
| Axle lines | 5 | 5 | 5 | 5 |
