All-terrain crane
Terex Demag AC 100
The Terex Demag AC 100 is a 100 tonne, five axle all-terrain crane with a 50.2m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

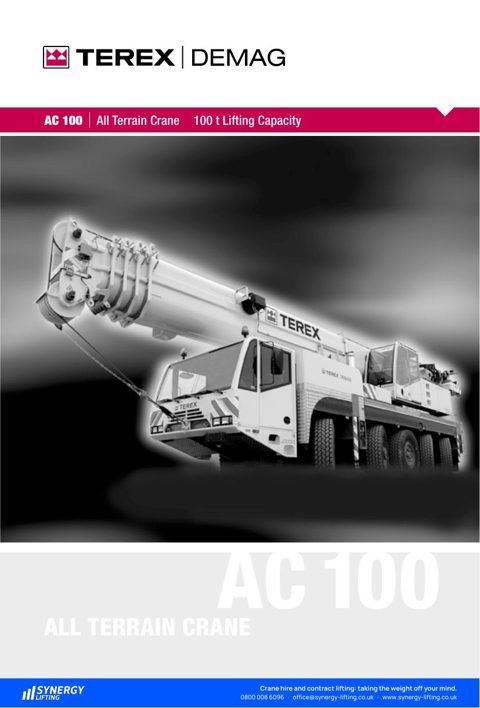

Download the Terex Demag AC 100 spec sheet
Terex Demag AC 100
Download the manufacturer’s specification sheet (PDF · 30 pages · 1.9MB).
Key figures
Terex Demag AC 100 key figures
- Maximum capacity
- 100 tonnes
- Main boom
- 12.5m to 50.2m
- Swingaway jib
- 9.2m or 17mExtensible to 25m and 33m, optional
- Counterweight
- 25 to 32 tonnes
- Axle lines
- 5
Specification
Terex Demag AC 100 specification
| Item | Specification |
|---|---|
| Manufacturer | Terex Demag |
| Model | AC 100 |
| Type | All-terrain crane |
| Maximum capacity | 100 tonnes |
| Main boom | 12.5m to 50.2m, boom base and 4 telescopic sections, ovaloid profile |
| Boom angle | -1.8 to +82 degrees |
| Swingaway jib | Optional 1 or 2 part foldaway jib, 9.2m or 17m, offset 0, 20 and 40 degrees, extensible to 25m and 33m; optional 1.5m runner for working inside buildings |
| Counterweight | 25 tonnes; up to 32 tonnes with the optional additional 7 tonnes, installed hydraulically by the crane |
| Weight and axle loads | Under 10,000kg per axle, under 48,000kg in total, with hookblock, 2t counterweight and 14.00 R 25 tyres; 12,000kg per axle, 60,000kg in total, with hookblock, 13.3t counterweight and 16.00 R 25 tyres |
| Outriggers | 4 hydraulically telescoping beams with hydraulic jacks, base 7.10m x 7.00m |
| Axle lines | 5, axles 1, 2 and 4 steered, axles 2, 4 and 5 driven (10 x 6 x 8; 10 x 8 x 8 optional); optional modular axle |
| Tyres and width | 14.00 R 25 single wheels standard; 16.00 R 25 optional |
| Suspension | Hydropneumatic, all axles hydraulically blockable |
| Engine | DaimlerChrysler OM 502 LA 8-cylinder diesel, 350kW (476HP) at 1,800rpm |
| Crane drive | DaimlerChrysler OM 904 LA 4-cylinder diesel, 129kW (175HP) at 2,200rpm |
| Transmission | Automated, 16 ranges, transfer case with longitudinal differential lock |
| Control and safety | Hydro-electric pilot control, electronic load indicator, hoist limit switches, anti-lock brakes |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Terex Demag AC 100 compared with similar cranes
| This craneTerex Demag AC 100 | Grove GMK4100 | Grove GMK4100L | Liebherr LTM 1100-4.2 | |
|---|---|---|---|---|
| Maximum capacity | 100 tonnes | 100 tonnes | 100 tonnes | 100 tonnes |
| Main boom | 12.5m to 50.2m | 11.3m to 52m | 11.65m to 60m | 11.5m to 60m |
| Swingaway jib | 9.2m or 17m | 10m or 17m | 10m or 17m | 10.8m to 19m |
| Maximum tip height | Not stated | 55m | 63m | Not stated |
| Counterweight | 25 to 32 tonnes | 6.3 to 26.1 tonnes | 6.3 to 26.1 tonnes | 17.2 to 28.2 tonnes |
| Axle lines | 5 | 4 | 4 | 4 |
