All-terrain crane
Grove GMK4100L
The Grove GMK4100L is a 100 tonne, four axle all-terrain crane with a 60m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

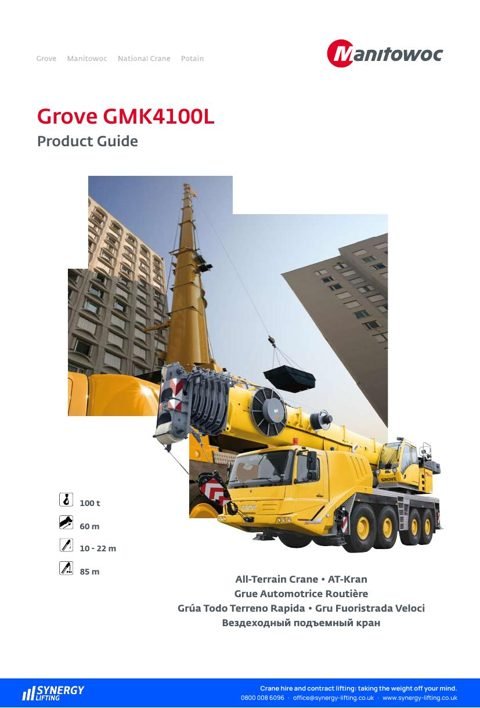

Download the Grove GMK4100L spec sheet
Grove GMK4100L
Download the manufacturer’s specification sheet (PDF · 36 pages · 1.7MB).
Key figures
Grove GMK4100L key figures
- Maximum capacity
- 100 tonnes
- Main boom
- 11.65m to 60m
- Swingaway jib
- 10m or 17m22m lattice extension optional
- Maximum tip height
- 63mOn the main boom
- Counterweight
- 6.3 to 26.1 tonnes
- Axle lines
- 4
Specification
Grove GMK4100L specification
| Item | Specification |
|---|---|
| Manufacturer | Grove (Manitowoc) |
| Model | GMK4100L |
| Type | All-terrain crane |
| Maximum capacity | 100 tonnes |
| Main boom | 11.65m to 60m, seven section TWIN-LOCK |
| Boom angle | -1.5 to +82 degrees |
| Maximum tip height | 63m on the main boom |
| Swingaway jib | Optional bi-fold 10m or 17m, hydraulic offset and luffing under load 0 to 40 degrees, or manual offset at 0, 20 and 40 degrees; optional 22m lattice extension (1 x 5m fixed non-offsettable section plus the 10m or 17m swingaway) |
| Counterweight | 6.3 tonnes in sections, hydraulic removal system; up to 26.1 tonnes with the optional additional 19.8 tonnes |
| Weight and axle loads | 12 tonnes per axle line, 48 tonnes in total, with 6.3t counterweight and 40t hookblock |
| Outriggers | 4 hydraulically telescoping beams, automatic levelling |
| Axle lines | 4, all steered, lines 1, 3 and 4 driven (8x6x8; 8x8x8 optional) |
| Tyres and width | 385/95 R25 (14.00 R25) standard; 445/95 R25 (16.00 R25) at 2.75m wide; 525/80 R25 (20.5 R25) at 2.88m wide |
| Suspension | MEGATRAK independent hydropneumatic, all wheels, with hydraulic lockout |
| Engine | Mercedes-Benz OM 460 LA six cylinder diesel, 295kW (401HP) at 1,800rpm |
| Crane drive | Mercedes-Benz OM 904 LA four cylinder diesel, 129kW (175HP) at 2,200rpm |
| Transmission | Daimler Chrysler G 240-16 with Electronic Pneumatic Shifting, 16 forward and 2 reverse |
| Control and safety | ECOS electronic control, load moment indicator, independent anti-two-block with control lever lock-out |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Grove GMK4100L compared with similar cranes
| This craneGrove GMK4100L | Grove GMK4100 | Liebherr LTM 1100-4.2 | Liebherr LTM 1100-5.1 | |
|---|---|---|---|---|
| Maximum capacity | 100 tonnes | 100 tonnes | 100 tonnes | 100 tonnes |
| Main boom | 11.65m to 60m | 11.3m to 52m | 11.5m to 60m | 11.5m to 52m |
| Swingaway jib | 10m or 17m | 10m or 17m | 10.8m to 19m | 10.8m to 19m |
| Maximum tip height | 63m | 55m | Not stated | Not stated |
| Counterweight | 6.3 to 26.1 tonnes | 6.3 to 26.1 tonnes | 17.2 to 28.2 tonnes | 15 to 35 tonnes |
| Axle lines | 4 | 4 | 4 | 5 |
