All-terrain crane
Liebherr LTM 1100-4.2
The Liebherr LTM 1100-4.2 is a 100 tonne, four axle all-terrain crane with a 60m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

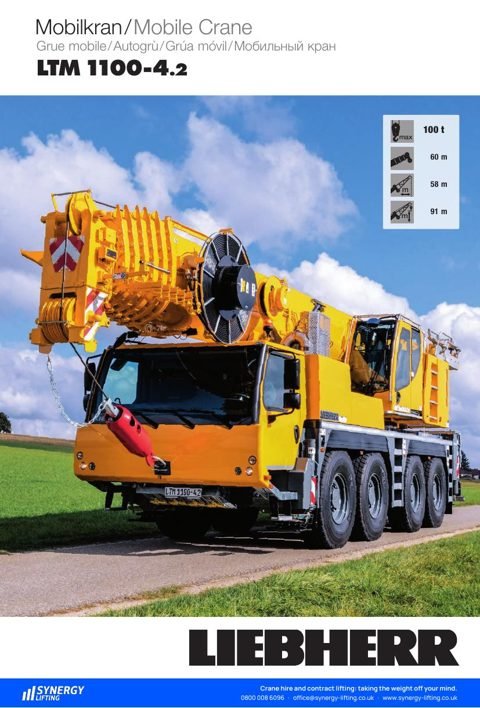

Download the Liebherr LTM 1100-4.2 spec sheet
Liebherr LTM 1100-4.2
Download the manufacturer’s specification sheet (PDF · 32 pages · 2.2MB).
Key figures
Liebherr LTM 1100-4.2 key figures
- Maximum capacity
- 100 tonnes
- Main boom
- 11.5m to 60m
- Swingaway jib
- 10.8m to 19m
- Counterweight
- 17.2 to 28.2 tonnes
- Axle lines
- 4
Specification
Liebherr LTM 1100-4.2 specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1100-4.2 |
| Type | All-terrain crane |
| Maximum capacity | 100 tonnes |
| Main boom | 11.5m to 60m, base section and 6 telescopic sections, Telematik rapid-cycle telescoping |
| Swingaway jib | Double swing-away jib 10.8m to 19m, adjustable to 0, 20 or 40 degrees, or hydraulically adjustable 0 to 40 degrees; 2 x 7m telescopic boom extension; 2.9m erection jib |
| Counterweight | 17.2 tonnes basic; up to 28.2 tonnes with the optional additional 11 tonnes |
| Weight and axle loads | 12 tonnes per axle line, 48 tonnes in total, with 2.5t counterweight |
| Outriggers | 4-point, hydraulically telescoping horizontally and vertically, remote control, automatic levelling, electronic inclination display |
| Axle lines | 4, all steered; 8×8 drive optional |
| Tyres and width | 8 tyres, 385/95 R25 standard; 445/95 R25 and 525/80 R25 optional |
| Suspension | Hydropneumatic on all axles with automatic levelling, hydraulically lockable |
| Engine | Liebherr 6-cylinder diesel, water cooled, 350kW (476hp), 2,476Nm maximum torque |
| Crane drive | Liebherr 4-cylinder diesel in the superstructure, 129kW (175hp), diesel-hydraulic |
| Transmission | ZF 12-speed automated gearbox with ZF intarder, two-stage transfer case |
| Control and safety | Electric load sensing control, LICCON2 safe load indicator, test system, hoist limit switch, pipe and hose rupture safety valves |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Liebherr LTM 1100-4.2 compared with similar cranes
| This craneLiebherr LTM 1100-4.2 | Grove GMK4100 | Grove GMK4100L | Liebherr LTM 1100-5.1 | |
|---|---|---|---|---|
| Maximum capacity | 100 tonnes | 100 tonnes | 100 tonnes | 100 tonnes |
| Main boom | 11.5m to 60m | 11.3m to 52m | 11.65m to 60m | 11.5m to 52m |
| Swingaway jib | 10.8m to 19m | 10m or 17m | 10m or 17m | 10.8m to 19m |
| Maximum tip height | Not stated | 55m | 63m | Not stated |
| Counterweight | 17.2 to 28.2 tonnes | 6.3 to 26.1 tonnes | 6.3 to 26.1 tonnes | 15 to 35 tonnes |
| Axle lines | 4 | 4 | 4 | 5 |
