All-terrain crane

Terex Challenger 3180

The Terex Challenger 3180 is a 60 tonne, three axle all-terrain crane with a 50m main boom, supplied with an operator for crane hire or as part of a contract lift.

Maximum capacity: 60 tonnesCapacity class
Main boom: 10.4m to 50m
Swingaway jib: 9m or 16mOptional
Counterweight: 4.7 to 12.1 tonnes
Axle lines: 3

Download the Terex Challenger 3180 spec sheet

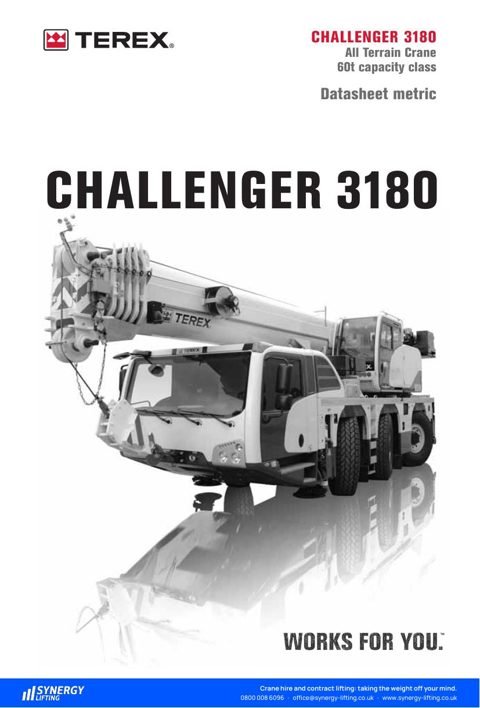

Terex Challenger 3180 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 42 pages, 3.7MB.

Download the spec sheet

Specification

Item	Specification
Manufacturer	Terex
Model	Challenger 3180
Type	All-terrain crane
Maximum capacity	60 tonnes (capacity class); boom head rated 39.5 tonnes with the standard 3 sheaves
Main boom	10.4m to 50m, single cylinder automatic telescoping system
Swingaway jib	Optional double folding swingaway jib 9m or 16m (HAV16), spindle bolting, manual offset 20 or 40 degrees; optional 1.5m fixed assembly jib, 26.6 tonnes
Counterweight	4.7 tonnes with automatic rigging system; up to 12.1 tonnes with the optional additional 7.4 tonnes; 12.1 tonnes can be carried on board
Outriggers	H 4-point design, fully hydraulic vertical and horizontal movement, manual or automatic levelling, 3 outrigger bases; outrigger load indicator and outrigger basis monitoring optional
Axle lines	3, all steered, axles 1 and 3 driven (6x4x6); 6x6x6 optional; active rear axle steering
Tyres and width	385/95R25 (14.00R25) standard; 445/95R25 (16.00R25) optional; 525/80R25 (20.50R25) optional, with carrier broadened to 2.75m
Suspension	Hydropneumatic with axle load compensation, hydraulically lockable, manual or automatic levelling, plus or minus 110mm
Engine	MTU (Mercedes) diesel, 240kW (326HP), 1,300Nm, Euromot 3b, Tier 4i and CARB, SCR catalyst; power train variant 265kW (360HP), 1,750Nm
Transmission	ZF AS-Tronic Mid automated gearbox, 12 forward and 2 reverse, 2-stage transfer case with off-road gear; with the 265kW variant, ZF AS-Tronic with integrated hydraulic retarder, 12 forward and 2 reverse
Control and safety	IC-1 control with integrated load moment indicator to EN13000, colour display, crane data logger; wireless remote control optional
Ownership	Supplied. Our owned cranes are the electric pick and carry machines

Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
