All-terrain crane
Terex AC 60-3 L
The Terex AC 60-3 L is a 60 tonne, three axle all-terrain crane with a 44m main boom, supplied with an operator for crane hire or as part of a contract lift.

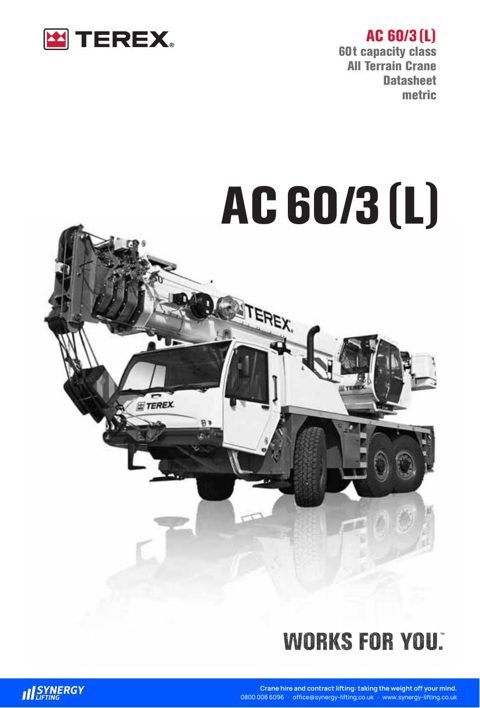

Spec sheet
Download the Terex AC 60-3 L spec sheet
Terex AC 60-3 L
Download the manufacturer’s specification sheet (PDF · 32 pages · 1.2MB).
Key figures
Terex AC 60-3 L key figures
- Maximum capacity
- 60 tonnes
- Main boom
- 9.9m to 44m6 sections
- Swingaway jib
- 8mOptional
- Counterweight
- Up to 11.6 tonnes4.6, 5.4, 7.2 or 11.6 tonnes
- Axle lines
- 3
Specification
Terex AC 60-3 L specification
| Item | Specification |
|---|---|
| Manufacturer | Terex |
| Model | AC 60-3 L |
| Type | All-terrain crane |
| Maximum capacity | 60 tonnes |
| Main boom | 9.9m to 44m, base and 5 telescopic sections |
| Swingaway jib | Optional side folding 1-part 8m jib, offset at 0, 20 and 40 degrees, or hydraulically offset 0 to 40 degrees from the operator cab, under load |
| Counterweight | 4.6, 5.4, 7.2 or 11.6 tonnes |
| Outriggers | 4 fully hydraulic telescopic outrigger beams and jacks, electronic levelling indicators |
| Axle lines | 3, all driven and steered (6x6x6), speed-dependent steering of axle 3, independent steering of axles 2 and 3 |
| Tyres and width | 16.00 R 25 standard; 14.00 R 25 and 20.5 R 25 optional |
| Suspension | Hydropneumatic, hydraulically lockable from both cabs, automatic or manual levelling |
| Engine | OM 501 LA water-cooled diesel, 260kW (353HP) at 1,800rpm, Euromot 3a |
| Transmission | ZF AS Tronic automated gearbox, 12 speeds |
| Control and safety | Electronic load indicator, hoist limit switch, pressure relief and load holding valves |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Terex AC 60-3 L compared with similar cranes
| This craneTerex AC 60-3 L | Grove GMK3060 | Grove GMK3060L-1 | Liebherr LTM 1060-3.1 | |
|---|---|---|---|---|
| Maximum capacity | 60 tonnes | 60 tonnes | 60 tonnes | 60 tonnes |
| Main boom | 9.9m to 44m | 9.7m to 43m | 9.6m to 48m | 10.3m to 48m |
| Swingaway jib | 8m | 8.7m to 15m | 8.7m to 15m | 9.5m or 16m |
| Maximum tip height | Not stated | 60.7m | 65m | Not stated |
| Counterweight | Up to 11.6 tonnes | 13.6 tonnes | 13.5 tonnes | 5.5 to 12.8 tonnes |
| Carrier width | Not stated | 2.75m | 2.55m | Not stated |
| Axle lines | 3 | 3 | 3 | 3 |
