All-terrain crane
Tadano Faun ATF 65G-4
The Tadano Faun ATF 65G-4 is a 65 tonne, four axle all-terrain crane with a 44m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 65 tonnes
- Main boom
- 11m to 44m
- Jib
- 9m or 16mBoom extension, optional
- Counterweight
- 12.5 to 15 tonnes
- Carrier width
- 2.55m
- Axle lines
- 4

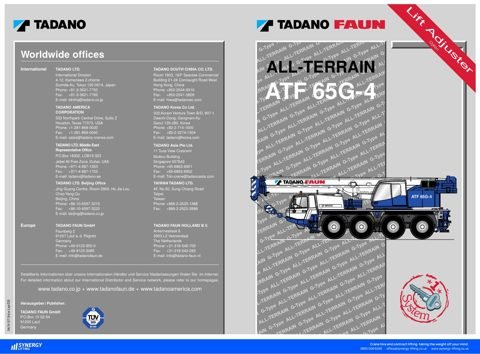

Download the Tadano Faun ATF 65G-4 spec sheet
Tadano Faun ATF 65G-4 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 17 pages, 2.3MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Tadano Faun |
| Model | ATF 65G-4 |
| Type | All-terrain crane |
| Maximum capacity | 65 tonnes |
| Main boom | 11m to 44m, five sections (base and 4 telescoping), single telescopic cylinder, extendable under partial load |
| Jib | Optional boom extension 9m or 16m, offsets 0, 20 and 40 degrees; optional 1.6m heavy duty jib |
| Counterweight | 12.5 tonnes standard ('Taxi'), divisible, hydraulic assembly controlled from the superstructure cab; up to 15 tonnes with the optional additional 2.5 tonnes |
| Weight and axle loads | 12 tonnes per axle line, 48 tonnes in total, with 12.5t counterweight, 9m/16m boom extension, 32t hook block, 6t swivel hook, 8×6 drive and 16.00 R25 (445/95 R25) tyres |
| Outriggers | 4 point telescopic hydraulic, controls on both sides of the carrier and in the superstructure cab; base 6.4m (4.4m mid extension) x 7.8m |
| Axle lines | 4, all steered; lines 2, 3 and 4 driven (8×6; 8×8 optional) |
| Tyres and width | 8 x 14.00 R25 (385/95 R25) standard, width 2.55m; 16.00 R25 (445/95 R25) or 20.5 R25 (525/80 R25) optional |
| Suspension | Hydropneumatic with levelling adjustment |
| Engine | Mercedes-Benz OM 501 LA 6 cylinder diesel (Euromot III A / EPA III), 290kW (394HP) at 1,800rpm |
| Crane drive | Mercedes-Benz OM 904 LA 4 cylinder diesel (Euromot III A / EPA III), 90kW (122HP) at 2,200rpm |
| Transmission | ZF-AS-Tronic 12 AS 2302 with automatic gear shifting, 12 forward and 2 reverse, Power/Economy mode; two stage transfer case |
| Control and safety | 2 electrical joystick levers; load moment device, working area limiter, hoist limit switch, lower limit switch, drum turn indicator, safety valves against pipe and hose rupture; Lift Adjuster optional |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Tadano Faun ATF 65G-4 compared with similar cranes
| This craneTadano Faun ATF 65G-4 | Grove GMK3060 | Grove GMK3060L-1 | Liebherr LTM 1060-3.1 | |
|---|---|---|---|---|
| Maximum capacity | 65 tonnes | 60 tonnes | 60 tonnes | 60 tonnes |
| Main boom | 11m to 44m | 9.7m to 43m | 9.6m to 48m | 10.3m to 48m |
| Swingaway jib | Not stated | 8.7m to 15m | 8.7m to 15m | 9.5m or 16m |
| Jib | 9m or 16m | Not stated | Not stated | Not stated |
| Maximum tip height | Not stated | 60.7m | 65m | Not stated |
| Counterweight | 12.5 to 15 tonnes | 13.6 tonnes | 13.5 tonnes | 5.5 to 12.8 tonnes |
| Carrier width | 2.55m | 2.75m | 2.55m | Not stated |
| Axle lines | 4 | 3 | 3 | 3 |
| More detail | Download spec sheet | View Grove GMK3060 | View Grove GMK3060L-1 | View Liebherr LTM 1060-3.1 |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
