All-terrain crane
Liebherr LTM 1750-9.1
The Liebherr LTM 1750-9.1 is a 750 tonne, nine axle all-terrain crane with a 52m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 750 tonnes
- Main boom
- 16.3m to 52m
- Jib
- Up to 91mLuffing lattice jib 21m to 91m; fixed lattice jib 6m to 62m; both optional
- Counterweight
- 204 tonnes
- Axle lines
- 9
Download the Liebherr LTM 1750-9.1 spec sheet

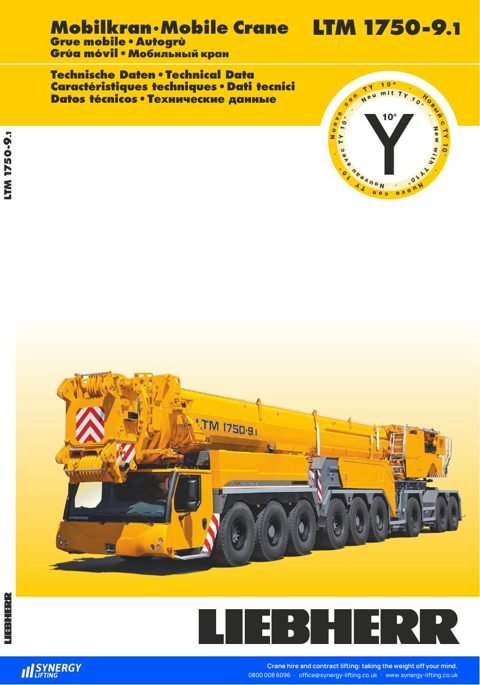

Liebherr LTM 1750-9.1 specification sheet
Load charts, dimensions and axle loads. PDF, 136 pages, 5.1MB.
Liebherr LTM 1750-9.1 load chart summary
What the Liebherr LTM 1750-9.1 can lift at each radius on its main boom, with 204 tonnes of counterweight, outriggers fully extended and 360 degree slewing. Each figure is the highest on the manufacturer load chart at that radius, shown with the main boom length it applies to. The last column gives the load with the boom fully extended to 52m.
| Radius | Maximum load | Main boom length | At full 52m boom |
|---|---|---|---|
| 3m | 268.9 tonnes | 16.3m | Not charted |
| 5m | 268.9 tonnes | 16.3m | Not charted |
| 8m | 235.8 tonnes | 16.3m | 90.8 tonnes |
| 10m | 201.5 tonnes | 16.3m | 80.4 tonnes |
| 12m | 175.6 tonnes | 16.3m | 73 tonnes |
| 20m | 106.8 tonnes | 27.2m | 50.1 tonnes |
| 30m | 61.3 tonnes | 32.7m | 33.5 tonnes |
| 40m | 30.3 tonnes | 43.7m | 24.2 tonnes |
| 50m | 18.8 tonnes | 52m | 18.8 tonnes |
Taken from the manufacturer load chart for this configuration and given as a guide only. The hook block and lifting accessories count towards the load, other configurations give different figures, and nothing here forms part of a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1750-9.1 |
| Type | All-terrain crane |
| Maximum capacity | 750 tonnes at 3m radius |
| Main boom | 16.3m to 52m, base section and 3 telescopic sections, TELEMATIK telescoping system; optional Y guying system; optional lattice extensions 10m (V2) and 2 x 5m (V3) |
| Jib | Optional fixed lattice jib 6m to 62m at 0, 10, 20 or 40 degrees (F) or hydraulic 0 to 38 degrees (NZF); optional luffing lattice jib 21m to 91m (N) |
| Counterweight | 204 tonnes total (ground plate 11t, counterweight frame 23t, 16 pieces of 10t, 2 pieces of 5t), hydraulic ballasting device |
| Weight and axle loads | 12 tonnes per axle, 108 tonnes in total, including front outriggers; 11 tonnes per axle, 99 tonnes in total, without outriggers |
| Outriggers | 4 hydraulic swing-out beams with hydraulic support jacks, remote control, automatic levelling, electronic inclination display |
| Axle lines | 9, all steered; axles 2, 3, 5 and 6 planetary axles |
| Tyres and width | 18 single tyres, 385/95 R25 standard; 445/95 R25 or 525/80 R25 optional |
| Suspension | Hydropneumatic with automatic levelling, all axles, hydraulically lockable |
| Engine | Liebherr 8-cylinder diesel, 505kW (686hp), 3,000Nm |
| Crane drive | Liebherr 6-cylinder diesel in the counterweight frame, 300kW (408hp), 1,870Nm; diesel-hydraulic with 5 axial piston variable displacement pumps |
| Transmission | ZF TC-TRONIC HD automatic with torque converter and intarder, 12 forward and 2 reverse |
| Control and safety | Two self-centring joysticks, LICCON2 safe load indicator, test system, hoist limit switches, safety valves against rupture of pipes and hoses |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Liebherr LTM 1750-9.1 compared with similar cranes
| This craneLiebherr LTM 1750-9.1 | Liebherr LTM 1500-8.1 | Liebherr LTM 1450-8.1 | Liebherr LTM 1400-7.1 | |
|---|---|---|---|---|
| Maximum capacity | 750 tonnes | 500 tonnes | 450 tonnes | 400 tonnes |
| Main boom | 16.3m to 52m | Up to 84m | 16.1m to 85m | 15.4m to 60m |
| Jib | Up to 91m | Up to 91m | Up to 84m | Up to 84m |
| Counterweight | 204 tonnes | 135 to 165 tonnes | 134 tonnes | 100 to 140 tonnes |
| Axle lines | 9 | 8 | 8 | 7 |
| More detail | Download spec sheet | View Liebherr LTM 1500-8.1 | View Liebherr LTM 1450-8.1 | View Liebherr LTM 1400-7.1 |
