All-terrain crane
Liebherr LTM 1500-8.1
The Liebherr LTM 1500-8.1 is a 500 tonne, eight axle all-terrain crane with a 84m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 500 tonnes
- Main boom
- Up to 84m16.1m to 50m or 16.1m to 84m
- Jib
- Up to 91mLuffing lattice jib 21m to 91m; fixed lattice jib 14m to 63m; both optional
- Counterweight
- 135 to 165 tonnes
- Axle lines
- 8
Download the Liebherr LTM 1500-8.1 spec sheet

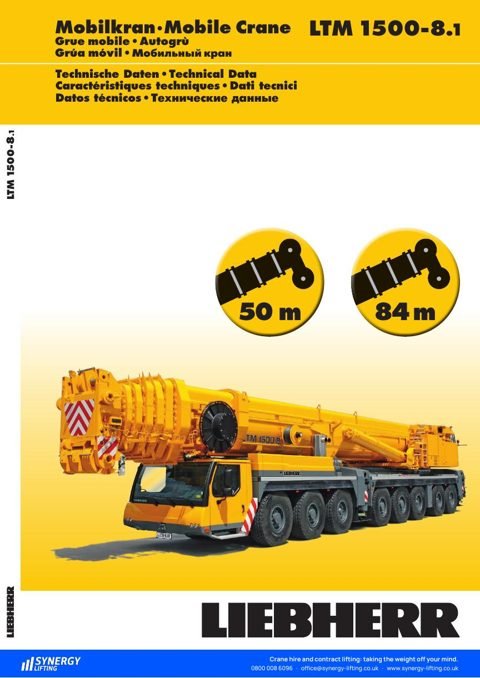

Liebherr LTM 1500-8.1 specification sheet
Load charts, dimensions and axle loads. PDF, 182 pages, 3.5MB.
Liebherr LTM 1500-8.1 load chart summary
What the Liebherr LTM 1500-8.1 can lift at each radius on its main boom (84m telescopic boom version), with 165 tonnes of counterweight, outriggers fully extended and 360 degree slewing. Each figure is the highest on the manufacturer load chart at that radius, shown with the main boom length it applies to. The last column gives the load with the boom fully extended to 84m.
| Radius | Maximum load | Main boom length | At full 84m boom |
|---|---|---|---|
| 3m | 262 tonnes | 16.1m | Not charted |
| 5m | 248 tonnes | 16.1m | Not charted |
| 8m | 178 tonnes | 16.1m | Not charted |
| 10m | 147 tonnes | 16.1m | Not charted |
| 12m | 124 tonnes | 16.1m | Not charted |
| 20m | 67.8 tonnes | 31.7m | 18.2 tonnes |
| 30m | 36 tonnes | 36.9m | 12.4 tonnes |
| 40m | 19.4 tonnes | 42.1m | 7.6 tonnes |
| 50m | 10.8 tonnes | 57.7m | 4.2 tonnes |
| 60m | 5.9 tonnes | 78.6m | 2.5 tonnes |
| 70m | 3.7 tonnes | 78.6m | Not charted |
Taken from the manufacturer load chart for this configuration and given as a guide only. The hook block and lifting accessories count towards the load, other configurations give different figures, and nothing here forms part of a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1500-8.1 |
| Type | All-terrain crane |
| Maximum capacity | 500 tonnes at 3m radius on the 50m boom with 165t counterweight |
| Main boom | Two variants: 16.1m to 50m (base section and 3 telescopic sections) or 16.1m to 84m (base section and 6 telescopic sections), TELEMATIK telescoping system; optional Y guying system; optional 14m lattice extension for the 50m boom |
| Jib | Optional fixed lattice jib 14m to 63m; optional luffing lattice jib 21m to 91m (needs the optional 3rd hoist gear) |
| Counterweight | 135 tonnes (basic slab of 15t and 8 slabs of 15t); up to 165 tonnes with 2 optional additional 15 tonne slabs, required for guyed boom operation |
| Weight and axle loads | 12 tonnes per axle, 96 tonnes in total, with the 50m telescopic boom |
| Outriggers | 4 hydraulically extending sliding beams with hydraulic jacks, supporting base 10m x 9.6m |
| Axle lines | 8, all suspended; axles 1 to 4, 7 and 8 steered; axles 1, 2, 4 and 5 planetary axles |
| Tyres and width | 16 single tyres, 385/95 R25 standard; 445/95 R25 or 525/80 R25 optional |
| Suspension | Hydropneumatic with automatic levelling and load equalisation between axle pairs, hydraulically lockable |
| Engine | Liebherr D9508 A7 8-cylinder diesel, 500kW (680hp) at 1,900rpm, 3,000Nm |
| Crane drive | Liebherr D936L A6 6-cylinder diesel, 240kW (326hp) at 1,800rpm, 1,500Nm; diesel-hydraulic |
| Transmission | ZF TC-TRONIC automatic with torque converter and intarder, 12 forward and 2 reverse |
| Control and safety | Two self-centring joysticks, LICCON safe load indicator, test system, hoist limit switches, safety valves against rupture of pipes and hoses |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Liebherr LTM 1500-8.1 compared with similar cranes
| This craneLiebherr LTM 1500-8.1 | Liebherr LTM 1450-8.1 | Liebherr LTM 1400-7.1 | Grove GMK6300L | |
|---|---|---|---|---|
| Maximum capacity | 500 tonnes | 450 tonnes | 400 tonnes | 300 tonnes |
| Main boom | Up to 84m | 16.1m to 85m | 15.4m to 60m | 15.6m to 80m |
| Swingaway jib | Not stated | Not stated | Not stated | 12m or 21m |
| Jib | Up to 91m | Up to 84m | Up to 84m | Not stated |
| Maximum tip height | Not stated | Not stated | Not stated | 83m |
| Counterweight | 135 to 165 tonnes | 134 tonnes | 100 to 140 tonnes | 54.5 to 92.5 tonnes |
| Axle lines | 8 | 8 | 7 | 6 |
| More detail | Download spec sheet | View Liebherr LTM 1450-8.1 | View Liebherr LTM 1400-7.1 | View Grove GMK6300L |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
