All-terrain crane

Liebherr LTM 1200-5.1

The Liebherr LTM 1200-5.1 is a 200 tonne, five axle all-terrain crane with a 72m main boom, supplied with an operator for crane hire or as part of a contract lift.

Maximum capacity: 200 tonnes
Main boom: 13.2m to 72m
Swingaway jib: 12.2m to 36mOptional
Counterweight: 72 tonnes
Axle lines: 5

Download the Liebherr LTM 1200-5.1 spec sheet

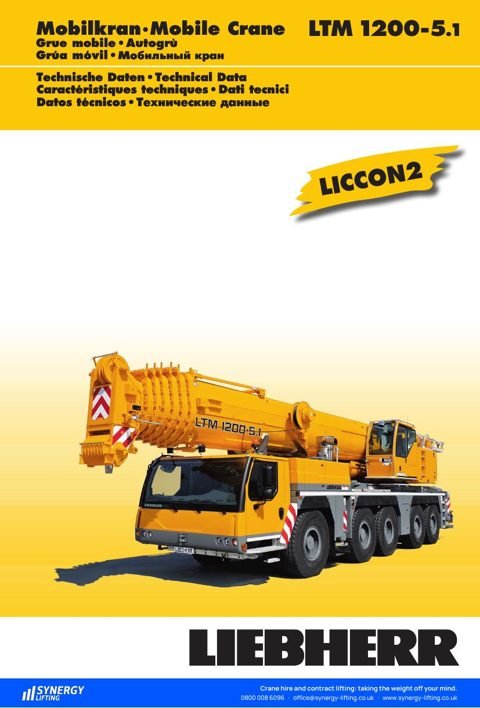

Liebherr LTM 1200-5.1 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 82 pages, 1.9MB.

Download the spec sheet

Specification

Item	Specification
Manufacturer	Liebherr
Model	LTM 1200-5.1
Type	All-terrain crane
Maximum capacity	200 tonnes at 3m radius
Main boom	13.2m to 72m, base section and 6 telescopic sections, TELEMATIK telescoping system
Swingaway jib	Optional K/NZK swing-away jib 12.2m to 36m, mountable at 0, 22.5 or 45 degrees, integrated 5.4m erection jib; optional hydraulic ram for 0 to 45 degrees; optional 7m lattice telescopic boom extension
Counterweight	72 tonnes
Weight and axle loads	12 tonnes per axle, 60 tonnes in total
Outriggers	4-point, hydraulically telescoping horizontally and vertically, remote control, automatic levelling, electronic inclination display
Axle lines	5, all steered; 10 x 8 drive optional (additional drive of axle 1)
Tyres and width	10 tyres, 385/95 R25 standard; 445/95 R25 or 525/80 R25 optional
Suspension	Niveaumatik hydropneumatic, all axles, hydraulically lockable
Engine	Liebherr 6-cylinder diesel, 370kW (503hp), 2,355Nm
Crane drive	Liebherr 4-cylinder diesel, 145kW (197hp), 920Nm; diesel-hydraulic with 5 axial piston variable displacement pumps
Transmission	ZF 12-speed AS-TRONIC automated, ZF intarder, two-stage transfer case
Control and safety	LICCON computer control, LICCON2 safe load indicator, test system, hoist limit switch, safety valves against pipe and hose ruptures
Ownership	Supplied. Our owned cranes are the electric pick and carry machines

Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
