All-terrain crane
Liebherr LTM 1160-5.2
The Liebherr LTM 1160-5.2 is a 180 tonne, five axle all-terrain crane with a 62m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

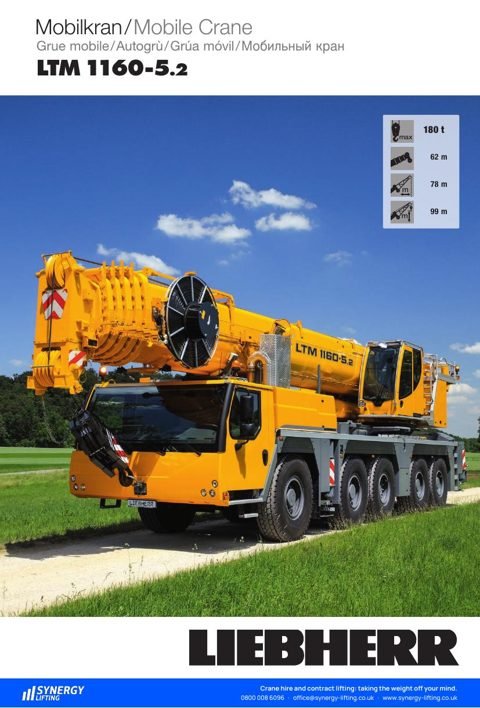

Download the Liebherr LTM 1160-5.2 spec sheet
Liebherr LTM 1160-5.2
Download the manufacturer’s specification sheet (PDF · 66 pages · 3.3MB).
Key figures
Liebherr LTM 1160-5.2 key figures
- Maximum capacity
- 180 tonnes
- Main boom
- 13.1m to 62m
- Swingaway jib
- 10.8m to 19m
- Counterweight
- 34 to 54 tonnes
- Axle lines
- 5
Specification
Liebherr LTM 1160-5.2 specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1160-5.2 |
| Type | All-terrain crane |
| Maximum capacity | 180 tonnes |
| Main boom | 13.1m to 62m, base section and 5 telescopic sections, TELEMATIK rapid-cycle telescoping |
| Swingaway jib | Double swing-away jib 10.8m to 19m, adjustable to 0, 20 or 40 degrees, or hydraulically adjustable 0 to 40 degrees; 3 x 7m telescopic boom extension; 2.9m special swing-away jib |
| Counterweight | 34 tonnes basic; up to 54 tonnes with the optional additional 20 tonnes; VarioBallast radius 4.73m to 5.23m |
| Weight and axle loads | 12 tonnes per axle line, 60 tonnes in total, with double swing-away jib, 3-sheave hook block and 1,000kg lifting tackle; optional UK counterweight arrangement also 60 tonnes with hook block and 3.5t counterweight |
| Outriggers | 4-point, hydraulically telescoping horizontally and vertically, automatic levelling, electronic inclination indicator |
| Axle lines | 5, all steered; 10×8 drive optional (first axle additionally driven) |
| Tyres and width | 10 tyres, 385/95 R25 standard; 445/95 R25 and 525/80 R25 optional |
| Suspension | Niveaumatik hydropneumatic on all axles, hydraulically lockable |
| Engine | Liebherr 6-cylinder diesel, water cooled, 400kW (544hp), 2,516Nm maximum torque; also drives the superstructure mechanically |
| Transmission | ZF 12-speed automated gearbox with ZF intarder, two-stage transfer case |
| Control and safety | Electric load sensing control, LICCON2 safe load indicator, test system, hoist limit switch, pipe and hose rupture safety valves |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Liebherr LTM 1160-5.2 compared with similar cranes
| This craneLiebherr LTM 1160-5.2 | Liebherr LTM 1200-5.1 | Grove GMK5150-1 | Grove GMK5150L | |
|---|---|---|---|---|
| Maximum capacity | 180 tonnes | 200 tonnes | 150 tonnes | 150 tonnes |
| Main boom | 13.1m to 62m | 13.2m to 72m | 12.8m to 50.8m | 12.8m to 60m |
| Swingaway jib | 10.8m to 19m | 12.2m to 36m | 11.2m or 17.8m | 11.2m or 17.8m |
| Maximum tip height | Not stated | Not stated | 53.8m | 63m |
| Counterweight | 34 to 54 tonnes | 72 tonnes | 44.5 tonnes | 44.5 tonnes |
| Axle lines | 5 | 5 | 5 | 5 |
