All-terrain crane
Liebherr LTM 1100-5.1
The Liebherr LTM 1100-5.1 is a 100 tonne, five axle all-terrain crane with a 52m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

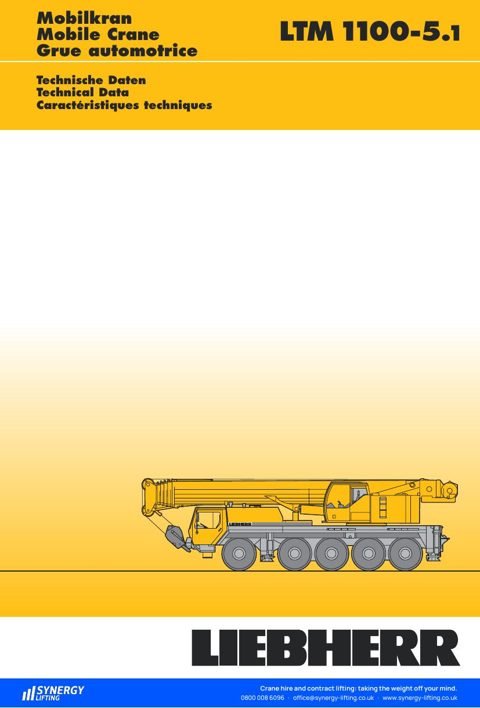

Download the Liebherr LTM 1100-5.1 spec sheet
Liebherr LTM 1100-5.1
Download the manufacturer’s specification sheet (PDF · 32 pages · 1.1MB).
Key figures
Liebherr LTM 1100-5.1 key figures
- Maximum capacity
- 100 tonnes
- Main boom
- 11.5m to 52m
- Swingaway jib
- 10.8m to 19mOptional
- Counterweight
- 15 to 35 tonnes
- Axle lines
- 5
Specification
Liebherr LTM 1100-5.1 specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1100-5.1 |
| Type | All-terrain crane |
| Maximum capacity | 100 tonnes |
| Main boom | 11.5m to 52m, oval profile, base section and 5 telescopic sections, Telematik rapid-cycle telescoping |
| Swingaway jib | Optional 10.8m to 19m, mountable at 0, 20 or 40 degrees; optional 7m to 14m lattice telescopic boom extension |
| Counterweight | 15 tonnes basic; up to 35 tonnes with the optional additional 20 tonnes |
| Weight and axle loads | 12 tonnes per axle line, 60 tonnes in total, with 15t counterweight |
| Outriggers | 4-point, hydraulically telescoping horizontally and vertically, automatic levelling, electronic inclination indicator |
| Axle lines | 5, axles 1, 2, 4 and 5 steered; 10×8 drive optional (second axle additionally driven) |
| Tyres and width | 10 tyres, 14.00 R25 standard; 16.00 R25 optional |
| Suspension | Hydropneumatic on all axles, hydraulically lockable |
| Engine | Liebherr D 9408 TI-E 8-cylinder diesel, 400kW (544hp) at 2,000rpm, 2,500Nm maximum torque, Euro 3 |
| Crane drive | Liebherr D 924 TI-E 4-cylinder diesel in the superstructure, 149kW (202hp) at 1,800rpm, diesel-hydraulic |
| Transmission | ZF 16-speed AS-TRONIC automated gearbox with ZF intarder, two-stage transfer case |
| Control and safety | Electric load sensing control, LICCON safe load indicator, test system, hoist limit switch, pipe and hose rupture safety valves |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Liebherr LTM 1100-5.1 compared with similar cranes
| This craneLiebherr LTM 1100-5.1 | Grove GMK4100 | Grove GMK4100L | Liebherr LTM 1100-4.2 | |
|---|---|---|---|---|
| Maximum capacity | 100 tonnes | 100 tonnes | 100 tonnes | 100 tonnes |
| Main boom | 11.5m to 52m | 11.3m to 52m | 11.65m to 60m | 11.5m to 60m |
| Swingaway jib | 10.8m to 19m | 10m or 17m | 10m or 17m | 10.8m to 19m |
| Maximum tip height | Not stated | 55m | 63m | Not stated |
| Counterweight | 15 to 35 tonnes | 6.3 to 26.1 tonnes | 6.3 to 26.1 tonnes | 17.2 to 28.2 tonnes |
| Axle lines | 5 | 4 | 4 | 4 |
