All-terrain crane
Tadano ATF 70G-4
The Tadano ATF 70G-4 is a 70 tonne, four axle all-terrain crane with a 44m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet
Download the Tadano ATF 70G-4 spec sheet
Tadano ATF 70G-4

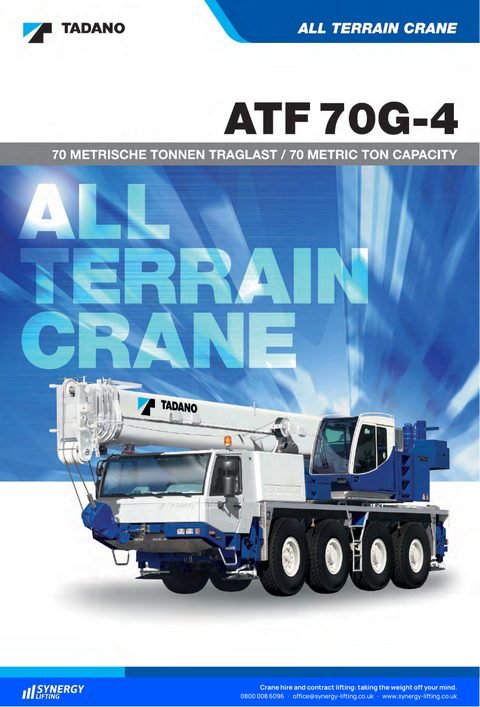

Download the manufacturer’s specification sheet (PDF · 28 pages · 7.1MB).
Key figures
Tadano ATF 70G-4 key figures
- Maximum capacity
- 70 tonnes
- Main boom
- 11.0m to 44.0m
- Swingaway jib
- 9m or 16mOptional
- Counterweight
- 11.9 to 15 tonnes
- Carrier width
- 2.55m
- Axle lines
- 4
Specification
Tadano ATF 70G-4 specification
| Item | Specification |
|---|---|
| Manufacturer | Tadano |
| Model | ATF 70G-4 |
| Type | All-terrain crane |
| Maximum capacity | 70 tonnes at 2.5m radius, over the rear, with additional lifting equipment |
| Main boom | 11.0m to 44.0m, base and 4 telescoping sections, single telescopic cylinder |
| Swingaway jib | Optional 9m or 16m boom extension, offsets 0, 20 and 40 degrees or hydraulic 0 to 40 degrees; optional 1.6m heavy duty jib |
| Counterweight | 11.9 tonnes standard (Taxi version), divisible, hydraulically assembled from the cab; up to 15 tonnes with the optional additional 3.1 tonnes |
| Weight and axle loads | 12 tonnes per axle, 48 tonnes in total, with 11.9t counterweight, 9m or 16m boom extension, 32t hook block, 6t swivel hook, 8 x 6 drive and 445/95 R 25 tyres; special option 10 tonnes per axle, 40 tonnes in total, with 3.5t counterweight and 32t hook block |
| Outriggers | 4 point telescopic hydraulic, base 6.4m (4.4m mid extension) x 7.8m |
| Axle lines | 4, all steered, axles 2 to 4 driven (8 x 6; 8 x 8 optional) |
| Tyres and width | 385/95 R 25 standard at 2.55m wide; 445/95 R 25 and 525/80 R 25 optional |
| Suspension | Hydropneumatic with levelling adjustment |
| Engine | Mercedes-Benz OM 501 LA 6-cylinder diesel, 320kW (435HP) at 1,800rpm |
| Crane drive | Mercedes-Benz OM 924 LA 4-cylinder diesel, 95kW (129HP) at 2,200rpm |
| Transmission | ZF AS-Tronic 12 AS 2302 automated, 12 forward and 2 reverse, power and economy modes |
| Control and safety | 2 electric joysticks, load moment device, working area limiter, hoist and lower limit switches, drum turn indicator |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
