All-terrain crane
Liebherr LTM 1070-4.2
The Liebherr LTM 1070-4.2 is a 70 tonne, four axle all-terrain crane with a 50m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

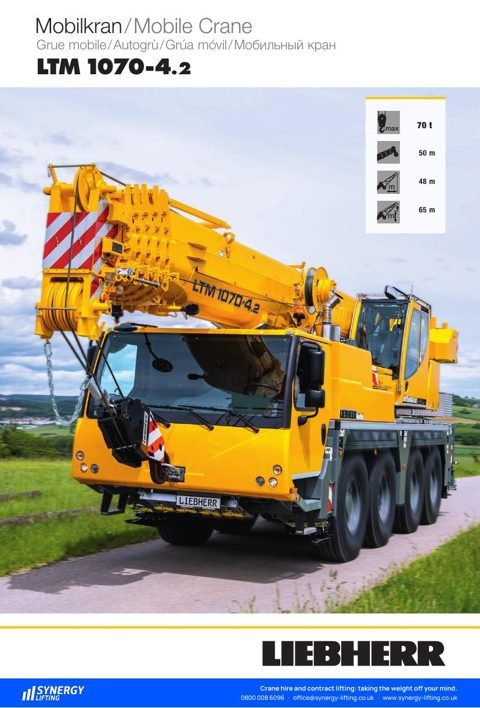

Download the Liebherr LTM 1070-4.2 spec sheet
Liebherr LTM 1070-4.2
Download the manufacturer’s specification sheet (PDF · 28 pages · 2.2MB).
Key figures
Liebherr LTM 1070-4.2 key figures
- Maximum capacity
- 70 tonnes
- Main boom
- 11m to 50m
- Swingaway jib
- 9.5m to 16m
- Counterweight
- 10.7 to 14.5 tonnes
- Axle lines
- 4
Specification
Liebherr LTM 1070-4.2 specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1070-4.2 |
| Type | All-terrain crane |
| Maximum capacity | 70 tonnes |
| Main boom | 11m to 50m, base section and 5 telescopic sections, Telematik telescoping system |
| Swingaway jib | Double swingaway jib 9.5m to 16m, mechanical adjustment 0, 20, 40 and 60 degrees, or hydraulic adjustment 0 to 60 degrees; 3.2m assembly jib, mechanical or hydraulic adjustment |
| Counterweight | 10.7 tonnes basic; optional additional 3.8 tonnes for 14.5 tonnes in total |
| Weight and axle loads | 12 tonnes per axle, 48 tonnes in total, with 10.7t counterweight and folding jib |
| Outriggers | 4-point hydraulic outriggers, remote control, automatic levelling, electronic inclination display |
| Axle lines | 4, all steered, axles 3 and 4 with planetary gears and differential locks (8×6 optional, axle 1 additionally driven) |
| Tyres and width | 385/95 R25 (14.00 R25) standard; 445/95 R25 (16.00 R25) and 525/80 R25 (20.5 R25) optional |
| Suspension | Niveaumatik hydropneumatic on all axles, hydraulically lockable |
| Engine | Liebherr 6-cylinder diesel, 300kW (408hp), maximum torque 1,987Nm; also drives the crane |
| Transmission | ZF 12-speed gearbox with automatic control, two-stage transfer case with lockable transfer differential |
| Control and safety | LICCON2 safe load indicator, test system, hoist limit switch, safety valves against pipe and hose rupture |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Liebherr LTM 1070-4.2 compared with similar cranes
| This craneLiebherr LTM 1070-4.2 | Tadano ATF 70G-4 | Tadano Faun ATF 65G-4 | Grove GMK3060 | |
|---|---|---|---|---|
| Maximum capacity | 70 tonnes | 70 tonnes | 65 tonnes | 60 tonnes |
| Main boom | 11m to 50m | 11.0m to 44.0m | 11m to 44m | 9.7m to 43m |
| Swingaway jib | 9.5m to 16m | 9m or 16m | Not stated | 8.7m to 15m |
| Jib | Not stated | Not stated | 9m or 16m | Not stated |
| Maximum tip height | Not stated | Not stated | Not stated | 60.7m |
| Counterweight | 10.7 to 14.5 tonnes | 11.9 to 15 tonnes | 12.5 to 15 tonnes | 13.6 tonnes |
| Carrier width | Not stated | 2.55m | 2.55m | 2.75m |
| Axle lines | 4 | 4 | 4 | 3 |
