All-terrain crane
Tadano ATF 100G-4
The Tadano ATF 100G-4 is a 100 tonne, four axle all-terrain crane with a 51.2m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 100 tonnes
- Main boom
- 11.1m to 51.2m
- Swingaway jib
- 10m or 18mOptional
- Counterweight
- 6 to 22.5 tonnes
- Carrier width
- 2.75m
- Axle lines
- 4

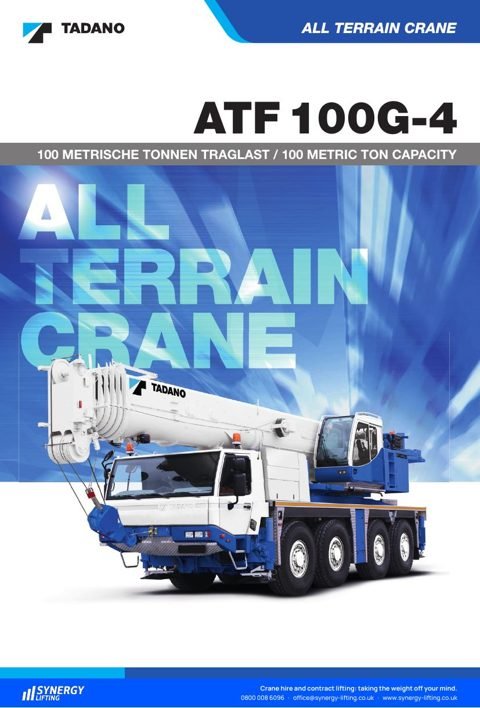

Download the Tadano ATF 100G-4 spec sheet
Tadano ATF 100G-4 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 28 pages, 7.7MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Tadano |
| Model | ATF 100G-4 |
| Type | All-terrain crane |
| Maximum capacity | 100 tonnes, over the rear |
| Main boom | 11.1m to 51.2m, base and 5 telescoping sections, single telescopic cylinder |
| Swingaway jib | Optional 10m or 18m boom extension, offsets 0, 20 and 40 degrees or hydraulic 0 to 40 degrees; optional 1.6m heavy duty jib |
| Counterweight | 6 tonnes standard, divisible, hydraulically assembled from the cab; up to 22.5 tonnes with the optional additional 16.5 tonnes |
| Weight and axle loads | 12 tonnes per axle, 48 tonnes in total, with 6t counterweight, 10m or 18m boom extension, hookblock, swivel hook and 445/95 R 25 tyres; or with 7.6t counterweight, hookblock, swivel hook and 445/95 R 25 tyres |
| Outriggers | 4 point double telescopic hydraulic, base 7.2m (5.0m mid extension) x 8.5m |
| Axle lines | 4, all steered, axles 2 to 4 driven (8 x 6; 8 x 8 optional) |
| Tyres and width | 445/95 R 25 (16.00 R 25) standard at 2.75m wide; 525/80 R 25 (20.5 R 25) optional |
| Suspension | Hydropneumatic with levelling adjustment |
| Engine | Mercedes-Benz OM 470 LA 6-cylinder diesel, 320kW (435HP) at 1,700rpm |
| Crane drive | Mercedes-Benz OM 934 LA 4-cylinder diesel, 129kW (175HP) at 2,200rpm |
| Transmission | ZF AS-Tronic 12 AS 2531 automated with Intarder, 12 forward and 2 reverse |
| Control and safety | 2 electric joysticks, load moment device, working area limiter, hoist and lower limit switches, anemometer |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Tadano ATF 100G-4 compared with similar cranes
| This craneTadano ATF 100G-4 | Grove GMK4100 | Grove GMK4100L | Liebherr LTM 1100-4.2 | |
|---|---|---|---|---|
| Maximum capacity | 100 tonnes | 100 tonnes | 100 tonnes | 100 tonnes |
| Main boom | 11.1m to 51.2m | 11.3m to 52m | 11.65m to 60m | 11.5m to 60m |
| Swingaway jib | 10m or 18m | 10m or 17m | 10m or 17m | 10.8m to 19m |
| Maximum tip height | Not stated | 55m | 63m | Not stated |
| Counterweight | 6 to 22.5 tonnes | 6.3 to 26.1 tonnes | 6.3 to 26.1 tonnes | 17.2 to 28.2 tonnes |
| Carrier width | 2.75m | Not stated | Not stated | Not stated |
| Axle lines | 4 | 4 | 4 | 4 |
| More detail | Download spec sheet | View Grove GMK4100 | View Grove GMK4100L | View Liebherr LTM 1100-4.2 |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
