Mobile tower crane
Spierings SK1265-AT6
The Spierings SK1265-AT6 is a 10 tonne, six axle mobile tower crane with a 60m jib, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 10 tonnes
- Jib length
- 60m
- Load at jib tip
- 1.7 tonnes at 60m
- Axle lines
- 6
Download the Spierings SK1265-AT6 spec sheet

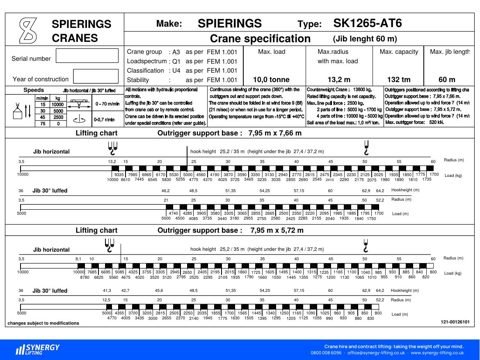

Spierings SK1265-AT6 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 7 pages, 0.9MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Spierings |
| Model | SK1265-AT6 |
| Type | Mobile tower crane |
| Maximum capacity | 10 tonnes, at up to 13.2m radius |
| Jib length | 60m maximum |
| Load at jib tip | 1.7 tonnes at 60m on the 7.95m x 7.66m outrigger base; 0.8 tonnes on 7.95m x 5.72m (jib horizontal) |
| Jib positions | Horizontal or luffed to 30 degrees; jib can be unfolded through 360 degrees |
| Tower | Hook height 25.2m or 35m with the jib horizontal (height under the jib 27.4m or 37.2m) |
| Weight and axle loads | 72 tonnes overall weight |
| Outriggers | Support bases 7.95m x 7.66m and 7.95m x 5.72m; maximum outrigger force 520kN; outrigger pads 750 x 600mm; support plates 2500 x 1000mm |
| Axle lines | 6 |
| Tyres and width | 445/75 R22.5 |
| Engine | Carrier: DAF MX 375 (12.9 litre) Euro IV diesel, 375kW at 1,900rpm, 2,500Nm at 1,000 to 1,410rpm |
| Crane drive | John Deere 4045HF285-T3 diesel, 104kW at 2,400rpm, 387Nm at 1,500rpm |
| Transmission | ZF 16AS2601 automatic with intarder, dry plate clutch; Steyr VG2001/396 transfer box with road and off-road gears; maximum speed 85km/h, minimum 1.6km/h |
| Control and safety | Jib luffing to 30 degrees controlled from the crane cab or by remote control |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Spierings SK1265-AT6 compared with similar cranes
| This craneSpierings SK1265-AT6 | Spierings SK599-AT5 | Liebherr MK 140 | Liebherr MK 88-4.1 | |
|---|---|---|---|---|
| Maximum capacity | 10 tonnes | 9 tonnes | 8 tonnes | 8 tonnes |
| Jib length | 60m | 50m | 60m | 45m |
| Load at jib tip | 1.7 tonnes at 60m | 1.9 tonnes at 50m | 0.3 tonnes at 65m | 1.85 tonnes at 45m |
| Maximum hook height | Not stated | 56.3m | Not stated | Not stated |
| Axle lines | 6 | 5 | 5 | 4 |
| More detail | Download spec sheet | View Spierings SK599-AT5 | View Liebherr MK 140 | View Liebherr MK 88-4.1 |
Our guide explains how mobile tower cranes work and when to use one: What Is a Mobile Tower Crane?
