All-terrain crane

Liebherr LTM 1300-6.3

The Liebherr LTM 1300-6.3 is a 300 tonne, six axle all-terrain crane with a 90m main boom, supplied with an operator for crane hire or as part of a contract lift.

Maximum capacity: 300 tonnes
Main boom: 14.7m to 90m
Jib: Up to 43mFixed lattice jib 8m to 43m; double swing-away jib 11.5m to 20m; both optional
Counterweight: 68 to 88 tonnes
Axle lines: 6

Download the Liebherr LTM 1300-6.3 spec sheet

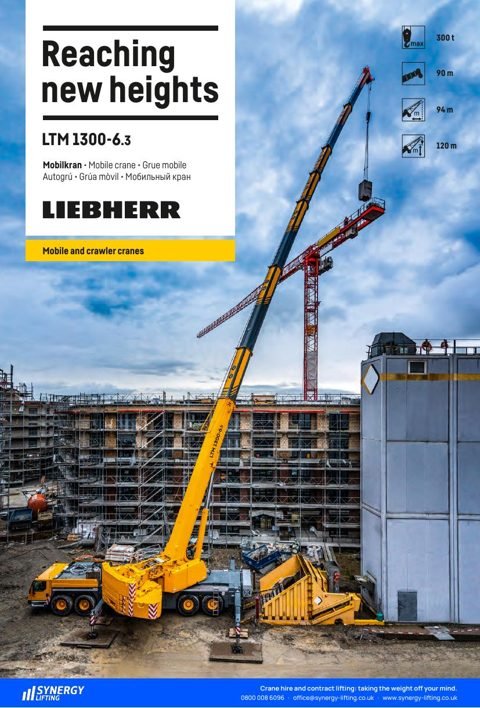

Liebherr LTM 1300-6.3 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 60 pages, 4.5MB.

Download the spec sheet

Specification

Item	Specification
Manufacturer	Liebherr
Model	LTM 1300-6.3
Type	All-terrain crane
Maximum capacity	300 tonnes at 3m radius
Main boom	14.7m to 90m, base section and 7 telescopic sections, TELEMATIK telescoping system
Jib	Optional double swing-away jib (K) 11.5m to 20m, mechanical offset 0, 20 or 40 degrees, or (NZK) hydraulic 0 to 40 degrees; optional fixed lattice jib (NZF) 8m to 43m, hydraulic adjustment 0 to 45 degrees; optional powerful jib (S) 4m to 39m; optional telescopic boom extension 2 x 7m
Counterweight	68 tonnes; up to 88 tonnes with the optional additional 20 tonnes; VarioBallast radius 4.94m or 5.94m
Outriggers	4-point, hydraulically telescoping horizontally and vertically, automatic levelling, electronic inclination indicator
Axle lines	6, all steered; 12 x 8 drive optional (additional drive of axle 4)
Tyres and width	12 tyres, 385/95 R25 standard; 445/95 R25 or 525/80 R25 optional
Suspension	Niveaumatik hydropneumatic, all axles, hydraulically lockable
Engine	Liebherr 8-cylinder diesel, 455kW (619hp), 3,067Nm; single engine, crane hydraulics driven mechanically from the carrier
Transmission	ZF automatic with torque converter and intarder, 12 forward and 2 reverse
Control and safety	Two self-centring joysticks, LICCON2 safe load indicator, test system, hoist limit switch, safety valves against pipe and hose ruptures
Ownership	Supplied. Our owned cranes are the electric pick and carry machines

Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
